Jaw Crusher 600x900
In the field of mining crushing, model names often directly reflect the core parameters of the equipment. In the PE-600×900 jaw crusher, "600" represents the feed opening width of 600 mm, and "900" represents the feed opening length of 900 mm. This specification is considered classic because it achieves a perfect balance between processing capacity, equipment investment cost, and applicability. It can efficiently process medium-sized rocks (such as granite and basalt), and its output is well-matched with subsequent medium crushing and screening equipment, making it an ideal primary crushing choice for building efficient mobile crushing plants or fixed production lines.
The PE-600×900 jaw crusher is a heavy-duty piece of equipment built based on mature jaw crushing technology. Its working principle is to crush large pieces of material to the required particle size through the periodic squeezing motion between the moving and fixed jaw plates.
Key Technical Parameters at a Glance
• Feed Inlet Size: 600mm x 900mm
• Maximum Feed Size: ≤ 500mm
• Discharge Inlet Adjustment Range: 65-160mm
• Processing Capacity: 50-180 tons/hour (depending on material properties and discharge settings)
• Spindle Speed: Approximately 250 rpm
• Motor Power: 55-75kW
This jaw crusher is renowned for its simple structure, convenient operation, and low maintenance costs, making it the preferred model for many mining equipment manufacturers.
Core Advantages: Why Choose Our 600x900 Jaw Crusher?
As a professional manufacturer of mobile mining crushing equipment, we have optimized and upgraded our classic model to better adapt to harsh working conditions and the needs of mobile crushing.
1. Superior Crushing Efficiency and High Output: Deep cavity crushing design, no dead zones, stronger feeding capacity, large crushing ratio, ensuring a stable high output of 50-180 tons per hour.
2. Exceptional Durability and Reliability: Key components (such as the moving jaw, bearings, and frame) are manufactured using high-quality, high-strength steel and special processes, capable of withstanding enormous impact loads and significantly extending equipment lifespan.
3. Convenient Maintenance and Adjustment: The discharge port uses a wedge adjustment device, which is simple, reliable, and has a wide adjustment range. The centralized lubrication system makes daily maintenance more convenient.
4. Excellent Mobility Adaptability: We have specifically optimized the structure for mobile crushing plant integration, making it easier to install on our heavy-duty mobile chassis while ensuring performance, enabling rapid relocation.
Application Case: Successful Practice Proves Our Strength

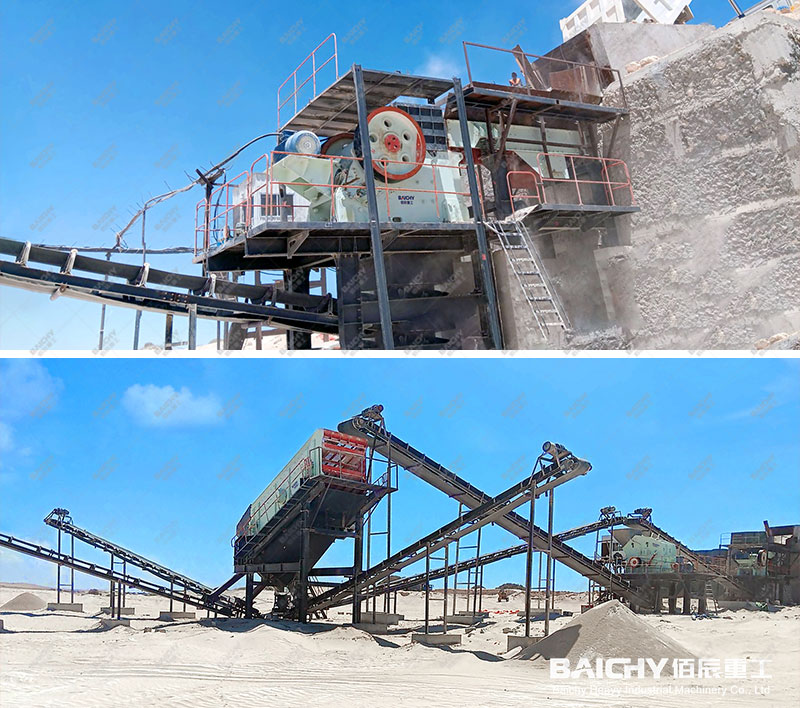

One of our mobile crushing plants, integrating a PE-600×900 jaw crusher, has been successfully applied in a large granite quarry.
• Customer Pain Points: Dispersed mining areas, high relocation costs for fixed production lines, and the need for equipment that can be quickly moved between different working faces.
• Our Solution: We provide a tracked mobile jaw crushing plant based on the PE-600×900 main unit.
• Results: The equipment can be put into production within one day of arrival, with an average output of 140 tons per hour. It crushes large granite blocks of 600-700mm into a mixed material of 0-150mm, perfectly meeting the customer's dual needs for flexibility and high efficiency. The low failure rate of this jaw crusher has won high praise from the customer.
Related Equipment Recommendations
Configuring suitable downstream equipment for the PE-600×900 jaw crusher can form a more efficient production line.
• Recommended Intermediate Crushing Equipment: Single-cylinder hydraulic cone crusher or multi-cylinder hydraulic cone crusher, used to further crush the material from the jaw crusher into smaller aggregates with better particle shape.
• Recommended Screening Equipment: Heavy-duty circular vibrating screen, used to classify the crushed material according to different specifications to obtain qualified finished products.
• Complete Solution: Contact us to obtain a complete mobile crushing production line solution consisting of a PE-600×900 jaw crusher station, a mobile cone crusher station, and a vibrating screen.
Frequently Asked Questions (FAQ)
Q1: What materials is the PE-600×900 jaw crusher best suited for crushing?
A: It is ideal for crushing various medium-hard and harder materials with a compressive strength not exceeding 320MPa, such as granite, basalt, river pebbles, and iron ore. For highly abrasive materials, it is recommended to use thickened or specially made jaw plates.
Q2: What are the vulnerable parts of the equipment? What is the replacement cycle?
A: The main vulnerable parts are the moving jaw plate and the fixed jaw plate. The replacement cycle depends on the abrasiveness of the material being crushed, generally ranging from several hundred to several thousand working hours. As a professional mining equipment manufacturer, we offer long-life jaw plate options.
Q3: Can this jaw crusher be integrated into a mobile crushing plant?
A: Absolutely. This is one of our core strengths. We can integrate the PE-600×900 jaw crusher, feeder, belt conveyor, etc., onto a tracked or wheeled chassis to create a complete, efficient, and flexible mobile jaw crushing plant, according to your specific needs.
About of Baichy Heavy Industry
Baichy Heavy Industry is a high-tech mining equipment company integrating R&D, manufacturing, sales, and after-sales service. Focusing on crushing, grinding, and mineral processing equipment, we provide professional solutions to our customers. We are ISO9001:2015 、certified, and our products include mobile crushing palnts, crawler crushing plant, construction waste crushing plants, jaw crushers, sand making machines, cone crushers, fine crushers, grinding mills, ball mills, etc., all with reliable performance to meet diverse project needs.
Our advantages:
• Professional pre-sales support: Free project design and comprehensive solutions to help you accurately select the right equipment;
• Comprehensive on-site service: Providing installation guidance and worker training to ensure smooth equipment commissioning;
• Reliable after-sales guarantee: A complete after-sales system, timely response to technical inquiries and equipment maintenance, ensuring long-term stable operation.
To protect your rights, please contact us through the following official channels for professional service:
Official Website Customer Service
WhatsApp: 0086-15093222637
Email: [email protected]
We are committed to providing high-quality equipment and full-cycle services to deliver comprehensive intelligent solutions for the global mining industry!
