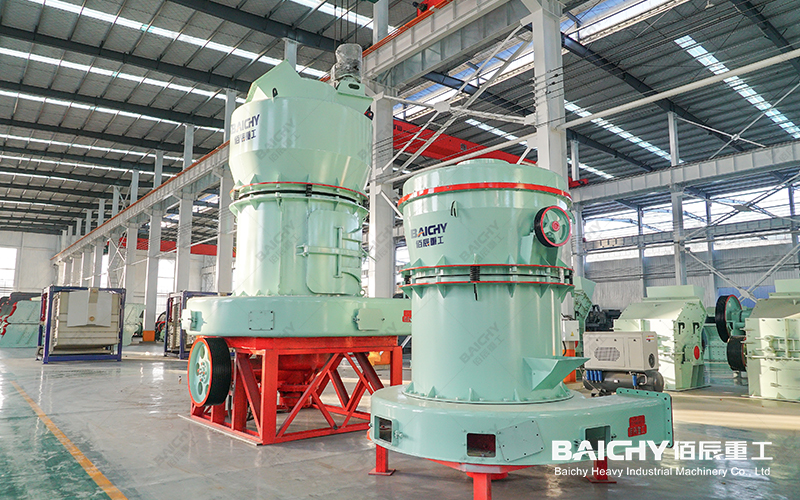

YGM Raymons Grinding Mill

In mining, building materials, chemical engineering, and other fields, the Raymond millis a classic choice for preparing powders with a fineness of 80-600 mesh. However, many customers, when initially planning, often believe that they only need to purchase a single main machine to start production. In fact, an efficient, stable, and environmentally friendly modern Raymond mill production line is a systematic engineering project, the result of multiple equipment units working together. As a manufacturer with twenty years of design and manufacturing experience, we will provide you with a complete breakdown of each key piece of equipment in this production line, helping you build an efficient and energy-saving powder grinding system.

YGM-grinding-mill-production-line

Overview of Core Equipment in a Raymond Mill Production Line

A complete Raymond mill production line typically consists of the following systems: feeding system, grinding system, classification system, collection system, dust removal system, and electrical control system. Here is a detailed analysis:

1. Feeding System: The stable and uniform feeding officer

• Core equipment: Electromagnetic vibrating feeder / Trough feeder

• Function: This is the starting point of the production line, responsible for continuously, uniformly, and quantitatively conveying block or granular materials from the raw material bin to the Raymond mill main machine. Stable feeding is the prerequisite for ensuring the stable operation of the mill, preventing blockages, and achieving a stable powder output rate. We usually match the most suitable feeding equipment for customers based on material characteristics and production capacity.

2. Grinding System: The heart of powder production

• Core equipment: Raymond mill main machine

• Function: This is the core of the entire production line. The main machine crushes and grinds the material through the rotation and compression of the grinding rollers on the grinding ring. The main machine contains key wear parts such as grinding rollers, grinding rings, shovels, and plum blossom frames. Twenty years of technological innovation have led to significant improvements in the transmission efficiency, grinding pressure, and stability of modern Raymond mills, effectively reducing operating energy consumption and wear costs.

3. Classification System: The gatekeeper of fine particle size

• Core equipment: Classifier (or separator)

• Function: The ground powder rises with the airflow to the classifier, which is a blade-type classification device driven by a variable-frequency motor. By adjusting the classifier speed, the fineness of the separated powder can be precisely controlled. The qualified fine powder passes through, while the unqualified coarse powder is thrown back into the grinding chamber by the blades for further grinding. This is the key equipment that determines the final particle size of the product.

4. Collection System: The collection bin for finished powder

• Core Equipment: Cyclone collector + Pulse dust collector

• Functions:

▪ Cyclone collector: Utilizes the principle of centrifugal force to separate and collect most of the finished powder from the airflow.  It is discharged through a bottom airlock valve (such as a rotary valve) and is the main finished product recovery device.

▪ Pulse dust collector (also known as a bag filter): Located after the cyclone collector, it collects the trace amounts of fine powder remaining in the air after cyclone separation, ensuring a high recovery rate of the finished product and achieving dust-free emissions to meet environmental requirements.

5. Power and Auxiliary Systems: The neural network of the production line

• Core Equipment: Main fan, piping, electrical control cabinet

• Functions:

▪ Main fan: Provides the circulating airflow for the entire system, acting as both the carrier for powder transport and influencing the grinding efficiency within the mill.

▪ Piping system: Connects various equipment to form a closed air circuit or negative pressure operating system.

▪ Electrical control system: The integrated electrical control cabinet centrally controls the feeder, main machine, fan, analyzer, etc., enabling one-button start/stop, interlocking protection, and remote monitoring. It is the brain of a modern production line, ensuring intelligent and safe operation.

Systematic design is the key to an excellent production line

Choosing a Raymond mill production line is not simply a matter of assembling inpidual machines. The capacity matching between equipment, pipe design, air network calculations, and the rationality of the dust removal scheme all profoundly affect the final production efficiency, energy consumption, and operating costs. This is the core value accumulated from our twenty years of experience – we not only provide high-quality inpidual equipment but also provide you with customized complete system solutions, from process design and equipment selection to installation and commissioning, ensuring that your investment yields maximum returns.

If you are planning a powder processing project, please feel free to contact us for professional technical consultation and solution design.
