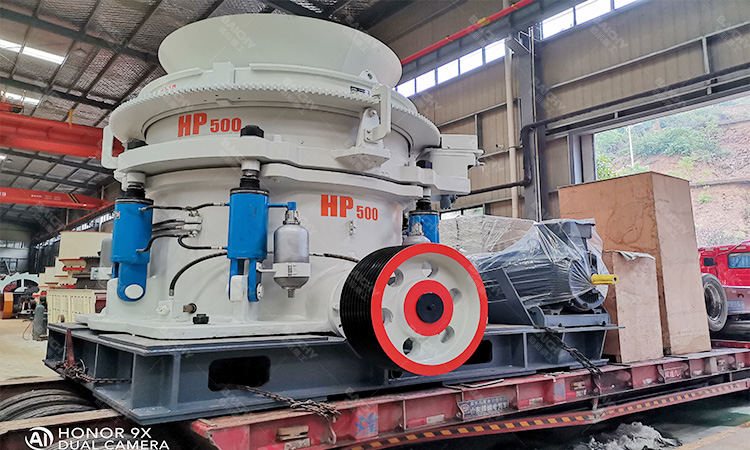

HP500 multi-cylinder hydraulic cone breaker sent to Russia

2023-07-09 10:32:30
Baichy
plays

HP500 multi-cylinder hydraulic cone crusher

Product Type: Multi-cylinder Hydraulic Cone Crusher

Product model: HP500

Production capacity: 180~790t/h

Feed particle size: ≤285mm

Discharge range: ≤25mm

Motor power: 355-450Kw

Applicable materials: granite, river pebbles, limestone, etc.

Application range: mines, sand and gravel plants, metallurgy, building materials, etc.




HP500 Cone crusher has four types of crushing chambers: coarse crushing, medium crushing, fine crushing, and super fine crushing. The production capacity is 180~790t/h. Different chamber types have different discharge opening sizes, and the superfine crushing cavity type has a minor discharge port. The production capacity is 180-430 tons per hour. The C1 cavity type has a larger particle size of the incoming and outgoing materials, and the production capacity is higher. The output can reach 790 tons per hour. It can crush granite, basalt, pebbles, and other medium and high-hardness rock materials.

Configuration scheme of HP500 multi-cylinder hydraulic cone crusher production line


Capacity (t/h)

Feed size (mm)

Device Configuration

400t/h

≤700mm

ZSW1149 Vibrating feeder

PE900x1200 Jaw Crusher

HP500 Cone Crusher

4YK2460 Vibrating Screen(2 set)

belt


Little knowledge of HP500 hydraulic cone crusher

The hydraulic system includes a hydraulic station, a locking cylinder, an iron release cylinder, an accumulator, and connecting oil pipes. Its functions are as follows:

1. Adjust the ore discharge port

The up-and-down position of the main shaft is adjusted by the hydraulic cylinder to change the distance between the movable cone and the outer cone liner, thereby adjusting the size of the ore discharge port.

2. Clean the crushing cavity

When the cone crusher suddenly stops under load, the hydraulic cavity cleaning system can quickly clean up the materials in the crushing cavity and reduce downtime.

3. Protect components from damage

When the phenomenon of iron passing or stuffy car occurs, the support sleeve and the fixed cone can be lifted out of the sundries through the hydraulic system, which plays a role in protecting the equipment.
