UAE Small-Scale Screening Plant Solutions | 3-4 Stage Material Classification
In various fields such as mining, building materials, and chemicals, the value of raw materials is often directly linked to their particle size and purity. Efficiently separating a single raw material into 3-4 different product specifications means you can obtain persified revenue from the same batch of materials, significantly improving overall profit margins. For many investors in the UAE and the Middle East, large-scale production lines have high investment thresholds, while a well-designed, compact, and quickly profitable small-scale screening and grading plant is becoming an ideal choice for seizing market segmentation opportunities. This article will delve into how to plan and achieve this goal.
Core Planning Elements of a Small-Scale Screening Plant
A successful small-scale screening project is far more than simply purchasing a vibrating screen. It requires a systematic approach, which we will analyze from the following three aspects.
1. The Cornerstone of Process Design: Defining Requirements Parameters
This is the starting point of all investments and must be clearly defined:
• Material characteristics: Is the material wet or dry? Is it corrosive or highly abrasive? This determines the equipment materials (such as manganese steel screen mesh, stainless steel contact parts) and whether pre-treatment such as drying or washing is needed.
• Input and output specifications: The maximum input particle size and the exact particle size range of the 3-4 finished products you expect to obtain. This directly determines the number of layers of the screening machine, the screen surface inclination, and the screen hole shape.
• Production capacity requirements: How many tons per hour need to be processed? This determines the width, power, and overall size of the equipment.
2. The Art of Equipment Selection: Stable, Efficient, and Durable
As a manufacturer with 20 years of experience, we understand that in the harsh environment of the UAE (high temperature, dusty), equipment reliability is paramount.
• Screening machine: We recommend using multi-layer linear vibrating screens or circular vibrating screens. They have stable motion trajectories, large processing capacity, and high screening efficiency. Key components such as the vibrating motor and bearing housing need to be heavy-duty designed to adapt to long-term continuous operation.
• Collaborative system: A complete system includes:
◦ Uniform feeding equipment: Prevents uneven load on the screen surface, protects the screen mesh, and improves screening accuracy.
◦ Enclosed conveying and discharge system: Reduces dust emission and meets environmental protection requirements. • Intelligent Electronic Control System: Integrated overload protection and remote start/stop for simple and safe operation.
• Customized Dust Removal Solutions: Standard or optional dust removal interfaces to ensure a clean working environment.
3. Optimized Investment and Layout: Achieving efficient and intensive production
• Footprint: A typical small-scale screening production line (including feeding, screening, and discharge) can have its main equipment footprint controlled within 80-150 square meters. Further space savings can be achieved through three-dimensional design (such as building a steel structure platform).
• Investment Components: Total investment mainly includes equipment purchase costs, international shipping costs (e.g., from China), UAE local customs duties and taxes, and foundation construction and installation and commissioning costs. Choosing a manufacturer that provides a one-stop service from "design-manufacturing-shipping-installation guidance" can greatly reduce your management costs and risks.
Our Core Advantages: Why Choose Our Solution?
1. 20 Years of Technological Expertise: We deeply understand the screening characteristics of various materials and can provide optimal screen surface motion parameters and equipment structure design for your specific raw materials, solving common problems such as clogging and material mixing.
2. Modular and Customized Combination: We offer standardized modules and can also provide flexible customization based on your specific site (such as factory height limitations) and product requirements, ensuring the system integrates into your production process in the best possible way.
3. Design Adapted to the Middle East Environment: The equipment's electrical components use high-temperature ratings, the lubrication system has enhanced sealing for dusty environments, and structural components are treated with reinforced anti-corrosion treatment to ensure long-term stable operation in the UAE climate.
4. Full-Cycle Cost Control: We not only focus on initial investment but also help you reduce operating and maintenance costs over decades by providing highly durable equipment, easily replaceable standardized parts, and clear maintenance instructions.

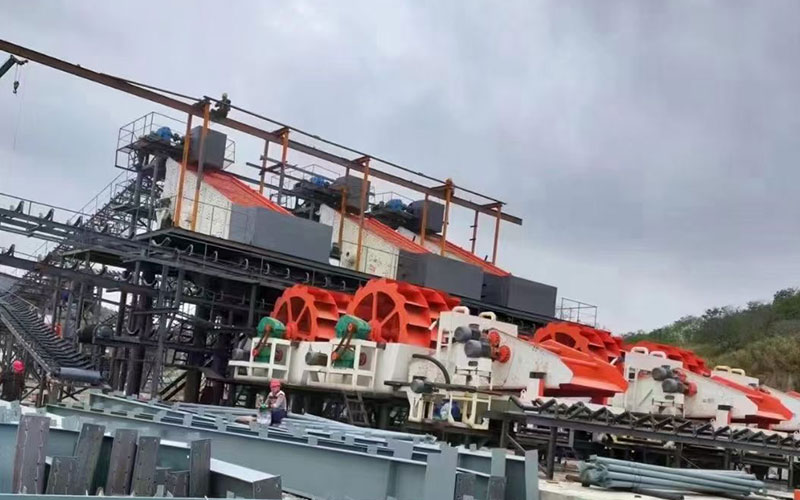

UAE Small-Scale Screening Plant Solutions | 3-4 Stage Material Classification
Successful Case Study: Screening Project for a Construction Materials Company in the UAE
• Customer Requirements: To separate purchased 0-25mm mixed sand and gravel into three products: 0-3mm (fine sand), 3-10mm (medium sand), and 10-25mm (coarse aggregate), with a processing capacity of 15 tons per hour. • Our Solution: We provided a compact production line consisting of a "hopper + feeder + three-layer linear vibrating screen + three discharge belt conveyors," integrated with a pulse dust removal system.
• Results: After installation at the factory near Jebel Ali in Dubai, the equipment achieved a screening efficiency of over 95%, and the product purity met the requirements for high-end building materials. The entire system occupies only about 120 square meters, the investment was within the client's budget, and the cost was recovered within 6 months through increased product value.
Related Equipment Recommendations
• ZKR Series Linear Vibrating Screen: Excellent for processing dry, granular materials, with high screening accuracy, suitable for multi-specification grading.
• YK Series Circular Vibrating Screen: Strong excitation force and large processing capacity, especially suitable for screening heavy, large-particle materials.
• Lightweight Enclosed Belt Conveyor: Used for conveying discharged products of various particle sizes, sealed and dustproof.
• Central Control Cabinet: Enables automated control of the entire system.
Frequently Asked Questions (FAQ)
Q1: How is after-sales service and maintenance guaranteed in the UAE when purchasing equipment from China?
A: We provide detailed installation instruction manuals, videos, and remote online support. For key wear parts (such as screens and shock-absorbing springs), we provide a recommended spare parts list, which you can purchase locally or quickly through us. We have partnered service engineers in the UAE who can provide paid on-site services to ensure timely response.
Q2: What are the approximate energy consumption and daily operating costs of the factory?
A: A small screening system with a capacity of 10-20 tons/hour typically has a total power consumption of 30-60kW, depending on the configuration. Operating costs mainly consist of electricity consumption and the regular replacement of wear parts such as screens. Our equipment's efficient design and low failure rate are designed to minimize your operating costs per unit of production.
Q3: If we want to expand capacity or increase the number of screening stages in the future, can this solution be expanded?
A: Absolutely. We consider future scalability during the initial design phase. For example, choosing slightly larger vibrating screens to accommodate increased feed rates in the future; reserving interfaces for electrical control; and leaving space in the layout for additional equipment. The modular design makes upgrades and expansions feasible and economical.
