Indonesia's booming infrastructure development has created an unprecedented demand for high-quality building aggregates. Andesite, a widely distributed, high-hardness, and highly abrasion-resistant rock, is an ideal raw material for producing high-quality aggregates, but it also poses extremely stringent challenges to crushing equipment. Achieving a production capacity of 400 tons per hour is not simply a matter of assembling equipment, but rather a precise match between rock characteristics and process requirements.
This article will delve into a proven, high-efficiency configuration—led by a PE760x1060 mobile jaw crusher and supported by an HPC300 mobile cone crusher—revealing how this combination has become the "golden combination" for conquering Indonesian andesite.
Act One: PE760x1060 Mobile Jaw Crusher Station
Any successful andesite crushing production line begins with a powerful primary crushing process. The PE760x1060 jaw crusher is designed precisely for this crucial task.
• Powerful primary crushing capacity: A massive 760x1060mm feed opening easily accommodates large andesite boulders. Its theoretical processing capacity of 500-600 tons/hour provides ample buffer space for a stable 400-ton/hour output, ensuring the production line is fully utilized.
• Exceptional reliability: Utilizing a heavy-duty frame and high-manganese steel jaw plates, it is specifically designed to handle the high abrasiveness of andesite. The optimized crushing chamber design not only improves crushing efficiency but also significantly extends the service life of wear parts, directly reducing operating costs.
• Strategic value of mobility: Integrating such a powerful jaw crusher onto a mobile chassis gives the entire project unparalleled flexibility. The equipment can directly penetrate deep into the mining area, realizing a revolutionary production model of "wherever the raw materials are, the factory is there," completely eliminating the need for expensive raw material transportation.
Act Two: HPC300 Mobile Cone Crusher
After primary crushing, the andesite material requires further fine processing to become qualified building aggregate. The HPC300 cone crusher plays an irreplaceable role in this process.
• Laminated Crushing, Excellent Particle Shape: The core advantage of the HPC series cone crusher lies in its laminated crushing principle. This is crucial for producing high-quality aggregates with low cubic and needle-like particle content. Excellent particle shape translates to higher aggregate bulk density and strength, fully meeting the standards for high-end construction aggregates.
• High Efficiency and Stability, Guaranteed Capacity: The HPC300 model is a star product in medium-sized production lines. Its processing capacity perfectly complements PE760x1060, stably crushing materials from the upstream source to the target particle size (e.g., 0-40mm), ensuring the successful achievement of the 400-ton-per-hour target. The advanced hydraulic system allows for automatic adjustment of the discharge port and overload protection, ensuring stable and reliable operation.
• Intelligent Control, Controllable Costs: Modern cone crushers integrate an intelligent control system that monitors key parameters such as spindle position and load status in real time, achieving optimized operation and finding the best balance between high output and low wear.
Act Three: The Combined Advantages of 1+1>2 and the Overall Process
Combining the PE760x1060 mobile jaw crusher with the HPC300 mobile cone crusher is not simply a matter of adding equipment; rather, it creates a highly efficient and flexible crushing and screening system.

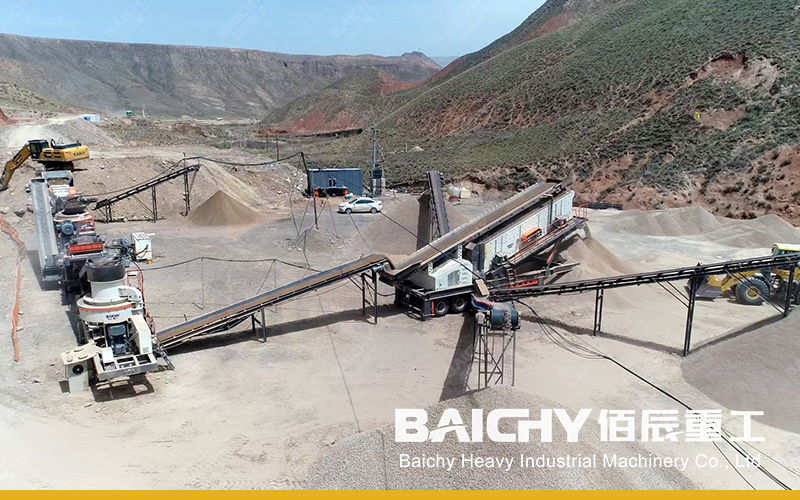

Typical Workflow:
1. Feeding and Primary Crushing: An excavator feeds andesite ore into the feeder of the PE760x1060 mobile jaw crusher. After pre-screening, large pieces of raw material are crushed to a medium particle size (approximately 150-200mm or less) by the jaw crusher.
2. Transfer and Fine Crushing: The crushed material is conveyed via belt conveyor to the HPC300 mobile cone crusher for medium and fine crushing. By adjusting the discharge port, the cone crusher can produce finished aggregates of various specifications.
3. Screening and Grading: The material from the cone crusher enters the matching mobile vibrating screen for grading. Qualified aggregates are perted to different finished product stockpiles, while oversized materials are returned to the cone crusher via a return conveyor belt for closed-loop crushing, ensuring a 100% finished product yield.
Core Combination Advantages:
• Extreme Flexibility: Both machines can be moved independently, facilitating easy relocation and adapting to the advancement of the mining face. Layout adjustments are effortless.
• Maximized Efficiency: Dedicated machines perform specific functions, coarse crushing, and fine crushing, avoiding the efficiency bottlenecks and excessive wear caused by a single machine trying to handle everything.
• Clear Return on Investment: This modular combination reduces initial investment risk. Because each machine is optimized for its specific crushing stage, overall energy consumption and wear part costs are effectively controlled, resulting in a shorter return on investment period.
Faced with the enormous market opportunities in Indonesia, choosing a scientifically proven mobile crushing solution like the PE760x1060 + HPC300 means choosing not only equipment, but also a sustainable production model that ensures high capacity, low operating costs, and adaptability to future project changes. It represents one of the optimal solutions for current fracturing technologies to address the challenges of hard rock.
