Output 1t/h Dry-type 0.75-1.2 Magnetic Separator To Get The Iron From Inside The Tailing

2024-10-11 15:10:47
Baichy
plays
Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

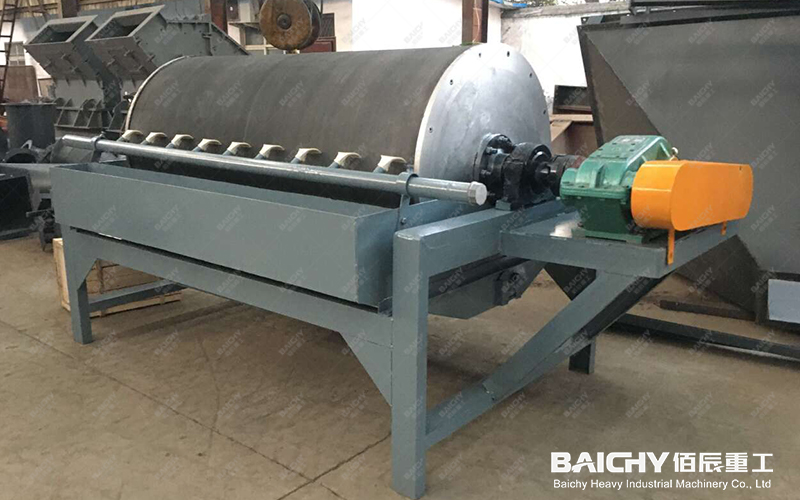

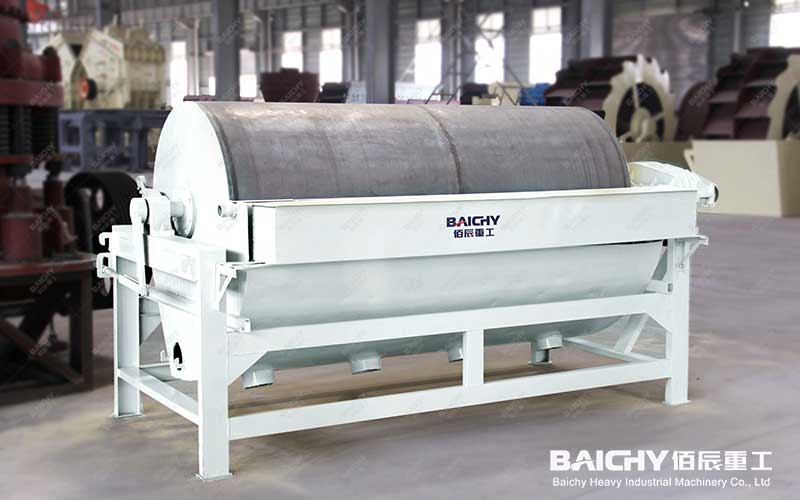

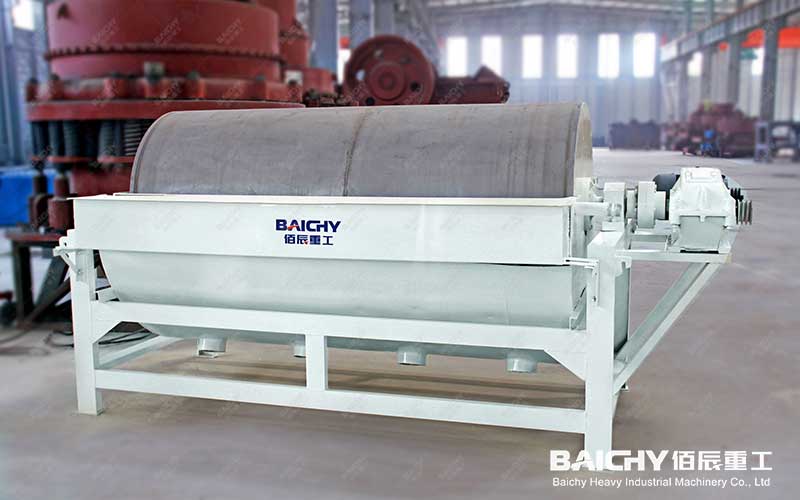

Dry magnetic separator is a magnetic separation machine for separating dry magnetic minerals. It uses the magnetic difference between minerals for separation, without the need to use liquid as a diluent, and is suitable for separating large, coarse-grained strong magnetic ores and fine-grained weak magnetic ores.


For a dry magnetic separator with a production of 1t/h and a magnetic field strength between 0.75-1.2T, you need to choose a device suitable for iron separation in tailings.

1. Equipment type: Choose a dry magnetic separator because tailings are usually dry and dry magnetic separators do not require water resources, which is more environmentally friendly and economical.
2. Magnetic field strength: Ensure that the magnetic field strength of the magnetic separator is between 0.75-1.2T to meet the separation requirements for iron.
3. Processing capacity: The processing capacity of the equipment should meet the production requirements of 1t/h.



Working principle of dry magnetic separator


The working principle of a dry magnetic separator is based on the magnetic difference of minerals. When the tailings pass through the magnetic separator, magnetic minerals (such as iron) are affected by the magnetic field and adsorbed on the surface of the cylinder of the magnetic separator. As the cylinder rotates, the magnetic minerals are brought to the edge of the magnetic system where the magnetic force is weaker, and then unloaded by the unloading device, thereby achieving the separation of iron.



1. Recommended equipment selection for magnetic separators

• Recommended models: dry permanent magnetic drum magnetic separator (CTDG series) or dry strong magnetic roller separator.

• Magnetic field strength: 0.75-1.2T (adjustable), suitable for the recovery of weak magnetism (hematite) to strong magnetism (magnetite).

• Processing capacity: Select a model with a processing capacity of 1-1.5t/h (reserve a 20% margin to avoid blockage).

• Key components: NdFeB permanent magnetic system or electromagnetic magnetic system (high gradient), wear-resistant stainless steel separation drum.



2. Process parameter optimization

• Feed particle size: control the tailings particle size to 0.1-3mm (too coarse to be crushed, too fine to easily generate dust).

• Separation layer thickness: ≤10mm (to ensure magnetic field penetration).

​​​​• Drum speed: 20-50r/min (adjustable, the lower the speed, the longer the magnetic adsorption time).

​​​​• Sorting times: 2-3 levels of series sorting are recommended to improve the recovery rate.






3. Tailings characteristic pretreatment

​​• Drying: The moisture content needs to be less than 3% (wet materials are easy to adhere, affecting the sorting), and a dryer can be installed.

​​​​• Impurity removal: Pre-screen gravel > 5mm (to avoid abrasive equipment).

​​​​• Mineral pulping (optional): If the tailings are too fine (such as -200 mesh accounts for more than 80%), wet high-gradient magnetic separation can be considered (the process needs to be adjusted).



4. Supporting equipment

​​• Feeding system: electromagnetic vibrating feeder (uniform feeding) + buffer silo.

​​​​• Dust removal system: pulse bag dust collector (processing capacity ≥ 2000m³/h) to prevent dust pollution.

​​​​• Conveying system: belt conveyor (non-magnetic products) + magnetic material collection bucket.



5. Economic and efficiency evaluation

​​• Recovery rate: Magnetic iron ore (magnetite) can reach 90-95%, weak magnetic ore (hematite) is about 60-75%.

​​​​• Power consumption: The whole machine power is about 5.5- 7.5 kW (including fan and conveyor).

​​​​• Cost: Domestic equipment is about 80,000-150,000 yuan, and imported equipment (such as Eriez) is more than 200,000 yuan.
