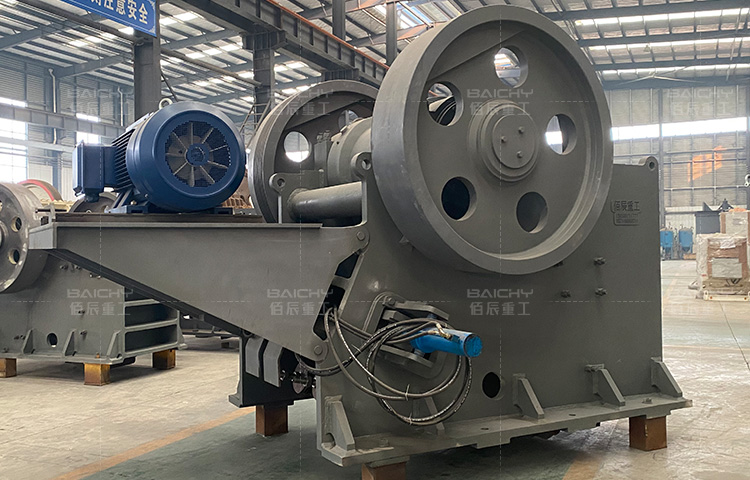

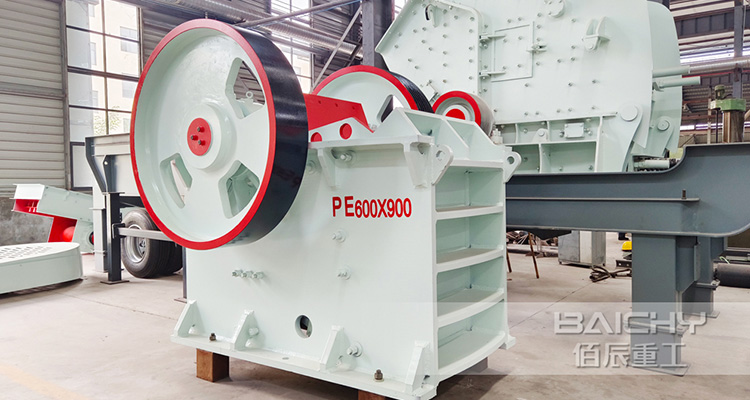

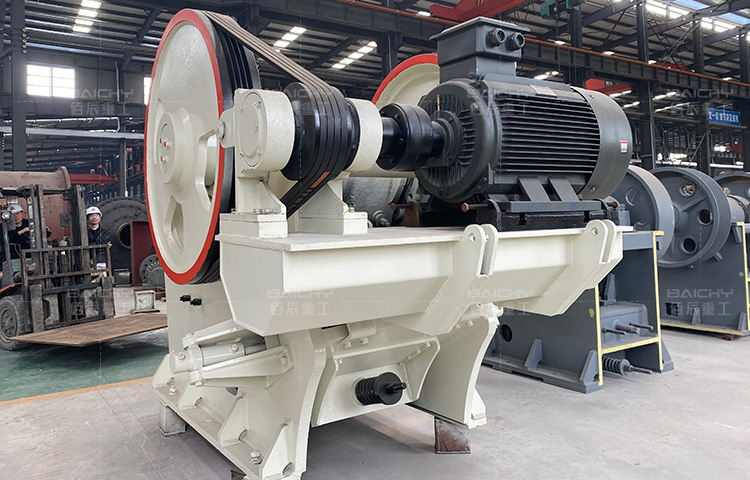

PE600x900 Jaw Crusher
A granite crushing plant in Southeast Asia previously suffered significant losses due to improper equipment selection—specifically, the use of a small jaw crusher to process feed material with particle sizes reaching up to 500 mm. This resulted in equipment downtime of three days per month due to overloading, leading to a monthly production loss of 750 tons and direct economic losses exceeding $17,670.
After upgrading to the Baichy PE600×900 Jaw Crusher, monthly equipment downtime was reduced to less than 0.5 days, thereby saving approximately $18,580 in annual operating costs.
1. Key Parameters and Their Translation into Customer Benefits (ISO9001 Certified)
| Equipment Parameters | Direct Customer Benefits | Calculation Basis (Southeast Asia Project) |
| Feed Opening Size: 600×900 mm | Accommodates hard materials with particle sizes ≤500 mm; eliminates the need for secondary pre-crushing | Granite feed particle size: 450–500 mm (can be fed directly) |
| Processing Capacity: 50–80 t/h | Satisfies the daily production requirements (750–1,200 tons) of small to medium-sized sand and aggregate yards | Actual operating capacity consistently maintained at 75 t/h (based on a 12-hour shift) |
| Unit Energy Consumption: 11 kWh/ton | 12% lower than the regional average; saves approximately $12,080 in annual electricity costs | Compared against competing equipment of the same specifications (energy consumption: 12.5 kWh/ton) |
| Jaw Plate Lifespan: 6 months | Reduces annual downtime caused by spare parts replacement by 15 days; saves a total of approximately $9,430 in labor costs and production losses | Competitors' jaw plates last only 3.5 months, requiring replacement three times per year |
2. PE600×900 Jaw Crusher: Detailed Configuration Options
Price Range: $27,000 – $42,000
• Standard Edition ($27,000–$42,000): Standard jaw plates + Standard motor + Manual lubrication system. Suitable for fixed-site installations and scenarios where maintenance frequency requirements are relatively low. This configuration was adopted during the initial phase of a project in Southeast Asia, recovering 65% of the investment costs within just six months.
• Premium Edition ($36,800–$41,200): Wear-resistant alloy jaw plates + High-efficiency, energy-saving motor (IE3) + Automatic lubrication system + Remote monitoring system. This version can further reduce annual wear-part costs by 40% and lower the rate of unexpected downtime by 80% through remote fault alerts; it is ideally suited for large-scale sand and aggregate projects requiring continuous 24-hour operation.

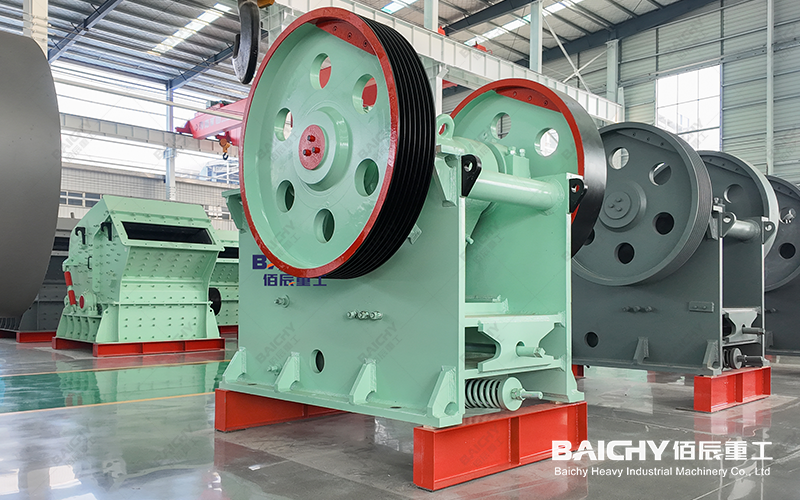

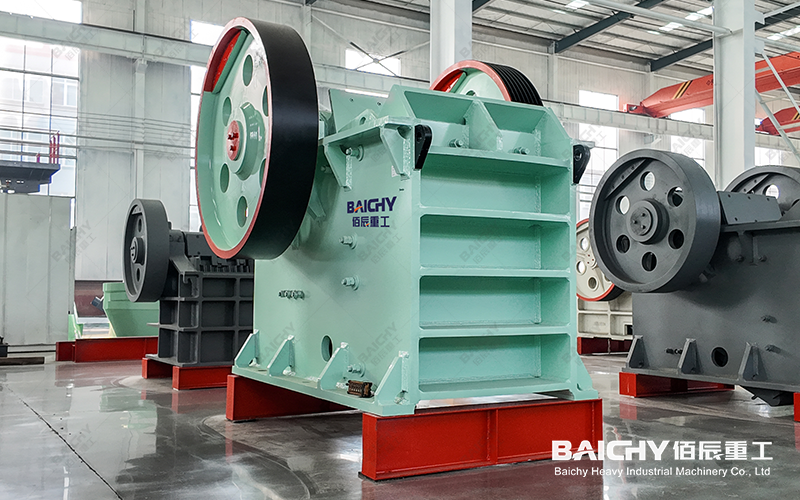

PE600x900 Jaw Crusher
3. Actual Performance Data for a Granite Project (Jan–Jun 2025)
• Total Investment: $33,600 (Standard Edition equipment + Basic installation services)
• Average Monthly Output: 27,000 tons
• Average Monthly Operating Costs: Electricity $2,920 + Wear parts $1,250 = $4,170
• Average Monthly Net Profit: $10,570 (Calculated based on a local aggregate selling price of $5.60/ton, after deducting raw material and labor costs)
• Investment Payback Period: Approx. 8.5 months (Including time for equipment installation and commissioning)

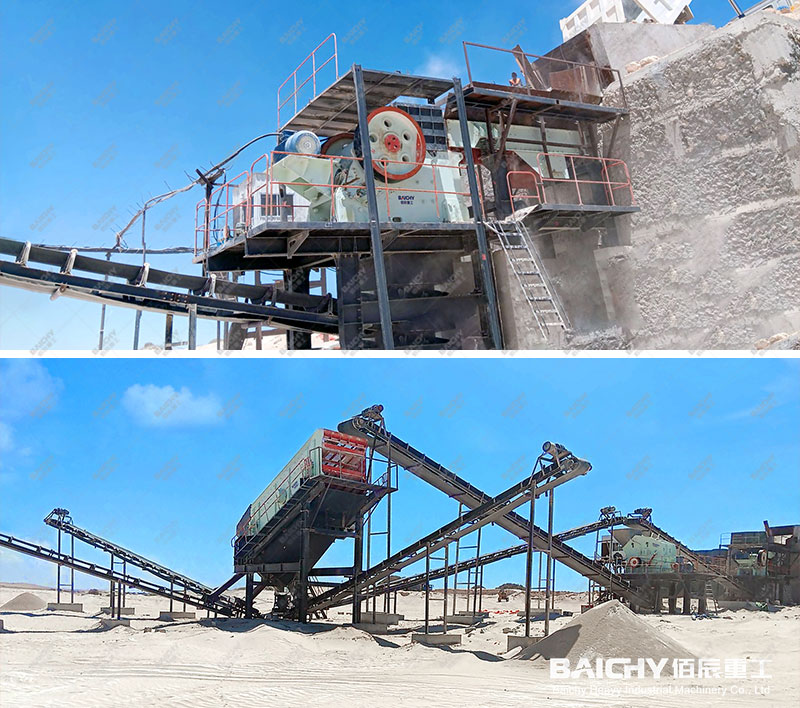

PE600x900 Jaw Crusher: Limestone Crushing Site
Commercial & Technical FAQ
Q1: What accounts for the price difference within the $27,000–$41,200 range for the PE600×900 Jaw Crusher?
A1: The core differences lie in the jaw plate material (standard high-manganese steel vs. wear-resistant alloy), the motor's energy efficiency rating (IE2 vs. IE3), and the operating system (manual lubrication vs. automatic lubrication + remote monitoring). The Premium Edition can reduce annual wear-part costs by 40% and lower the probability of unexpected downtime by 80%.
Q2: What types of materials is the PE600×900 Jaw Crusher suitable for crushing?
A2: It is suitable for materials with a compressive strength of ≤160 MPa, including granite, basalt, limestone, iron ore, and others. In projects located in Southeast Asia, the crushed granite output features uniform particle size distribution and is ≤120 mm, fully meeting the feed requirements for secondary crushing stages.
Q3: What services are included when purchasing the Baichy PE600×900 Jaw Crusher?
A3: The standard package includes free on-site installation and commissioning, as well as a 12-month warranty on core components. The premium package offers additional benefits, including one year of free remote operation and maintenance support, as well as complimentary labor for the first replacement of the jaw plates.
Q4: How is the investment payback period calculated?
A4: Payback Period = Total Equipment Investment &pide; (Average Monthly Output × Profit per Ton – Average Monthly Operating Costs). Based on projects in Southeast Asia, the profit per ton of material is approximately $2.65, resulting in an average monthly net profit of $10,570; therefore, the entire investment can be recouped in approximately 8.5 months.
Q5: What advantages does this product offer compared to similar competing models?
A5: It features a 12% reduction in energy consumption per unit of output and a 71% extension in the service life of the jaw plates, resulting in annual operating cost savings of approximately $18,580. All performance parameters are substantiated by ISO9001 certification and actual field test data—ensuring there is absolutely no exaggerated marketing.
