Capacity of 150-180tph aggregate crushing line, Jaw & Cone Crushing Plant for hard stone

2024-06-03 18:24:52
Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

Capacity of 150-180tph aggregate crushing line,  Jaw & C


For aggregate crushing lines with a capacity of 150-180 tons/hour and the demand for hard stone crushing, the following is an analysis of the applicability of jaw and cone crushing equipment:

1. Jaw crusher
Scope of application: Jaw crushers are widely used in mining, building materials, the chemical industry, metallurgy, and other industries, and are particularly suitable for coarse and medium crushing of various ores, rocks, and other materials with a compressive strength of no more than 320MPa. For hard stone crushing, the jaw crusher can effectively handle high-hardness stones with its powerful crushing capacity.

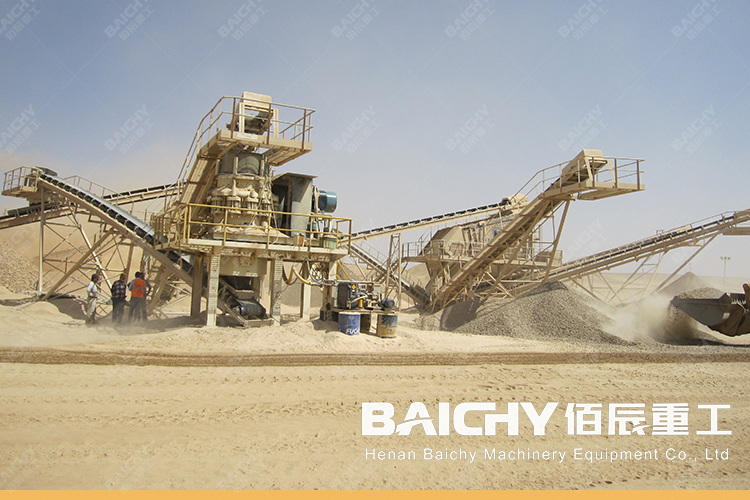

capacity 150-180tph aggregate crushing line - jaw
Features of jaw crusher equipment:
The crushing method is the curved extrusion type, and the material is crushed by two wear-resistant jaw plates.
The crushing ratio is large, the material particle size is uniform, the adjustment is simple, and the material connection is convenient.
The fully sealed design reduces dust leakage and meets environmental protection requirements.
Advanced structure, reasonable design, stable operation, low vibration and low noise.
2. Cone Crusher
Scope of application: Cone crushers are widely used in many sectors such as mining, smelting, building materials, highways, railways, water conservancy and chemical industries, and are particularly suitable for medium and fine crushing of various ores and rocks. For hard stone crushing, cone crushers can cope with hard materials with a compressive strength of less than 350MPa.
capacity 150-180tph aggregate crushing line - cone crusher.j
Features of cone crusher equipment:
Large crushing ratio, high efficiency, low energy consumption, and uniform product particle size.
Equipped with a PLC+touch screen automatic control system, it is convenient for remote operation and real-time display of working status.
The hydraulic cylinder presses the connection between the support sleeve and the frame, which has the functions of adjusting the discharge port, protecting the iron, repeatedly lifting, and eliminating mine blockage, reducing equipment failure rate, and improving operation stability.
The processing is based on the principle of layered crushing, with strong crushing capacity, less needle-shaped material content, a deep crushing chamber, and sufficient material crushing.
For aggregate crushing lines with a capacity of 150-180 tons/hour and the crushing needs of hard stones, jaw crushers, and cone crushers are both suitable choices. Jaw crushers are suitable for coarse and medium crushing, while cone crushers are better at medium and fine crushing. When choosing, you can make comprehensive considerations based on specific production needs, material characteristics, budget, and other factors. If the material hardness is high, you can give priority to cone crushers; if you need to process larger pieces of material, you can use a jaw crusher for coarse crushing first, and then a cone crusher for fine crushing.
stone crusher manufacturers.jpg

Baichy Machinery is a factory supplier of mining machinery, mainly focusing on stone crushers, powder grinding mills, and mineral beneficiation plants. We can offer you a free design and completed solutions according to your project.


Baichy Heavy Industry has grown into a high-tech mining equipment comprehensive enterprise, integrating R&D, manufacturing, sales, and after-sales service, Passing ISO9001:2015 quality management system certifications. The main products are mobile jaw crushing plants, construction waste crushing plants, PE jaw crushers, VSI sand-making machines, Symons cone crushers, single-cylinder hydraulic cone crushers, PCX high-fine crushers, grinding mills, ball mills, and full sets of beneficiation equipment with an excellent level.
