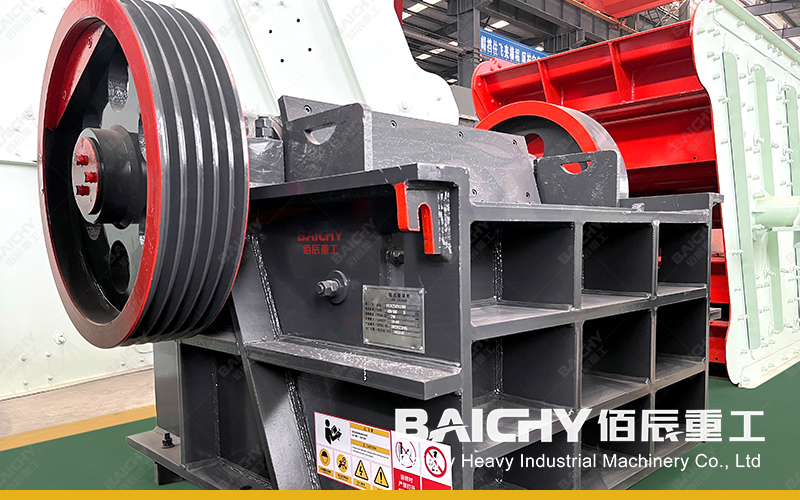

PEX250x1200 Jaw Crusher
When quarry and sand-and-gravel producers feed hard, rounded river pebble and cobble into a crushing line, the machine that takes the first hit decides whether the whole plant stays profitable. The PEX250x1200 jaw crusher is Baichy Heavy Industry's answer to that challenge: a long-stroke, deep-cavity jaw crusher built for continuous primary (and secondary) reduction of abrasive stone. In this guide we cover what the PEX250x1200 jaw crusher does, how it works, its key specifications, and why buyers around the world specify it for pebble crushing.
Why the PEX250x1200 Jaw Crusher Is the Right Primary Crusher for Pebble
River pebble is notoriously hard and abrasive. Its rounded shape, high silica content and sharp wear behavior quickly destroy weak crushers. The PEX250x1200 jaw crusher is designed specifically for this duty:
Deep Crushing Cavity, No Dead Zone
The PEX250x1200 jaw crusher uses an optimized symmetric crushing cavity that holds more rock per stroke. Unlike shallow-cavity small jaw crushers, the PEX250x1200 jaw crusher accepts larger cobbles and moves material downward without blocking.
Long Stroke and High Reduction Ratio
The PEX series fine jaw crusher delivers a longer nip stroke than standard PE models. That means the PEX250x1200 jaw crusher produces a finer, more cubical product on the first pass, reducing the load on downstream cone or VSI crushers.
Heavy-Duty Frame and Manganese Steel Jaw Plates
The PEX250x1200 jaw crusher sits on a welded, reinforced frame that resists the shock of hard cobble. Its jaw plates are cast from high-manganese steel (Mn13Cr2 / Mn18Cr2), so the PEX250x1200 jaw crusher keeps its throughput even as wear progresses.

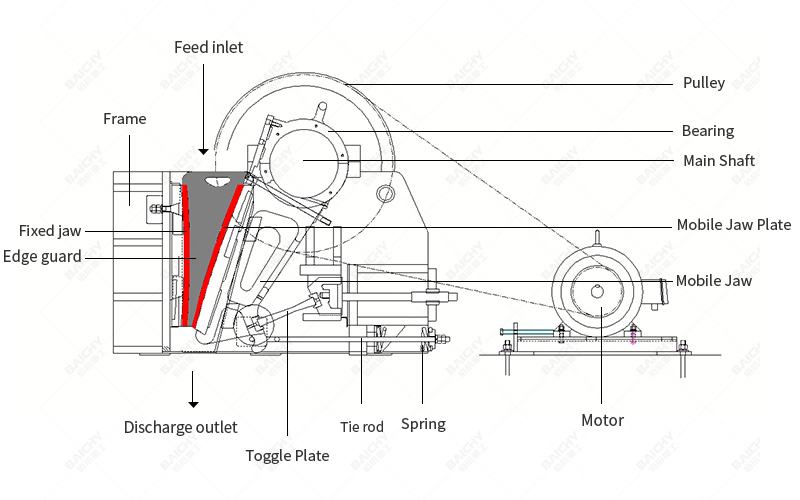

Structural diagram of the PEX fine jaw crusher
How the PEX250x1200 Jaw Crusher Works
Inside the PEX250x1200 jaw crusher, an eccentric shaft drives the movable jaw in a reciprocating motion. As the wheel and flywheel turn, the movable jaw moves toward the fixed jaw, crushing pebble by compression; on the return stroke, crushed material falls through the adjustable discharge gap. The PEX250x1200 jaw crusher's toggle plates protect the machine from uncrushable metal by breaking before the frame suffers damage, and the spring release prevents tramp-metal damage.
This simple, proven mechanism is why the PEX250x1200 jaw crusher remains the favorite primary crusher for small-to-medium pebble quarries, construction waste recycling, and mineral processing plants.
PEX250x1200 Jaw Crusher Technical Specifications
| Parameter | PEX250x1200 Jaw Crusher |
|---|---|
| Model | PEX-250×1200 |
| Feed opening (mm) | 250 × 1200 |
| Max feeding size (mm) | ≤210 |
| Discharge opening range (mm) | 25–60 |
| Capacity (t/h) | 8–35 |
| Eccentric shaft speed (r/min) | 330 |
| Main motor power (kW) | 30–37 |
| Voltage | 380V / 50Hz (customizable) |
| Weight (t) | ~7.8 |
| Overall dimensions L×W×H (mm) | ~2200 × 1860 × 1660 |
| Applicable materials | River pebble, cobble, granite, basalt, limestone, iron ore |
Exact values depend on discharge setting, material density and motor configuration; Baichy confirms the final PEX250x1200 jaw crusher data sheet with each order.
Performance Advantages of the PEX250x1200 Jaw Crusher
High Throughput at Low Energy Cost
Thanks to the long stroke and steep nip angle, the PEX250x1200 jaw crusher moves more tons per kilowatt-hour than comparable small jaw crushers. For a pebble plant running two shifts, the PEX250x1200 jaw crusher's low specific energy directly lowers the electricity bill.
Adjustable Discharge for Aggregate Shaping
Changing the discharge setting on the PEX250x1200 jaw crusher only requires shim adjustment, so operators can switch from 25 mm road base to 60 mm coarse aggregate without stopping the line for long. This flexibility makes the PEX250x1200 jaw crusher ideal for plants that sell several aggregate grades.
Cubical Product Shape
A balanced throw on the PEX250x1200 jaw crusher fractures pebble along natural cleavage planes, producing cubical grains that meet concrete and asphalt specifications. Buyers often report that the PEX250x1200 jaw crusher cuts the need for a secondary crusher on small projects.
Easy Maintenance and Spare Parts
Baichy stocks Mn13/Mn18 jaw plates, toggle plates, bearings and side liners for the PEX250x1200 jaw crusher. Lubrication points are grouped, so routine service on the PEX250x1200 jaw crusher takes minutes rather than hours.

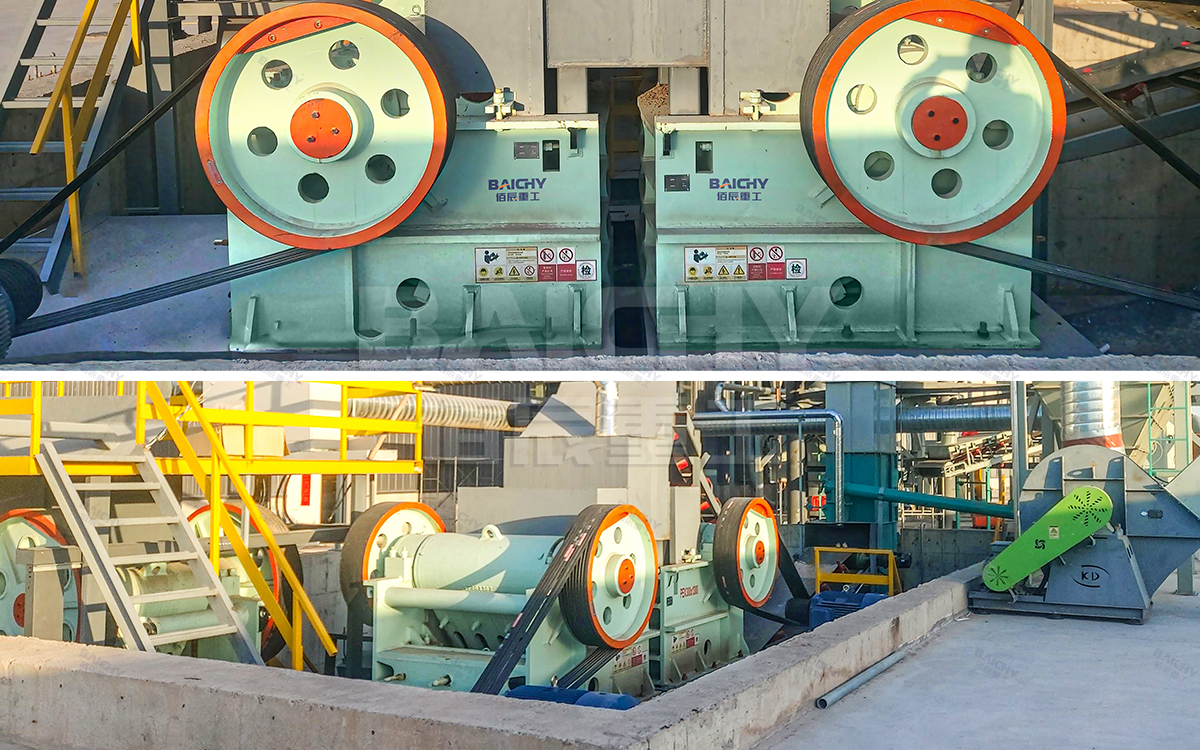

Customer site featuring the PEX fine-crushing jaw crusher
Applications Beyond Pebble
Although the PEX250x1200 jaw crusher is famous as a pebble primary crusher, its long list of applications also includes:
Secondary crushing after a PE jaw crusher in granite and basalt circuits;
• Sand and gravel preparation for ready-mix concrete;
• Iron ore, gold ore and copper ore preliminary reduction;
• Construction demolition waste and recycled concrete crushing;
• Coal, coke and shale crushing for small mining operations.
Whatever the feed, the PEX250x1200 jaw crusher adapts through its adjustable discharge and robust wear package.
Operating and Maintenance Tips for the PEX250x1200 Jaw Crusher
• Start empty. Never start the PEX250x1200 jaw crusher under load; the feeder should begin only after the crusher reaches running speed.
• Keep the feed even. Choke-feeding the PEX250x1200 jaw crusher improves throughput but bridging large cobbles causes shock loading.
• Check the toggle and spring. Inspect the toggle plate and tension spring on the PEX250x1200 jaw crusher weekly, and replace them at the first sign of fatigue.
• Monitor bearing temperature. The PEX250x1200 jaw crusher should run below 70 °C; rising temperature usually points to lubrication or bearing wear.
• Flip the jaw plates. When one edge wears, reversing the jaw plates on the PEX250x1200 jaw crusher nearly doubles their service life.
Why Buy the PEX250x1200 Jaw Crusher from Baichy Heavy Industry
Baichy Heavy Industry is a Chinese manufacturer specializing in mining crushing, ore grinding and mineral processing equipment. Every PEX250x1200 jaw crusher leaves our workshop after stress-relieved frame welding, dynamic balance of the flywheel, and a no-load test run under load simulation. We supply the PEX250x1200 jaw crusher as a standalone machine or as part of a complete pebble crushing plant with vibrating feeder, belt conveyor, circular vibrating screen and optional dust removal.
Our engineers help buyers size the PEX250x1200 jaw crusher against their feed size, target output and power supply, and we support overseas installation, commissioning and long-distance spare-parts shipping.
FAQs About the PEX250x1200 Jaw Crusher
Q1. What is the maximum feed size for the PEX250x1200 jaw crusher?
A1. The PEX250x1200 jaw crusher accepts feed up to about 210 mm. River cobbles larger than this should be prescreened or broken by a larger PE jaw crusher before entering the PEX250x1200 jaw crusher.
Q2. How much capacity does the PEX250x1200 jaw crusher deliver?
A2. With a 25–60 mm discharge setting, the PEX250x1200 jaw crusher produces roughly 8–35 tons per hour, depending on pebble hardness, moisture and the selected gap.
Q3. Is the PEX250x1200 jaw crusher suitable as a secondary crusher?
A3. Yes. The PEX250x1200 jaw crusher is a PEX-series fine jaw crusher, so it is widely used as a secondary crusher after a large PE jaw crusher, especially in pebble and granite circuits.
Q4. What motor power does the PEX250x1200 jaw crusher need?
A4. The PEX250x1200 jaw crusher is typically driven by a 30–37 kW motor, with voltage and frequency customized to the customer's local grid.
Q5. How can I get the PEX250x1200 jaw crusher price and lead time?
A5. Send Baichy your feed size, required output and final product size. Our engineers will quote the PEX250x1200 jaw crusher with foundation drawings, motor and wear-parts package within one working day.
