The 300 t/h granite crushing plant is a production facility dedicated to granite crushing and processing, with a designed capacity of 300 tons of granite per hour. The production line covers the complete process from raw material input to finished product output, including coarse crushing, medium and fine crushing, screening, and conveying.
Stone Crushing Plant PDF, Download ↓↓↓
1. Main equipment configuration
Coarse crushing equipment:
Equipment type: jaw crusher
Model example: PE900x1200 jaw crusher (or similar models)
Features: simple structure, easy maintenance, uniform discharge, suitable for primary crushing of hard stones such as granite.
Medium and fine crushing equipment:
Equipment type: cone crusher or impact crusher
Model example: HP300 (cone crusher) or PF1315 (impact crusher)
Features: efficient, easy to operate, suitable for medium and fine crushing operations, and can adjust a variety of crushed stone specifications.
Screening equipment:

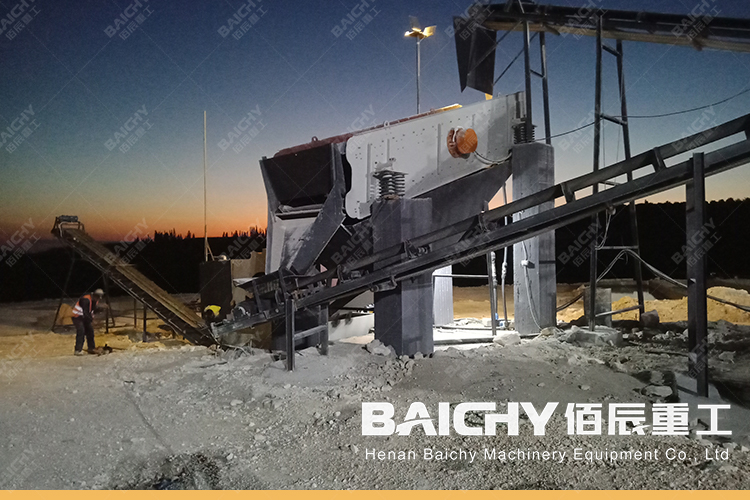

Equipment type: circular vibrating screen
Model example: select according to actual needs
Function: screen the crushed granite to separate the finished materials that meet the requirements and the materials that need to be crushed again.
Conveying equipment:
Equipment type: belt conveyor
Function: Connect various levels of crushing equipment and screening equipment to achieve efficient and continuous conveying of materials.
2. Production process
Raw material input: Large pieces of granite are evenly fed into the jaw crusher through a vibrating feeder for coarse crushing.
Coarse crushing: After the jaw crusher crushes the raw material to a certain particle size, it is sent to the medium and fine crushing equipment through a belt conveyor.
Medium and fine crushing: The cone crusher or impact crusher performs medium and fine crushing on the coarsely crushed granite to achieve the required particle size.
Screening: The medium and finely crushed granite is screened through a circular vibrating screen to obtain finished materials of different particle sizes and materials that need to be crushed again.
Finished product output: The finished products that meet the requirements are sent to the finished product pile or directly to the next process through a belt conveyor.
3. Performance characteristics
High efficiency: The production line has a high degree of automation and high crushing efficiency, which can meet the needs of large-scale production.
Stability: The equipment has a solid structure, stable operation, and low failure rate, ensuring the continuity of the production process.
Flexibility: Equipment configuration and production process can be adjusted according to customer needs and actual conditions to meet different production needs.
Energy saving and environmental protection: The production line adopts advanced technology and equipment to reduce energy consumption and emissions and meet environmental protection requirements.
