Facing the growing demand from infrastructure construction and mining development, the key to winning the market lies in efficiently and economically converting abundant local stone resources into high-quality aggregates and sand that meet standards. We offer a complete crushing and screening production line solution that is technologically mature, rationally configured, and stably operated, designed to maximize your return on investment and contribute to the success of your project.
Production Line Core Configuration and Advantages
This production line is specifically designed for medium-to-high hardness rocks (such as granite, basalt, and river pebbles). With a smooth process and matched capacity, it is the ideal choice for building a modern quarry or engineering project.
1. Vibrating Feeder (ZSW2500×750) - Stable Feeding, High-Efficiency Primary Screening
• Function: Evenly and continuously feeds raw materials into the jaw crusher, while simultaneously separating soil and fine materials through the grid bars, improving subsequent crushing efficiency.
• Your Benefits: Prevents jaw crusher blockage, protects equipment, and improves overall processing capacity from the source.

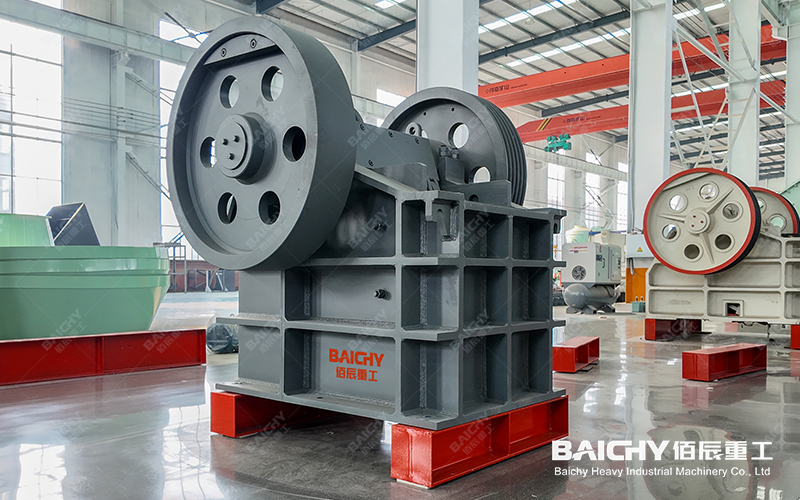

PE400x600 Jaw Crusher
2. Jaw Crusher (PE400×600) - Pioneer in Coarse Crushing, Robust and Reliable
• Function: Performs primary crushing, breaking large stones into medium-sized particles.
• Key Advantages: Simple structure, easy maintenance, and strong adaptability to harsh working conditions. Maximum feed size of 320mm easily handles large stones.

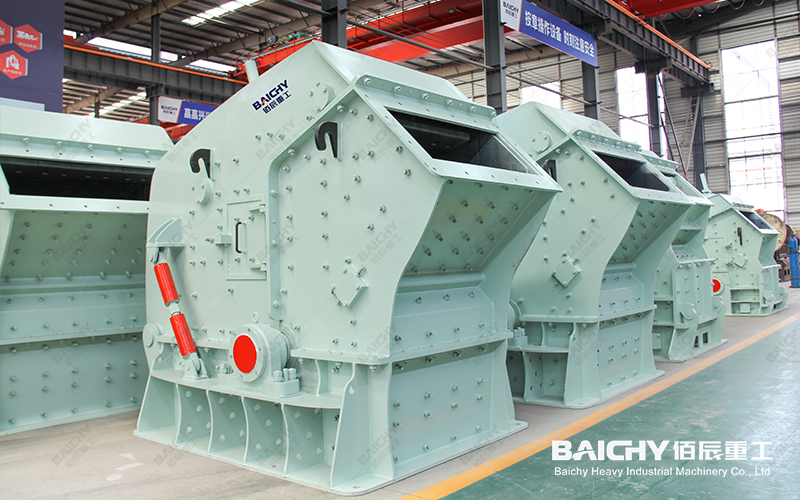

Impact Crusher (PF-1210)
3. Impact Crusher (PF-1210) - Core of Medium and Fine Crushing, Beautiful Particle Shape
• Function: Performs medium and fine crushing on coarsely crushed stones. Its "stone-on-stone" principle produces a large number of cubic particles, significantly optimizing the particle shape of the finished aggregate.
• Your Benefits: The resulting product has low needle-like and flaky content, high compressive strength, and is a preferred raw material for commercial concrete and high-grade asphalt pavements, resulting in higher added value.

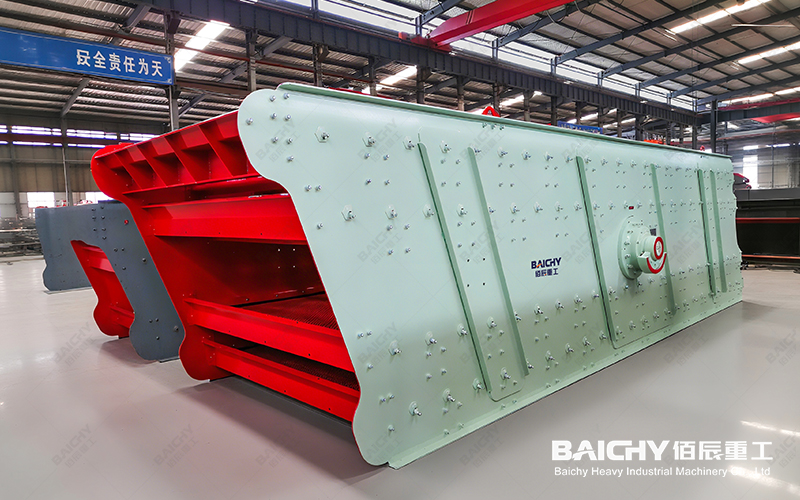

Vibrating Screen (2YK-1548)
4. Vibrating Screen (2YK-1548) - Precise Grading, Multiple Outputs from One Machine
• Function: Separates crushed mixed materials into finished products of different specifications (e.g., 0-5mm, 5-10mm, 10-20mm, 20-31.5mm, etc.).
• Key Advantages: Double-layer screen design, high screening efficiency, and flexible adjustment of product specifications according to market demand, achieving multiple uses in one machine.

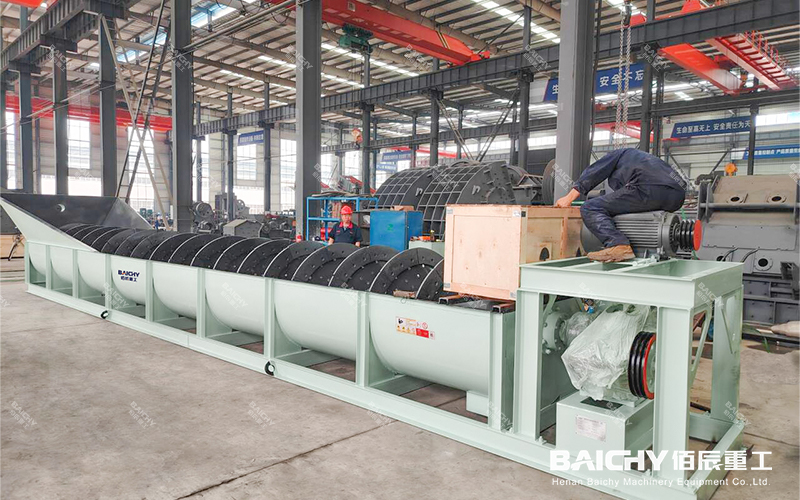

Spiral Sand Washer (LSX1254)
5. Spiral Sand Washer (LSX1254) - Improve Quality, Create Value
• Function: Washes fine materials of 0-5mm, effectively removing mud, stone powder, and impurities.
• Your Benefits: Produces clean, well-graded, high-quality manufactured sand, completely replacing natural sand, meeting high-standard construction sand requirements, and significantly increasing product profit margins.
6. Belt Conveyor System - Seamless Integration, Smooth Transportation
• Function: Connects inpidual machines to form a continuous automated production line.
• Configuration: We will design and provide a complete enclosed or open conveyor system based on your site layout, ensuring efficient, environmentally friendly, and low-loss material handling.
Production Line Overview
• Design Capacity: 60-120 tons/hour (adjustable based on raw material properties and final product particle size)
• Finished Product Specifications: Capable of producing various specifications of clean aggregates and high-quality manufactured sand.
• Total Power: Approximately 200 kW (optimized configuration, economical energy consumption).
• Key Features:
◦ Optimal Process: Compact process with coarse crushing, medium and fine crushing, screening, and washing, without bottlenecks.
◦ High Investment Efficiency: Key equipment capacity is matched to the specifications, avoiding over-engineering and offering excellent cost-effectiveness.
◦ High-Quality Products: Impact crusher ensures aggregate particle shape, sand washing machine improves sand quality, resulting in strong market competitiveness.
◦ High Adaptability: Particularly suitable for Central Asian climates and working conditions; robust and durable equipment.
Why Choose to Partner with Us?
1. Professional Planning: We provide a one-stop turnkey project service, from site survey and process design to installation guidance.
2. Reliable Equipment: All core equipment is manufactured using high-quality materials and mature processes, ensuring long-term stable operation in Kyrgyzstan.
3. Localized Support: We can provide technical documents in English and Russian, and dispatch engineers for on-site installation, commissioning, and technical training.
4. Spare Parts Guarantee: We have established long-term spare parts supply channels to ensure worry-free production.
Act Now, Build the Future!
This production line is the powerful engine to start your efficient sand and gravel production business. We look forward to working with you to develop Kyrgyzstan's rich mineral resources and provide a solid material foundation for local construction.
Please feel free to contact us anytime for detailed equipment information, process flow diagrams, and investment analysis plans tailored to your specific project.
