Struggling with Massive, Sticky Bauxite Residue?

Bauxite Residue Drying System Solution

In the alumina production process, a large amount of bauxite residue (red mud) with high moisture content and extremely fine particle size is generated. How to economically and environmentally treat this residue, achieving resource utilization or safe storage, is one of the key challenges facing modern mining. One of the core processes is drying.

Process Challenges and Customer Needs Decoded

We recently encountered a highly representative customer need: processing 150 tons of wet slag per hour, requiring the moisture content to be reduced from 30% to 20%, and 91% of the material to be finer than 38 microns. This is not a simple drying, but a systems engineering project that embodies four core demands of such projects:

1. Energy Efficiency Challenge: The huge evaporation rate directly determines operating costs.

2. Environmental Challenge: Extremely fine particles are easily dispersed during the drying process; inadequate dust removal will lead to serious environmental pollution and product loss.

3. Technical Challenge: Fine powder materials easily stick to the walls and clump together, affecting drying efficiency and stable equipment operation.

4. Connection Challenge: After drying, the material needs to be directly loaded into railway freight cars, requiring continuous, uniform discharge and controllable temperature. H2 Solution Overview: A Systematic Solution Refined from Twenty Years of Experience

As an equipment manufacturer with twenty years of experience in the mining crushing and grinding field, we deeply understand every aspect of mineral processing. To address the challenges mentioned above, we offer not just a single dryer, but an integrated, intelligent, end-to-end drying system solution.

This solution prioritizes energy efficiency and high performance, with ultra-clean dust removal as its environmental baseline. Through precise selection calculations and system integration, it ensures a smooth, stable, and controllable process from wet material silos to railway freight cars.

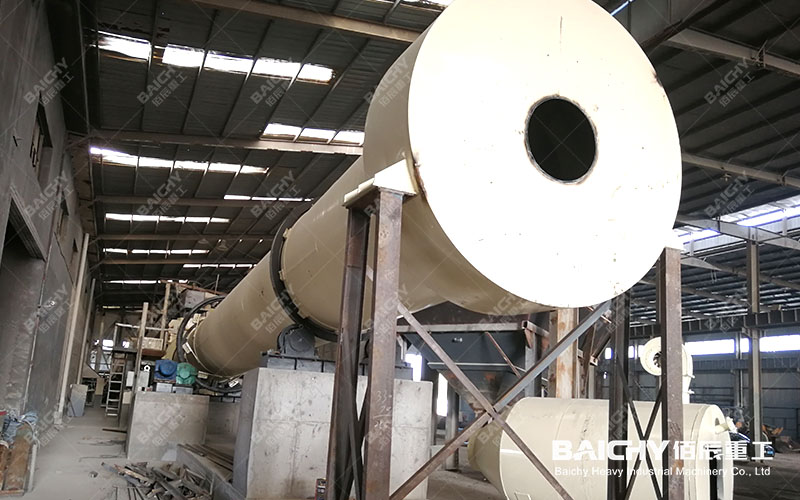

Single-drum dryer customer site

Our Solution's Core Advantages

1. Precise Process Design and Equipment Selection

Based on a deep understanding of mineral characteristics, we do not blindly recommend equipment. For the fine, wet, and sticky characteristics of bauxite residue, we prioritize indirect heating (such as paddle dryers) or direct heating with special structures (such as rotary dryers with impact devices). These models effectively break up agglomerates, enhance heat transfer, and minimize the entrainment of fine powder by airflow, reducing dust collection burden at the source.

2. Superior Energy Saving and Thermal Efficiency

The system integrates multi-stage waste heat recovery devices. For example, using the waste heat from high-temperature exhaust gas to preheat intake air or workshop heating can improve the overall thermal efficiency of the system by more than 15%. Simultaneously, the automated control system precisely adjusts temperature, airflow, and feed rate to avoid over-drying and achieve on-demand heating.

3. Industry-Leading Dust Removal and Product Recovery Effects

We employ a two- or even three-stage dust removal combination of cyclone separator + bag filter. Using non-stick, high-temperature resistant membrane filter bags ensures a collection efficiency of over 99.9% for ultrafine dust. This not only meets the most stringent emission standards but also recovers valuable materials, turning waste into treasure and directly improving economic benefits.

4. Seamlessly Integrated Automated Logistics

The system integrates intelligent weighing, temperature monitoring, and automatic conveying equipment. After drying, the material is directly and evenly loaded into railway freight cars via a closed conveyor (such as an air chute or a sealed belt conveyor) at a suitable temperature, eliminating secondary dust and heat loss, achieving clean and efficient last mile loading.

Single-drum dryer customer site

Success Case Study: A Large Alumina Plant Residue Drying Project

• Material: Bauxite residue (red mud)

• Processing Capacity: 130 tons/hour (feed)

• Moisture Requirement: Reduced from 32% to 18%

• Key Challenges: Fine particle size (85% < 45μm), limited site space, and requirement for integration with the existing filter press system.

• Our Solution: We designed a system with two large paddle dryers operating in parallel, equipped with a three-stage dust removal and heat recovery unit.

• Operational Results:

◦ Product moisture content remains stable below 18%, meeting railway transportation requirements.

◦ Overall energy consumption per ton of water evaporated is lower than the industry average.

◦ Dust emission concentration <10mg/Nm³, far exceeding national standards.

◦ The system has been operating stably for over 3 years, becoming a key link in the plant's resource recovery process.

Recommended Equipment

In addition to the core drying system, our complete mining processing line equipment can also support your upstream and downstream processes:

• Upstream: High-efficiency deep cone thickener, high-pressure diaphragm filter press (significantly reduces feed moisture, greatly reducing drying load).

• Downstream: If granulation is required after drying, we can provide a high-powered roller granulator; if conveying is required, we can provide a closed belt conveyor system.

Frequently Asked Questions (FAQ)

Q1: Compared to traditional rotary drum dryers, what makes your recommended solution more expensive? Is it worth it?

A1: The initial investment may be higher, but its value is reflected throughout its entire life cycle. Traditional drum dryers produce extremely high dust content in the exhaust gas when processing fine powders, resulting in huge subsequent environmental protection investments, and low thermal efficiency. Our solution reduces dust generation at the source and efficiently recovers heat energy. Typically, within 1-2 years, the energy savings and recovered material value offset the investment difference, resulting in significant long-term economic and environmental benefits.

Q2: How do you ensure uniform and stable moisture content of the dried material?

A2: We use a fully automatic DCS/PLC control system to monitor the feed rate, feed moisture content, discharge temperature, and exhaust gas humidity in real time. Through model algorithms, we automatically adjust the heat source valves, feed rate, and dryer speed to achieve closed-loop control, ensuring that product moisture fluctuations are controlled within ±0.5%.

Q3: Can your system handle other mineral residues or concentrates?

A3: Absolutely. Our drying technology is highly adaptable and has been successfully applied to drying various high-moisture, fine-particle materials such as iron ore filter cake, copper concentrate, nickel slag, and sludge. The core lies in personalized system design and parameter calibration based on the material's specific heat, viscosity, and allowable temperature characteristics.
