In a medium-to-large-scale stone crushing production line with a capacity of 100 tons per hour, the cone crusher, as the core equipment for medium and fine crushing, directly determines the efficiency, finished product quality, and operating costs of the entire system. Faced with a wide variety of cone crushers on the market, how do you make the most suitable choice? This article will provide you with a clear selection guide.
I. Capacity Positioning: Why is 100 tons/hour a critical milestone?
A capacity of 100 tons per hour (100t/h) signifies that the production line has moved beyond the small-scale category and entered the medium-to-large-scale stage. This means:
• Continuous high-load operation: The equipment needs to possess extremely high reliability and stability to withstand the high-intensity demands of continuous production.
• Strict finished product requirements: The larger the output, the higher the requirements for the uniformity of the finished product particle shape and the control of needle-like and flaky content, which directly relates to economic benefits.
• Energy consumption and wear resistance become the focus: Even small efficiency improvements or wear reductions will be amplified in long-term operation, significantly impacting the total cost.
Therefore, choosing a cone crusher that "matches capacity and leaves room for improvement" is crucial.
II. Comparison and Selection Recommendations for Cone Crusher Types
Currently, mainstream medium and fine crushing cone crushers are mainly pided into single-cylinder, multi-cylinder, and compound types. For a capacity of 100t/h, we analyze the following in detail:

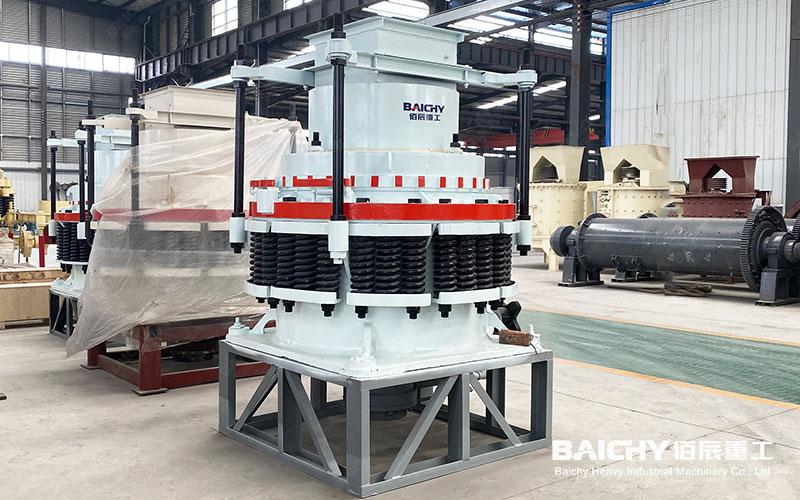

1. Spring (Compound) Cone Crusher
• Features: Mature traditional technology, uses a spring safety device, and automatically resets after overload release. Relatively competitive price.
• Applicable Scenarios: Suitable for crushing materials with medium to high hardness. However, it is not as efficient as hydraulic products in terms of discharge adjustment and automation.
• For a capacity of 100t/h: Can be considered as an alternative, but it is usually not the optimal solution in terms of adjustment convenience and efficiency.
2. Multi-cylinder Hydraulic Cone Crusher
• Features: Uses multiple hydraulic cylinders to provide powerful crushing force, while simultaneously achieving hydraulic adjustment of the discharge port and overload protection. Its layered crushing principle produces more cubic finished products with excellent particle shape.
• Suitable Scenarios: Ideal for medium and fine crushing operations, especially in applications where finished product particle shape is critical, such as high-grade building materials and concrete aggregate production.
• For a capacity of 100t/h: Highly recommended. Multi-cylinder hydraulic cone crushers are the most efficient and high-quality choice for this capacity range. They can consistently reach and slightly exceed 100t/h capacity, leaving room for system margins and ensuring higher selling prices for the finished product.
3. Single-cylinder Hydraulic Cone Crusher
• Features: Relatively simple structure, easy maintenance, and price between spring and multi-cylinder crushers. Also features hydraulic adjustment and overload protection.
• Suitable Scenarios: Suitable for medium crushing, with a large processing capacity, performing excellently when crushing medium-hardness materials.
• For a capacity of 100t/h: A highly competitive choice. Single-cylinder hydraulic cone crushers can fully meet the 100t/h capacity requirement and may offer advantages in investment cost and ease of maintenance. If your raw material is not extremely hard and the required particle shape is "good" rather than "excellent," a single-cylinder model is a very cost-effective choice.
III. Core Selection Recommendations
When selecting a cone crusher for a 100t/h stone crushing system, you should not only look at the model name, but also focus on the following core parameters:
• Material Hardness and Abrasiveness: For high-hardness materials (such as granite and basalt), multi-cylinder hydraulic cone crushers are preferred; for medium-low hardness materials (such as limestone), single-cylinder hydraulic cone crushers are preferable.
• Finished Product Particle Size Requirements: For stringent particle shape requirements, choose multi-cylinder; for moderate requirements, single-cylinder and spring crushers can be considered.
• Investment Budget and Operating Costs: If the budget is sufficient and long-term benefits and quality are prioritized, choose multi-cylinder; if the initial return on investment is important, choose single-cylinder.
For a stone crushing system with a capacity of 100 tons/hour, the first recommendation is a multi-cylinder hydraulic cone crusher, which sets the benchmark for high-quality production due to its excellent finished product quality and stable high capacity. Meanwhile, a single-cylinder hydraulic cone crusher is a reliable choice with excellent cost performance that fully meets capacity requirements. The final decision should be based on a comprehensive assessment of your specific material conditions, finished product standards, and budget.
