I. Topic Overview: What is a 500-ton/hour Granite Crushing Production Line?

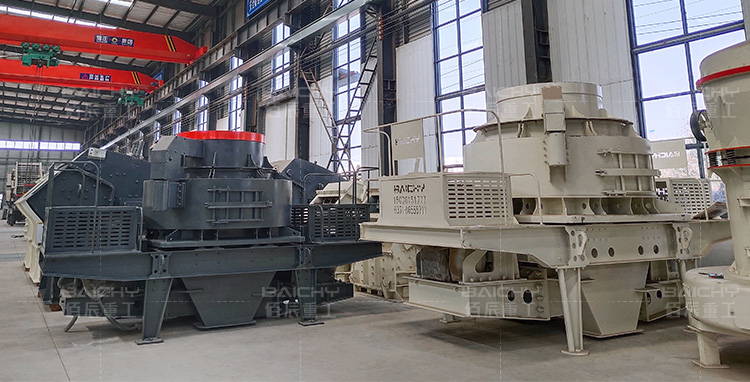

Granite Crushing Plant
A 500-ton/hour granite crushing production line is a high-output, high-efficiency stationary or semi-stationary ore processing system specifically designed to handle high-hardness, highly abrasive granite ore. Its primary objective is to take large-sized raw granite ore—extracted from mines—and, through a series of crushing and screening equipment, progressively process it into high-quality aggregates of various specifications (such as 0–5mm, 5–10mm, 10–20mm, 20–31.5mm, etc.) for widespread use in infrastructure construction. The design and configuration of this granite crushing line directly determine the final product's particle shape, gradation, production efficiency, and operating costs; it serves as the "heart" of any large-scale sand and aggregate project.
II. Core Application Scenarios: Where is Such Large-Scale Production Capacity Needed?
These medium-to-large-scale production lines primarily serve major engineering projects and large-scale commercial sand and aggregate bases that have stringent requirements regarding aggregate quality and supply volume:
1. National and Provincial Key Infrastructure Projects: Projects such as the construction of roadbeds and paving layers for expressways and high-speed railways demand extremely high standards for aggregate compressive strength, particle shape, and gradation, thereby requiring a stable, large-scale source of high-quality materials.
2. Large-Scale Commercial Concrete Batching Plants: As the core raw materials for producing high-strength concrete (grade C50 and above), these plants require a continuous and stable supply of large quantities of high-quality manufactured sand and crushed stone of various gradations.
3. Major Water Conservancy Hub Projects: Engineering works such as dams and embankments consume massive quantities of aggregates across various specifications, placing immense demands on the production system's reliability and output capacity.
4. Modern Green Building Materials Industrial Parks: These comprehensive industrial zones—which integrate aggregate production, manufactured sand, dry-mix mortar, and precast concrete (PC) components—rely on this high-output, eco-friendly granite crushing hub as their core front-end processing unit.

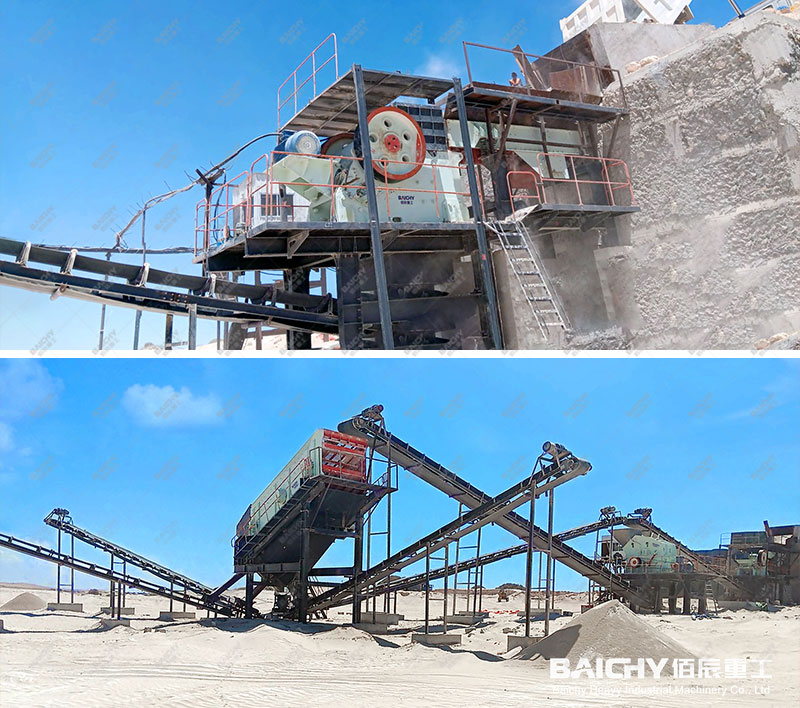

500tph Granite Crushing Production Line
III. Core Advantages of the Production Line: Why Choose a Professional Solution?
Unlike systems cobbled together from disparate components, a professionally designed 500-ton-per-hour granite crushing production line offers the following unparalleled advantages:
• High Output and Stability: The use of primary equipment employing the principle of laminated crushing (such as hydraulic cone crushers) ensures a stable output of 500 tons per hour, even under continuous high-load operation, thereby meeting the material supply demands of large-scale projects.
• Superior Product Shape: A multi-stage crushing process combined with an optimized crushing chamber design produces finished materials that are predominantly cubical in shape. These materials feature low needle-and-flaky content and high compressive strength, significantly enhancing the strength and durability of concrete and commanding a higher market value.
• Lower Comprehensive Operating Costs: The use of high-manganese steel or composite alloy wear parts—known for their exceptional abrasion resistance—significantly extends the service life of consumables, thereby reducing the production cost per ton. Furthermore, a scientifically optimized process layout minimizes the number of transfer and lifting stages, resulting in energy savings.
• High Automation and Intelligence: Equipped with a PLC central control system, the line enables one-touch start-and-stop operations, online adjustment of discharge openings, real-time monitoring of loads and key parameters, and fault pre-warning capabilities. This reduces reliance on manual labor while enhancing operational safety and management efficiency.
• Environmental Compliance and Green Production: Featuring a fully or semi-enclosed design, the system is equipped with high-efficiency pulse bag dust collectors at key dust-generating points to ensure dust emissions meet regulatory standards. Additionally, the use of vibration-damping bases and sound-insulating materials effectively controls noise pollution.
IV. Core Equipment Recommendations and Key Parameters
A typical 500-ton-per-hour granite crushing production line typically comprises modules for feeding, primary crushing, secondary crushing, tertiary crushing, screening, conveying, and dust removal.
The following are recommendations for the core primary equipment:
| Process Stage | Recommended Equipment Type | Model Reference Example | Key Function and Advantages |
| Primary Crushing (Coarse Crushing) | Jaw Crusher | PE-1200×1500 | Performs the initial, powerful crushing of raw granite ore (up to 1000 mm in size). Featuring a robust structure and high processing capacity, it serves as the "bottleneck" (critical entry point) of the entire production line. |
| Secondary Crushing (Medium Crushing) | Single-Cylinder Hydraulic Cone Crusher | CHS660 | Processes the output from the jaw crusher, performing the secondary (medium-to-fine) crushing stage. Features hydraulic adjustment of the discharge opening and automatic cavity clearing, offering a high degree of automation and stable output. |
| Tertiary Crushing (Fine Crushing/Shaping) | Multi-Cylinder Hydraulic Cone Crusher | HP500 | Performs final fine crushing and shaping of aggregates, producing finished products with excellent particle shape. The multi-cylinder hydraulic system delivers greater crushing force and more stable protection against tramp iron. |
| Sand Making (Optional) | Vertical Shaft Impact Crusher (Sand Maker) | VSI1145 | Further crushes a portion of smaller stones into manufactured sand, thereby enhancing added value. Utilizing a combined "stone-on-stone" and "stone-on-iron" crushing principle, the resulting sand features a rounded particle shape and adjustable gradation. |
| Screening | Multi-Layer Heavy-Duty Circular Vibrating Screen | 3YK3070 | Classifies the crushed mixture into various finished product specifications; this is a critical piece of equipment for controlling product gradation and boasts high screening efficiency. |
Note: The equipment models listed above are examples; specific configurations require a customized design solution tailored to the raw material characteristics, product requirements, and on-site conditions.
V. Success Stories: A Testament to Our Capabilities
Case Study: A Large-Scale "Green Aggregate" Base Project in East China
• Project Challenges: The project required an annual output of over 4 million tons of high-quality aggregates. The products needed to simultaneously meet supply demands for nearby high-speed railways, expressways, and commercial concrete batching plants. Furthermore, the project faced extremely stringent requirements regarding environmental protection (due to its proximity to residential areas) and product particle shape.
• Solution: We designed two parallel granite crushing production lines, each with a capacity of 500 tons per hour. The system employs a three-stage closed-circuit process: "Jaw Crusher (Coarse Crushing) + Single-Cylinder Cone Crusher (Medium Crushing) + Multi-Cylinder Cone Crusher (Fine Crushing & Shaping)." The screening tower utilizes multi-layer, high-efficiency screens to ensure precise classification. The entire production line is fully enclosed and equipped with a centralized dust removal system.
• Achieved Results: The production lines operate stably, with actual hourly output consistently ranging between 520 and 550 tons. The finished aggregates feature a cubic particle shape with a flakiness/elongation content of less than 8%—far exceeding the national standard for Grade I aggregates. Dust emission concentrations remain below 10 mg/m³, and noise levels are effectively controlled, establishing the facility as a provincial-level benchmark for "Green Mines."
VI. Frequently Asked Questions (FAQ)
FAQ 1: What are the main investment components involved in constructing a granite crushing production line with a capacity of 500 tons per hour?
The primary investment can be categorized into several major areas:
1) Core equipment procurement costs (accounting for approximately 50%–60%): This includes various stages of crushers, screening machines, feeders, conveyors, etc.;
2) Civil engineering and steel structure costs: The construction of equipment foundations, conveyor galleries, screening towers, and storage hoppers;
3) Electrical and control system costs: Motors, cables, power distribution cabinets, and PLC automation control systems;
4) Environmental protection facility costs: Dust removal systems, noise reduction and soundproofing measures, and wastewater recycling systems;
5) Installation and commissioning fees. It is recommended to select a supplier capable of providing "EPC General Contracting" services to facilitate comprehensive control over the budget and project schedule.
FAQ 2: How can the consumption costs of wear parts be effectively reduced in granite crushing operations?
Reducing wear part costs requires a systematic approach:
1) Equipment selection is fundamental: Choose equipment utilizing the principle of laminated crushing (such as cone crushers) rather than impact crushing, thereby inherently minimizing wear.
2) Select high-quality wear-resistant materials: Pay close attention to whether the critical wear parts of the main processing equipment—such as the concave liner, mantle, or blow bars—are manufactured using specialized high-manganese steel, alloy composites, or ceramic composite technologies.
3) Scientific process layout: Ensure a continuous and uniform feed rate to prevent equipment idling or overloading; install iron separators to remove ferrous objects from the raw material, thereby preventing abnormal damage caused by "tramp iron."
4) Regular maintenance and data monitoring: Establish a wear tracking record, periodically rotate or replace wear parts, and utilize system monitoring tools to track changes in key operational parameters.
FAQ 3: To what extent can the production line be automated? How many personnel are required to operate it?
Modern medium-to-large-scale production lines can generally achieve a high degree of automation. Through a centralized PLC control system, operators in the central control room can: perform one-touch sequential startup and shutdown of the entire line; monitor key parameters—such as current, temperature, and oil pressure—for each piece of equipment in real-time; remotely adjust the discharge opening of cone crushers; and view equipment operating statuses as well as fault alarms. Under normal operating conditions, a granite crushing production line with a capacity of 500 tons per hour requires only one central control operator and two to three on-site inspectors per shift to manage operations. Their primary duties involve monitoring equipment status, inspecting the appearance of finished products, and conducting routine lubrication checks; this significantly reduces labor requirements while substantially enhancing safety.
