Aggregate Crushers, for Rock, Ore & Minerals
Aggregate crushers are core equipment in mining, quarrying, building materials, and infrastructure construction. This article will provide an in-depth analysis of aggregate crushers from multiple perspectives, showcasing their core value and applications.
I. Why are aggregate crushers so crucial?
The description "suitable for rocks, ores, and minerals" precisely defines the core application scope of aggregate crushers. It doesn't refer to a single model of machine, but rather a collective term for a series of crushing equipment designed for different hardness, particle size, and output requirements.
1.1 Application Material Analysis
Stone crushing
• Rocks: Primarily refers to building aggregates such as granite, basalt, and limestone, which are crushed and used as concrete aggregates and road subbases.
• Ores: Such as iron ore, copper ore, and gold ore; crushing is the first critical step in mineral extraction and beneficiation processes.
• Minerals: Includes non-metallic minerals such as calcite, quartz, and barite, used in industries such as chemicals, ceramics, and glass.
1.2 Role in the Process Flow
In the entire crushing production line, the aggregate crusher is usually located after the primary crushing (jaw crusher), undertaking secondary or tertiary medium and fine crushing tasks. Its performance directly determines the particle shape, gradation, and output of the final product, making it a core link affecting production efficiency and finished product value.
II. Overview of Aggregate Crusher: Types and Working Principles
Aggregate crushers mainly reduce particle size by applying forces such as compression, impact, splitting, or grinding to materials. Common types of crushers used for aggregate crushing include:
• Cone Crusher: Suitable for medium and fine crushing of medium to high hardness materials. Relying on the principle of layered crushing, it produces good particle shape and high efficiency, and is often used in large-scale stone production lines and mining projects.
• Impact Crusher: Utilizes impact energy to crush medium-hardness materials (such as limestone). The finished product is cubic with low needle-like and flaky content, making it an ideal choice for high-quality aggregate production.
• Hammer Crusher: Suitable for one-time crushing of brittle materials with low compressive strength. It has a simple structure and a large crushing ratio.
III. Core Advantages of Choosing a Professional Aggregate Crusher
Based on 20 years of design and manufacturing experience, our aggregate crushers offer the following significant advantages:
1. High Wear Resistance and Long Service Life: Key components (such as the crushing chamber wall and hammer plates) are made of special alloy materials, resulting in slower wear when crushing highly abrasive materials such as rocks and ores, significantly reducing maintenance costs and downtime.
2. Superior Particle Shape Control: Optimized crushing chamber design and speed control ensure excellent aggregate particle shape with a high cubic proportion, meeting the stringent requirements of high-grade construction and hydropower projects.
3. High Energy Efficiency and Low Operating Costs: Advanced hydraulic systems and drive design achieve lower energy consumption per ton while ensuring high output, resulting in significant long-term economic benefits.
4. Intelligent and Stable Operation: Equipped with an automatic control system, overload protection device, and hydraulic clearing function, the equipment operates stably and reliably with a low failure rate, making operation simpler and safer.
Honduran granite fracture site
IV. Successful Application Cases
One of our multi-cylinder hydraulic cone crushers was used in a large granite quarry in East China. This production line required crushing granite ≤300mm into four commonly used building aggregates: 0-5mm, 5-10mm, 10-20mm, and 20-31.5mm. Our equipment, with its excellent layered crushing capability, not only controlled the needle-like and flaky content of the finished product to below 8%, far exceeding national standards, but also easily achieved flexible switching between the four specifications through hydraulic adjustment of the discharge port. The customer's output remained stable at 450 tons per hour, receiving extremely high praise.

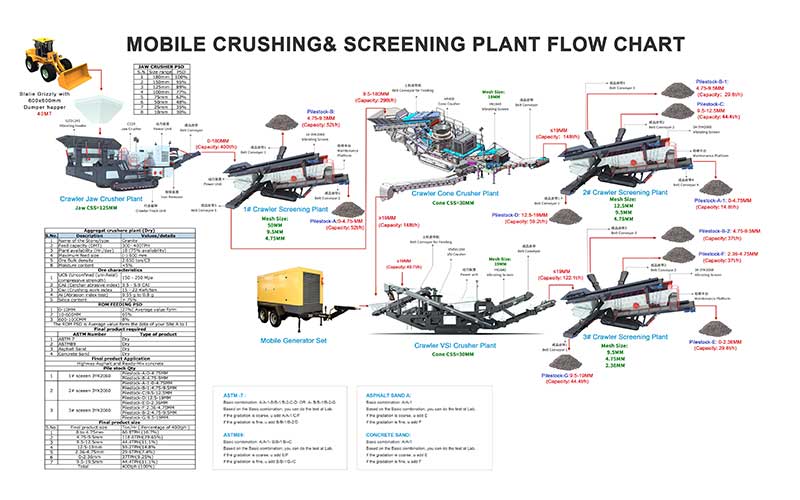

V. Recommended Related Equipment and Production Lines
• Primary Crushing Partner: We recommend pairing it with our deep-cavity jaw crusher as the primary crushing stage, providing a uniform and stable feed to the aggregate crusher.
• Screening and Conveying: High-efficiency circular vibrating screens and belt conveyors are key to forming a closed-loop crushing and screening production line and optimizing overall efficiency.

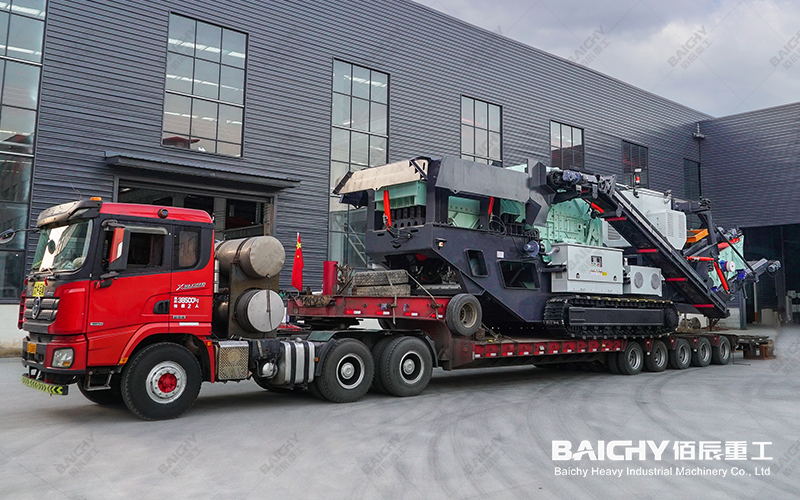

• Mobile Solutions: For dispersed material sources or short-term projects, we also offer wheeled or tracked mobile crushing plants that integrate feeding, crushing, and screening, allowing for flexible relocation and rapid commissioning.
VI. Frequently Asked Questions (FAQ)
6.1 How do I choose the most suitable aggregate crusher type for my project?
The choice depends on three core factors: material characteristics (hardness, moisture content, mud content), feed and discharge particle size requirements, and expected output. Generally, cone crushers are preferred for high-hardness, highly abrasive ores; impact crushers are the preferred choice for construction rocks with high particle shape requirements. Our engineers can provide free selection consultation.
6.2 What are the key points for daily maintenance of aggregate crushers?
Daily maintenance should focus on the lubrication system (ensuring clean and sufficient lubricating oil), checking the wear of vulnerable parts (such as hammers and liners), and the condition of fasteners. Regularly listen to the equipment's operating sound to promptly detect abnormalities. Our intelligent monitoring system can monitor operating parameters in real time, enabling preventative maintenance.
6.3 Will your equipment have problems processing minerals with high moisture content or high mud content?
Yes, excessive moisture and mud can cause material to stick and clog the crushing chamber, affecting output. For such mineral materials, we recommend adding a pre-screening or washing process before crushing. In addition, we can specifically optimize the equipment feed design and hammer arrangement to enhance its throughput and reduce the risk of clogging.
