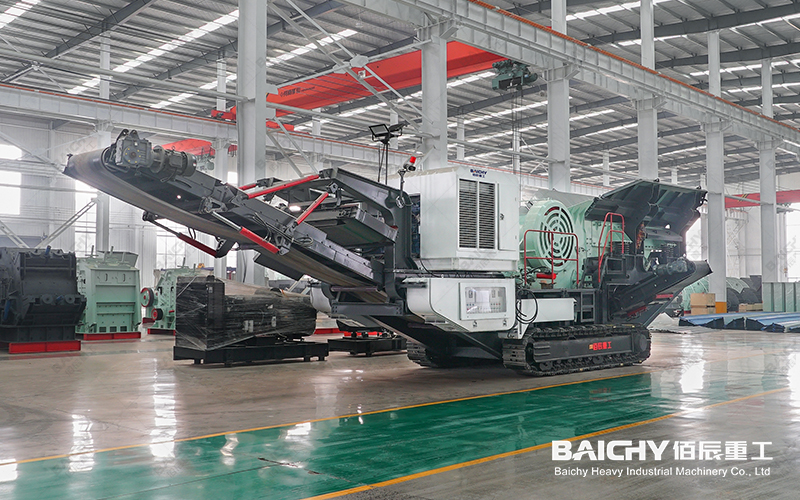

Baichy YMC Heavy-Duty Tracked Jaw Crusher
As the mining machinery industry advances toward greater intelligence and electrification, Baichy proudly unveils its brand-new generation: the YMC Series Heavy-Duty Crawler Jaw Crusher. This machine not only inherits the hallmark ruggedness and durability characteristic of Baichy products but also—through innovative "electric drive" technology—fundamentally reshapes the operational cost landscape traditionally associated with fuel-powered crushing equipment.
Crawler Crusher PDF,Download ↓↓↓
I. Core Product Highlights
| Feature | Technical Details | Customer Benefits |
| Pure Electric Drive System | High-power motor drive; supports external power supply or large-capacity generator sets | 30%-50% reduction in energy costs; zero exhaust emissions; fully compliant with strict environmental regulations |
| YMC Heavy-Duty Chassis | Reinforced, heavy-duty frame structure; specifically engineered for crushing hard rocks such as pebbles and granite | Enhanced equipment stability; capable of withstanding extreme impact loads; extended service life |
| Intelligent Variable Frequency Control | Automatically adjusts feeding frequency and crushing force | Prevents material clogging, optimizes energy consumption, and ensures reasonable product particle shape and gradation. |
| Full-Hydraulic Crawler Chassis | Industrial-grade wear-resistant tracks; high ground clearance design | Freely navigates complex terrain; requires no prior foundation work; ready for operation immediately upon arrival |
II. Why is the YMC Series Your Ultimate Profit-Generating Tool?
1. Operational Cost "Subtraction": With fluctuating fuel prices, traditional fuel-powered equipment often eats into profit margins. The electric YMC Series utilizes electric power, drastically reducing fuel consumption expenses and engine maintenance costs.
2. Crushing Efficiency "Addition": Featuring a large eccentricity and deep-cavity crushing design, the machine delivers higher throughput and a greater crushing ratio—particularly when processing high-hardness materials like pebbles.
3. Site Transfer "Multiplication": The modular design facilitates effortless transportation, while hydraulic folding conveyors and feeder baffles allow the equipment to switch between "transport mode" and "work mode" in mere seconds.
III. Core Functional Advantages of the YMC Series Crawler Jaw Crusher
The Baichy YMC Series—a new generation of electric, heavy-duty crawler jaw crushers—was designed with a singular core philosophy in mind: "High Efficiency, Energy Conservation, and Durability." Compared to traditional diesel-powered mobile stations, this unit features comprehensive upgrades in both structural strength and power distribution.

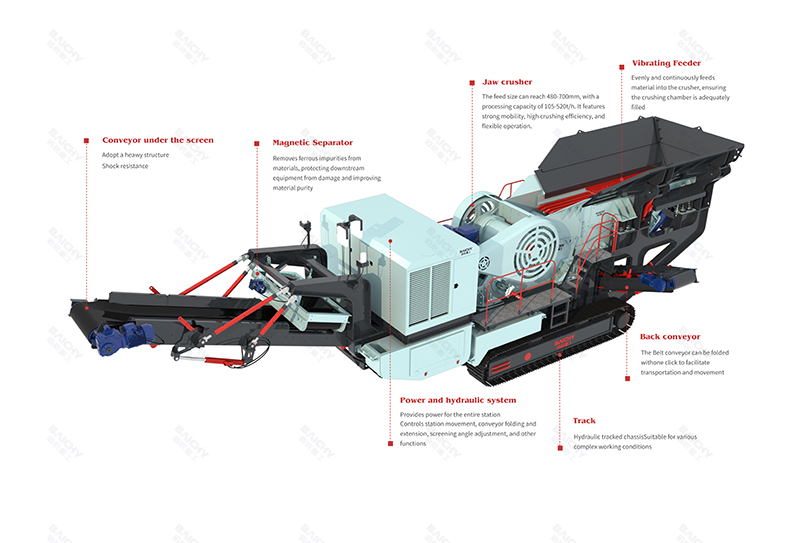

Track-Mounted Jaw Crushing Station: Structural Diagram
1. Core Power: Dual-Energy Drive & Ultimate Energy Efficiency
• Dual-Power (Electric/Diesel) / Pure Electric Modes: Equipped standard with high-power Siemens motors—or equivalent top-tier brands—this unit allows for direct grid connection in sites with access to mains electricity, reducing operating costs by over 50% compared to fuel-driven models.
• High Energy Conversion Efficiency: The motor directly drives the main crushing unit, eliminating energy losses associated with hydraulic transmission to deliver faster power response and more powerful crushing force.
2. Heavy-Duty Structure: Engineered for Hard Rock & Oversized Feed
• Deep-Cavity Crushing Technology: Features an optimized jaw crusher cavity profile with an increased eccentric throw. This design not only accommodates larger raw materials (feed size up to 750mm) but also significantly boosts material throughput and crushing ratio.
• High-Strength Integrated Frame: Specifically engineered for crushing hard rocks such as river pebbles and granite, the YMC series utilizes a reinforced welded or integrally cast frame structure. This design eliminates welding stresses, ensuring the machine remains free of cracks or shaft fractures even under heavy loads and intense vibration.
3. Mobility & Chassis: The All-Terrain Movement Expert
• High-Power Hydraulic Crawler System: Built upon an engineering-grade, heavy-duty chassis, this unit boasts exceptional climbing capabilities (gradients of 25°–30°) and superior traction, allowing it to navigate freely through the muddy, rainy, or rugged mountainous terrains typical of regions like the Philippines and Southeast Asia.
• Infrastructure-Free Deployment: Upon arrival at the job site, the machine can be positioned and set up within minutes using a wireless remote control. No concrete foundation is required; simply unfold the collapsible conveyor belt to begin production immediately—boosting site-transfer efficiency by 300%.
4. Intelligent Control: A User-Friendly, Labor-Saving Experience
• Hydraulic Discharge Opening Adjustment: Features a hydraulic wedge adjustment mechanism that eliminates the need for manual shim insertion or removal. A simple one-touch command on the control screen allows for rapid adjustment of the finished product size (CSS) to meet perse grading specifications.
• Load-Sensing System: The feeder automatically adjusts its speed based on the load status of the main crusher. This prevents material overflow or blockages, enabling "fully automatic, constant-rate feeding" to provide maximum protection for the main crushing unit.
5. Environmental Protection and Maintenance: Green, Sustainable Operations
• Zero Exhaust Emissions: In electric mode, not only is noise significantly reduced, but zero exhaust emissions are also achieved, allowing the unit to easily pass any rigorous environmental assessment.
• Simplified Maintenance: The electric system eliminates the tedious maintenance tasks associated with diesel engines, such as fuel filtration and oil changes. Key lubrication points utilize a centralized lubrication system, reducing maintenance time by over 60%.
6. Modular Integration: Streamlined, All-in-One Process
• "Three-in-One" Design: Highly integrates a heavy-duty vibrating feeder, a jaw crusher, an iron remover, and a foldable finished-product conveyor belt into a single unit.
• Pre-screening Function: The feeder is equipped with pre-screening bars that filter out soil and fine materials from the raw stone in advance, thereby reducing unnecessary crushing and minimizing wear on consumable parts.

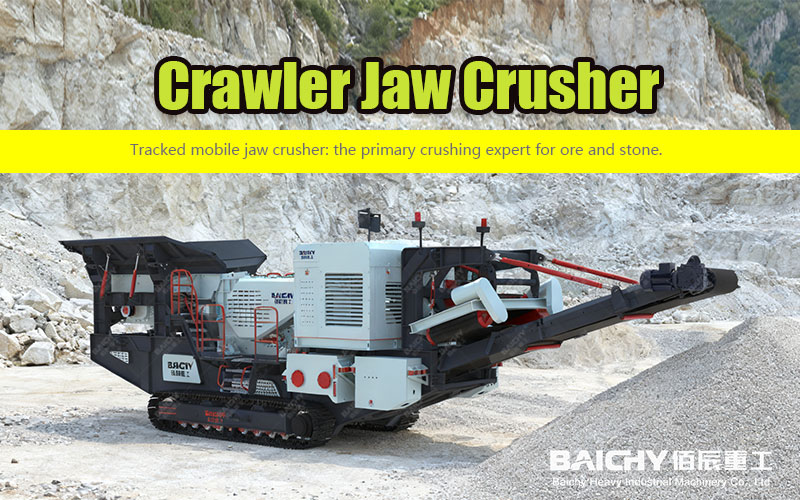

On-site Operation of a Crawler-Mounted Jaw Crusher

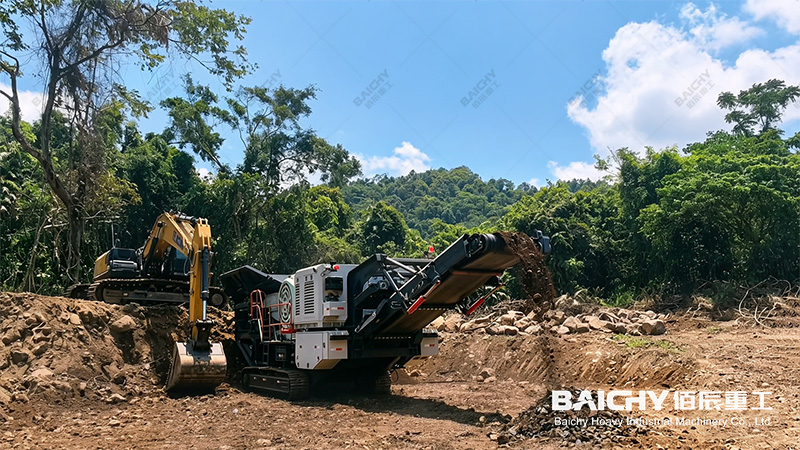

On-site Operation of a Crawler-Mounted Jaw Crusher
The Investment Value of the YMC Series
If your project site has access to grid power, or if you have exceptionally high requirements for stability when crushing hard rock, the YMC series represents an option with an outstanding cost-performance ratio currently available on the market. It perfectly combines the "brute force crushing power of a heavy-duty jaw crusher," the "flexibility of a mobile station," and the "low operating costs of electric drive technology," serving as a veritable "money-printing machine" for mine owners seeking long-term profitability.
About of Baichy Heavy Industry
Baichy Heavy Industry is a high-tech mining equipment company integrating R&D, manufacturing, sales, and after-sales service. Focusing on crushing, grinding, and mineral processing equipment, we provide professional solutions to our customers. We are ISO9001:2015 、certified, and our products include mobile crushing palnts, crawler crushing plant, construction waste crushing plants, jaw crushers, sand making machines, cone crushers, fine crushers, grinding mills, ball mills, etc., all with reliable performance to meet diverse project needs.
Our advantages:
• Professional pre-sales support: Free project design and comprehensive solutions to help you accurately select the right equipment;
• Comprehensive on-site service: Providing installation guidance and worker training to ensure smooth equipment commissioning;
• Reliable after-sales guarantee: A complete after-sales system, timely response to technical inquiries and equipment maintenance, ensuring long-term stable operation.
To protect your rights, please contact us through the following official channels for professional service:
Official Website Customer Service
https://wa.me/+8615093222637
Email: [email protected]
We are committed to providing high-quality equipment and full-cycle services to deliver comprehensive intelligent solutions for the global mining industry!
IV. Frequently Asked Questions (FAQ)
Q1: How does the YMC electric crusher operate in remote mining areas where there is no grid power coverage?
A: The YMC series offers exceptional flexibility. In areas with grid access, it can be plugged in and operated directly; in remote areas, it can be equipped with Baichi’s proprietary high-efficiency generator set, still achieving a total energy consumption significantly lower than that of direct diesel-driven systems.
Q2: Compared to standard mobile crushing stations, where does the "heavy-duty" aspect manifest?
A: The "heavy-duty" nature is primarily reflected in the structural strength and counterweight of the main jaw crusher unit. The YMC series features thicker steel plates and utilizes larger-spec eccentric shafts and bearings, enabling it to process larger-diameter (up to 600–750 mm) and harder rocks without experiencing structural vibration or instability.
Q3: Is the maintenance of the electric system more complex than that of a diesel engine?
A: Quite the opposite. The electric motor system features a simple structure, eliminating the need for filter replacements, the risk of oil leaks, and the complex frictional forces associated with piston movement found in fuel-powered engines. Consequently, routine maintenance requirements have been reduced by approximately 60%, significantly boosting the equipment's operational uptime.
