In today's competitive mining and construction aggregate market, operational flexibility and consistent high output are paramount for project success. As a leading manufacturer of mining and crushing equipment, we understand the critical need for solutions that combine substantial capacity with unmatched mobility. This article provides a comprehensive overview of the 230-260t/h Mobile Crushing Plant—a powerhouse solution designed for medium to large-scale production requirements.
In-Depth Analysis: What is a 230-260t/h Mobile Crushing Plant?
A mobile crushing plant is a complete processing line that integrates feeding, crushing, screening, and conveying systems onto one or more tracked or wheeled chassis. The 230-260 tons per hour capacity range precisely defines this model's target applications: it is ideally suited for large-scale quarry operations, urban construction and demolition (C&D) waste recycling, and major infrastructure projects like highway and railway construction that demand reliable, high-volume output.
Unlike traditional stationary crushing lines, its defining characteristic is mobility. The plant can be driven directly to the material source or worksite, eliminating the need for costly and time-consuming truck haulage of raw materials and significantly reducing operational expenses.
Core Overview & Configuration

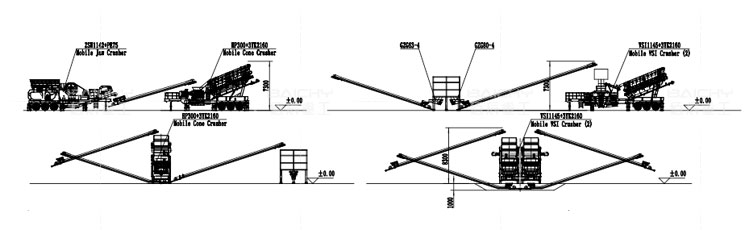

The 230-260t/h plant is not a single machine but a sophisticated system. A typical configuration may include:
-
Mobile Jaw Crusher (Primary Crushing Unit): Ruggedly built to handle large feed size (e.g., 0-650mm), performing the initial size reduction.
-
Mobile Impact or Cone Crusher (Secondary/Tertiary Unit): For further refining material size and shaping the final product. Impact crushers are excellent for recycling and softer rock, while cone crushers are ideal for harder abrasives.
-
Mobile Screening Unit: Separates crushed material into different, precise product sizes (e.g., 0-5mm, 5-20mm, 20-40mm).
-
Integrated Conveyor System: Connects all units for seamless material flow, with options for stockpiling conveyors.

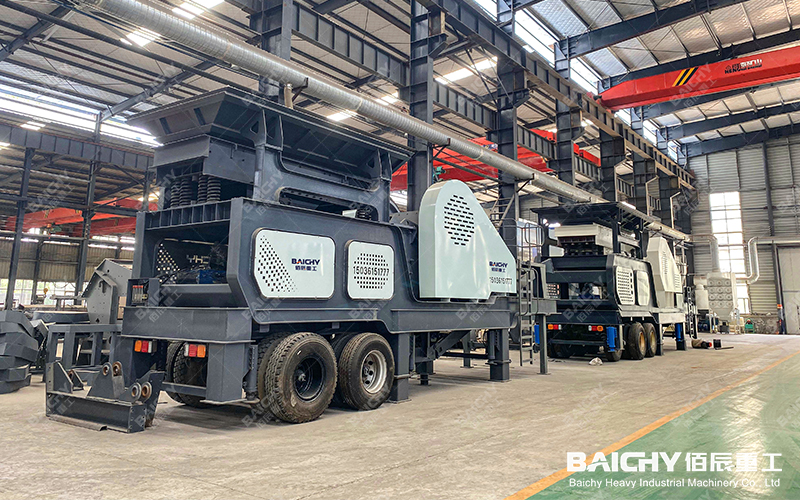

Mobile Jaw Crusher

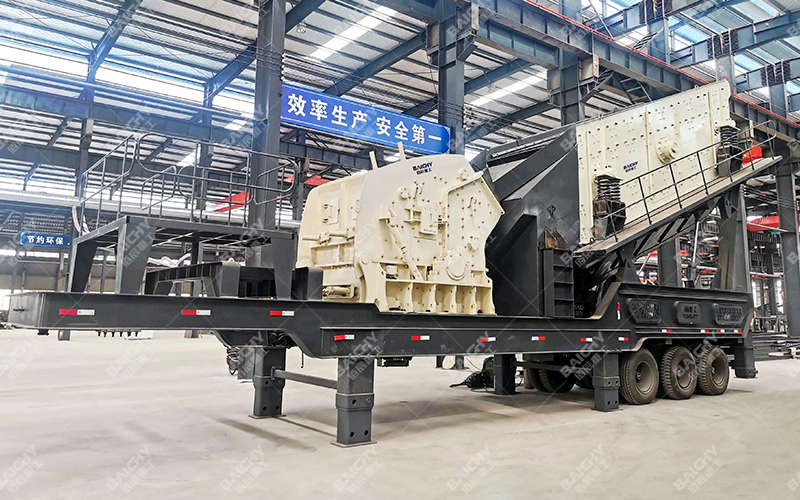

Mobile Impact Crusher

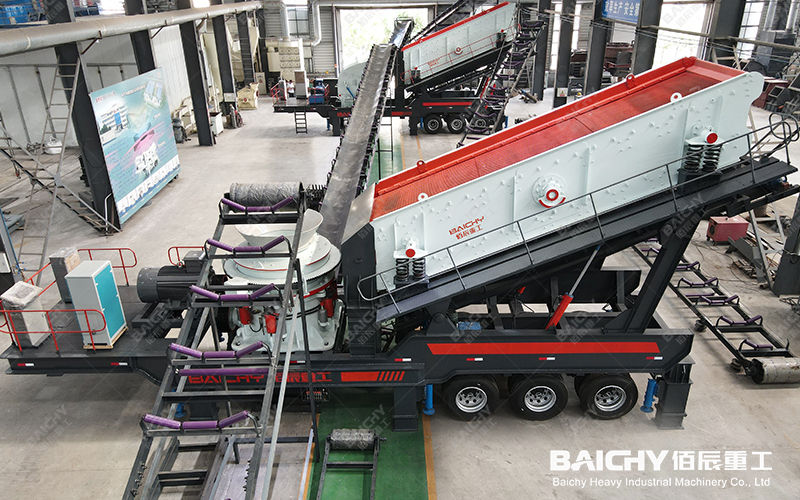

Mobile Cone Crusher
This modular, yet integrated, design ensures rapid setup—often within hours—and easy reconfiguration for different tasks.
Key Advantages of Choosing This Model
Investing in a 230-260t/h mobile plant offers transformative benefits:
-
Rapid Deployment & Setup: Be operational in hours, not weeks. Move between sites or different faces of a quarry with minimal downtime.
-
Direct Cost Reduction: Crush material directly at the source, slashing fuel, labor, and trucking costs associated with transporting raw feed to a fixed plant.
-
Superior Flexibility: Follow the resource as the project evolves. One plant can serve multiple sites or contracts over its lifetime, maximizing ROI.
-
On-Site Processing Power: Perfect for urban recycling projects where space is limited and bringing waste to a distant landfill is prohibitively expensive. Turn waste into valuable aggregate right where it's generated.
-
Modern Control Systems: Advanced PLC controls and wireless remotes allow for easy operation, monitoring, and optimization of the entire crushing process from a safe distance.
Application Case Study
Project: Rehabilitation of a major regional highway.
Challenge: Process over 500,000 tons of old concrete and asphalt from the demolished roadbed at multiple, dispersed locations along a 50km stretch. Transporting all material to a central fixed plant was logistically and financially unfeasible.
Solution: Deployment of a 230-260t/h mobile impact crushing plant, paired with a mobile screen.
Result: The plant was moved 4 times along the project corridor. It processed the demolished material on-site, producing high-quality, certified recycled aggregate that was immediately reused as sub-base for the new highway. This approach cut material transportation costs by over 60%, reduced the project's carbon footprint, and accelerated the timeline by allowing simultaneous demolition and base preparation.
Related Equipment Recommendations
To maximize the efficiency of your 230-260t/h mobile plant, consider these complementary solutions:
-
Mobile Scalping Feeder: Removes fine material and debris before the primary crusher, reducing wear and increasing effective capacity.
-
Washing & Dehydration Unit: For projects requiring clean, clay-free sand products or strict silt control.
-
Mobile Secondary & Tertiary Crushing Units (Cone/Impact): For operations requiring a multi-stage, closed-circuit process to produce specific, high-value cubical aggregates.
Frequently Asked Questions (FAQ)
Q1: What is the typical setup time for a plant of this size?
A1: With our optimized design, a skilled crew can have a 230-260t/h plant fully operational, including all conveyors positioned, in 4-8 hours. The process is designed for minimal on-site assembly.
Q2: Can it run on standard electrical grid power, or does it require a generator?
A2: Our plants are highly versatile. They are equipped with powerful onboard diesel-electric drives for complete independence. Alternatively, most models can be configured to plug into a local high-voltage grid power source for stationary phases of operation, significantly lowering fuel costs and emissions during long-term projects.
Q3: How do you manage dust and noise control on such a high-capacity mobile plant?
A3: Environmental compliance is integral to our design. The plant features comprehensive solutions including fully enclosed conveyor transfer points, high-efficiency dust suppression spray systems with automatic controls, and optional sound-dampening enclosures for crushers and generators. We ensure the plant meets or exceeds local environmental regulations.
