Looking for a Reliable 400 T/H Aggregate Crusher Plant for Your Limestone Quarry?

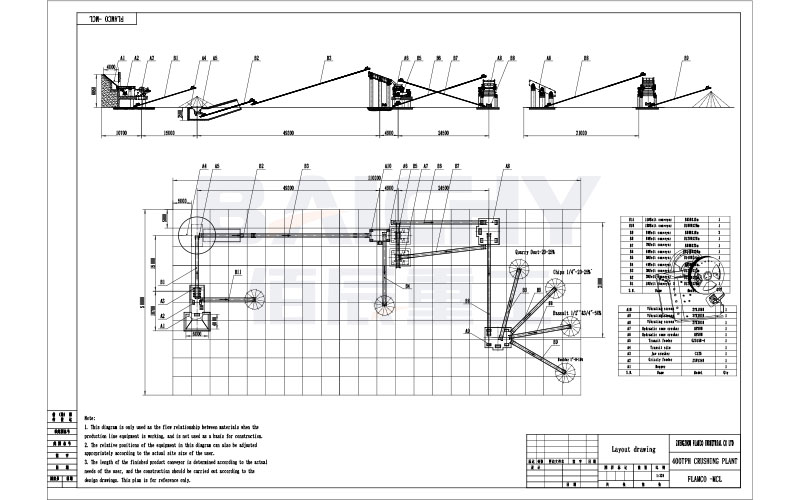

Efficient and Stable Large-Scale Aggregate Crushing Plant Solution

In today's era of booming infrastructure development, the demand for high-quality sand and aggregate is growing by the day. For large-scale quarries and the dedicated aggregate supply yards supporting major infrastructure projects—such as highways, railways, and hydroelectric facilities—an efficient, stable, and energy-efficient aggregate production line serves as the core guarantee for both project progress and economic returns. This article provides an in-depth analysis of a classic limestone crushing production line solution—a mobile/stationary aggregate crushing station with a capacity of 400 tons per hour—illustrating how it functions as both the "heart" and the "profit engine" of a modern, eco-friendly mine.

I. Solution Overview: Modular Design, Intelligent Production

This 400-ton-per-hour aggregate crushing station solution is specifically designed for the large-scale crushing and screening of medium-hardness materials (such as limestone, bluestone, granite, etc.). The core principles of this solution are "efficient crushing, precise classification, intelligent control, and eco-friendly, low-consumption operation." By scientifically configuring coarse crushing, medium-to-fine crushing, screening, and conveying equipment, it establishes a seamless, closed-circuit production line that ultimately yields high-quality construction aggregates in various specifications—such as 0–5mm, 5–10mm, 10–20mm, and 20–31.5mm—all in full compliance with national standards.

This solution can be deployed as a stationary installation, making it ideal for long-term, centralized production operations. Alternatively, it can be configured using a combination of wheel-mounted or crawler-mounted mobile crushing stations, enabling rapid relocation between multiple work sites and significantly enhancing production flexibility.

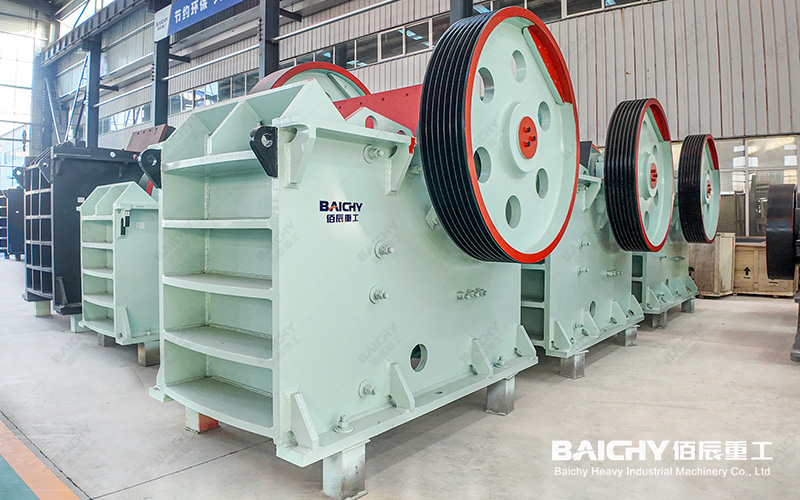

PE Jaw Crusher

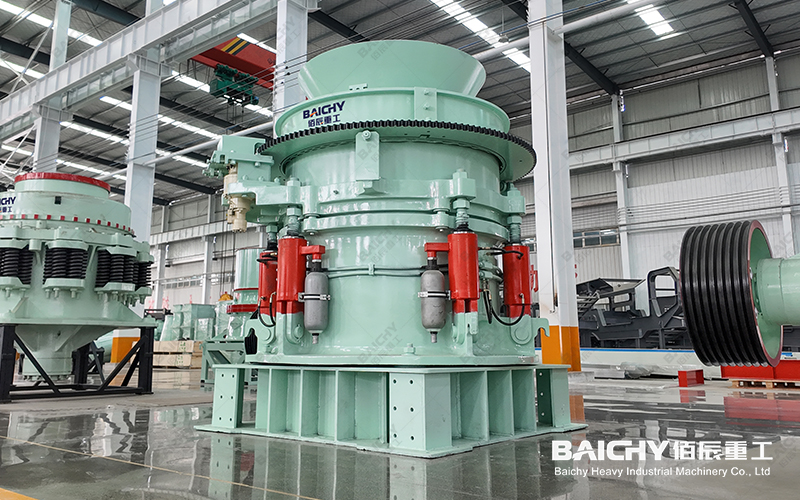

Hydraulic Cone Crusher

II. Core Application Scenarios and Materials

This solution is widely applicable across the following scenarios:

•   Large-scale Mining and Quarry Operations: Serving as the core crushing and screening section, it facilitates the large-scale, commercial production of aggregates from materials such as limestone and river pebbles.

•   Key National Infrastructure Projects: It provides dedicated on-site aggregate production lines for major projects—including expressways, high-speed railways, large-scale dams, and airports—thereby reducing transportation costs and ensuring a stable supply of materials.

•   Urban Construction Waste Recycling: Through adaptive modifications, the system can be utilized for the crushing and recycling of discarded concrete and bricks from construction sites, producing recycled aggregates in alignment with the principles of the circular economy.

•   Metallurgical and Chemical Industries: It supplies qualified raw materials or auxiliary inputs required for processes such as sintering, steelmaking, and cement production. Primary Materials Processed: Limestone, bluestone, granite, river pebbles, construction waste concrete, and other rocks and recycled resources of medium-to-low hardness.

III. Core Advantages of the Solution: Why Choose Our 400 t/h Production Line?

1.  High Efficiency and High Output; Substantial Returns: With a designed hourly capacity of 400 tons, the line easily meets the aggregate demands of large-scale projects. Daily output (based on a 20-hour operating schedule) can reach up to 8,000 tons, ensuring a short return-on-investment period.

2.  Intelligent Control; Stable Operation: Features a PLC central control system enabling one-touch start/stop, fault alarms, and remote monitoring. Key equipment is outfitted with tramp iron protection and automatic cavity-clearing systems, effectively preventing equipment damage and ensuring production continuity.

3.  Superior Finished Products; Controllable Particle Shape: Utilizes multi-cylinder hydraulic cone crushers or impact crushers—employing the principle of "laminated crushing"—for intermediate and fine crushing stages. The resulting aggregate features a cubic particle shape with low needle-and-flaky content and a rational gradation, meeting the material requirements for high-grade concrete.

4.  Eco-Friendly and Sustainable: The entire process features a sealed design, with key dust-generating points equipped with high-efficiency pulse bag dust collectors; dust emission concentrations remain well below the national standard of 30 mg/Nm³. The equipment operates with low noise levels, achieving a harmonious balance between environmental protection and production efficiency.

5.  Convenient Maintenance; Low Operating Costs: The equipment features a modular design, and critical wear parts are fabricated from ultra-wear-resistant materials (such as high-chromium cast iron blow bars and mantle liners). This ensures a long service life and facilitates easy replacement, thereby effectively reducing long-term operating and maintenance costs.

Sample Technical Specifications for Core Equipment (Medium-to-Fine Crushing Stage – Multi-Cylinder Hydraulic Cone Crusher)

Note: The above parameters are examples; specific model selection must be determined based on material properties and final product requirements.

IV. Relevant Success Stories

•   Case Study 1: Limestone Quarry of a Major Cement Group in East China

◦   Requirement: To construct an aggregate production line to complement their existing cement production line; required an hourly output of 400 tons, with the finished product intended for use in commercial concrete.

◦   Solution: Configured a stationary production line featuring a combination of: "Vibrating Feeder + Jaw Crusher (Coarse Crushing) + Multi-Cylinder Hydraulic Cone Crusher (Medium Crushing) + Vertical Shaft Impact Crusher (Shaping & Sand Making) + Multi-Layer Circular Vibrating Screen."

◦   Outcome: The production line operates stably, and the finished aggregate exhibits excellent particle shape, with a needle-and-flaky content of less than 8%. This fully meets the requirements of commercial concrete mixing plants and has helped the client successfully expand their sand and aggregate business segment.

•   Case Study 2: National-Level Highway Project in Southeast Asia

◦   Requirement: The project involved setting up multiple temporary material yards along the highway route; equipment was required to be capable of rapid relocation to supply graded crushed stone for the road's base layer.

◦   Solution: Provided two sets of combined mobile crushing and screening units, each consisting of: "Track-Mounted Mobile Jaw Crusher + Track-Mounted Mobile Cone Crusher + Track-Mounted Mobile Screening Station."

◦   Outcome: The mobile stations demonstrated exceptional flexibility and mobility, moving forward in tandem with the project's construction progress. Installation and commissioning at a new site could be completed within just three days, thereby significantly safeguarding the construction schedule and saving substantial costs on temporary infrastructure and transportation.

V. Recommended Ancillary Equipment

To achieve optimal performance for a 400-ton/hour aggregate crushing plant, we recommend the following combination of core equipment:

1.  Coarse Crushing Equipment: PE-1200×1500 Jaw Crusher or Track-mounted Mobile Jaw Crushing Station

◦   Features: Large feed opening and powerful crushing force; serves as the "primary crusher" of the production line.

2.  Medium & Fine Crushing Equipment: HCP500/HCS400 Multi-cylinder Hydraulic Cone Crusher or Wheel-mounted Mobile Cone Crushing Station

◦   Features: Utilizes a laminated crushing principle; offers high output, excellent product shape, and long service life for wear parts—making it key to producing high-quality aggregates.

3.  Shaping & Sand Making Equipment: HVI-0850 Vertical Shaft Impact Crusher (Sand Maker)

◦   Features: Combines both crushing and shaping functions; particularly suitable for producing manufactured sand, yielding finished products with a rounded shape and continuous gradation.

4.  Screening & Conveying Equipment: 3YKH3070 Heavy-duty Circular Vibrating Screen, TD Belt Conveyor System

◦   Features: High screening efficiency and large processing capacity; the conveying system features a sealed design to minimize dust generation.

5.  Intelligent & Eco-friendly Systems: PLC Central Electrical Control Cabinet, PPC Series Air-box Pulse Bag Dust Collector

◦   Features: Ensures automated operation, facilitates clean production, and meets environmental compliance requirements.

VI. Frequently Asked Questions (FAQ)

Q1: What is the approximate total power consumption of this 400 t/h production line? Does it place high demands on the power grid?

A1: The total installed power capacity for the entire production line (including all main machines, screening, conveying, and dust removal equipment) typically ranges between 1200 kW and 1500 kW. We recommend utilizing a high-voltage (e.g., 10 kV) incoming line, which is then stepped down via a transformer to supply power to the various equipment units. During the initial design phase, our engineers will provide a detailed electrical load list and assist you with power planning.

Q2: How long does it typically take from the arrival of the equipment on-site to the completion of installation and commissioning?

A2: For stationary production lines, assuming the civil engineering foundations have been completed in advance, the installation and mechanical commissioning period typically takes approximately 45 to 60 days. For mobile production line configurations—due to their high degree of integration—only simple site leveling is required; system commissioning can be completed, and trial production initiated, within just one week. The specific project timeline will ultimately depend on the complexity of the production line and the prevailing site conditions.

Q3: What is the service life of the equipment's wear parts (such as blow bars and mantle liners)? Is their replacement convenient?

A3: The service life of wear parts is closely correlated with the hardness and abrasiveness of the material being crushed. When processing limestone, the high-chromium cast iron blow bars or mantle liners we utilize typically offer a service life ranging from 6 to 12 months. The design of all our equipment prioritizes ease of maintenance; features such as hydraulically actuated inspection covers and integrated lifting mechanisms allow for the replacement of wear parts to be completed within just a few hours, thereby minimizing downtime.
