C120 Jaw Crusher

C120 Jaw Crusher

Capacity : 400-500t/h

Motor : 160kw

Applied materials : Suitable for crushing various soft and hard ores with compressive strength not higher than 320MPa, such as river pebbles, mountain rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, artificial sand from stone chips, etc..

Application fields : C-series Jaw crushers are widely used in industrial sectors such as metallurgy, mining, building materials, highways, railways, water conservancy, chemicals, cement, construction, refractory materials, and ceramics.

About of C120 Jaw Crsuer

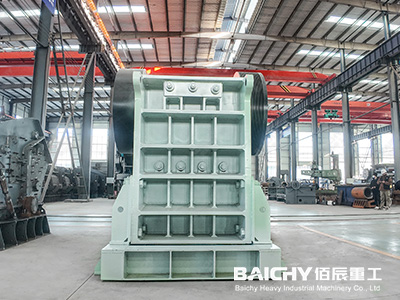

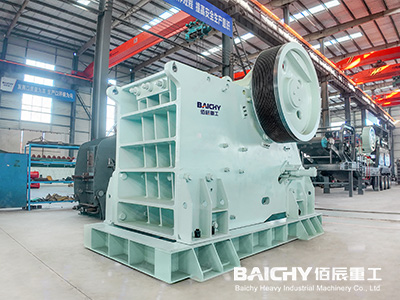

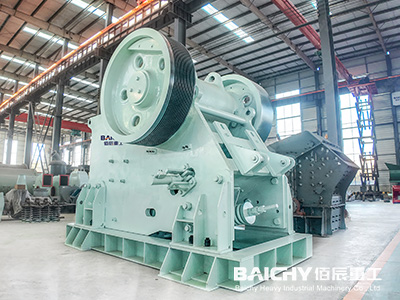

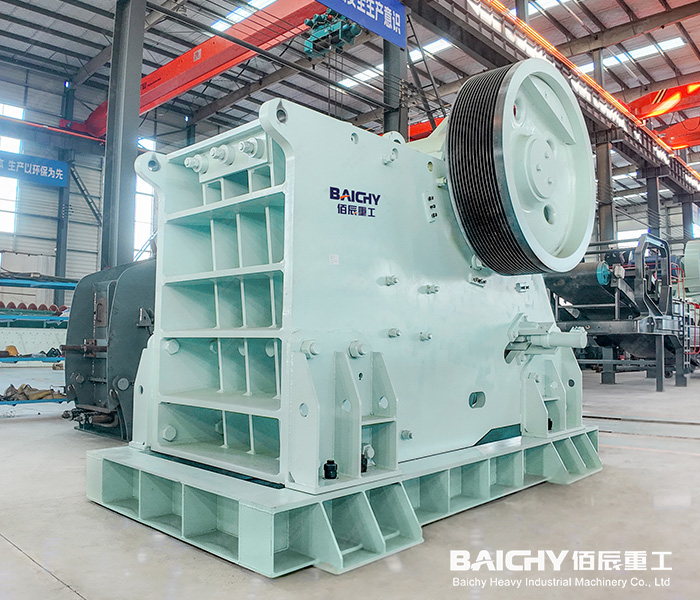

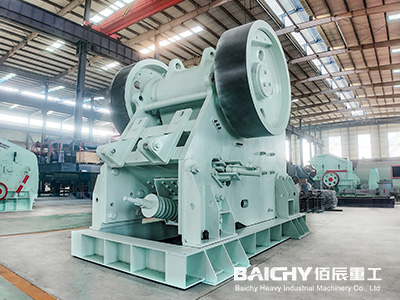

C120 jaw crusher is a coarse crushing equipment designed for high-intensity crushing operations. It is suitable for primary crushing of high-hardness materials such as granite, basalt, iron ore, etc. With its high processing capacity of 200TPH, optimized crushing chamber design and low energy consumption operation, C120 jaw crusher is widely recognized in the fields of mining, sand and gravel aggregates, construction waste treatment, etc.

1. Core advantages

• Efficient crushing: deep chamber design + large feed port to improve crushing efficiency and reduce the risk of blockage.

• Sturdy and durable: high manganese steel jaw plate + heavy-duty frame, adapt to harsh working conditions, and extend life by 30%.

• Intelligent adjustment: hydraulic adjustment of the discharge port, easy operation, and reduced downtime.

• Energy saving and environmental protection: optimized power system, energy consumption reduced by 15%, in line with green mine standards.

2. Applicable scenarios:

• Coarse crushing of raw stones in mines (granite, basalt, iron ore, etc.)

• Primary crushing of sand and gravel aggregate production line

• Regeneration and crushing of construction waste

Technical Parameters of C120 Jaw Crsuer

Model	C120
Feeder Opening Size(mm)	870×1200
Max. Feeding Size(mm)	780
Outlet adjusting Range(mm)	70-200
Centrifugal Shaft Speed(rmp)	230
Motor Power(kw)	160
Capacity(t/h)	400-500
