SRM1500 Vertical Rolling Miller

2022-05-17 17:49:26
Baichy
plays
Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

According to the customer's detailed specifications, we are pleased to offer our Vertical mill system SRM1500-3 for the recommendation, detailed scope below.


Equipment List
No. Equipment Model Motor(kw)
1 Vertical Rolling Mill  SRM1500 280
2 Bucket elevator TH400 11
3 Electric-vibrating Feeder GZ3F 0.2
4 Dust Collector LQM96-8 -
5 Blower 9-26-12.5D 250

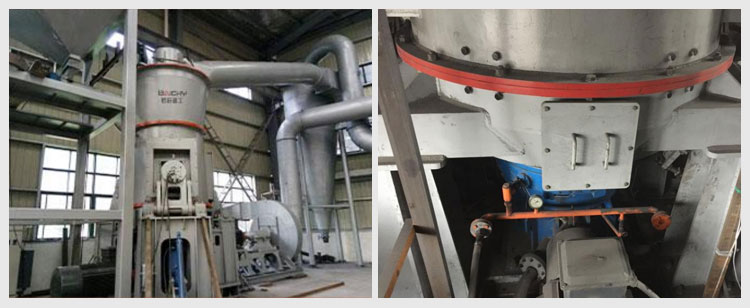

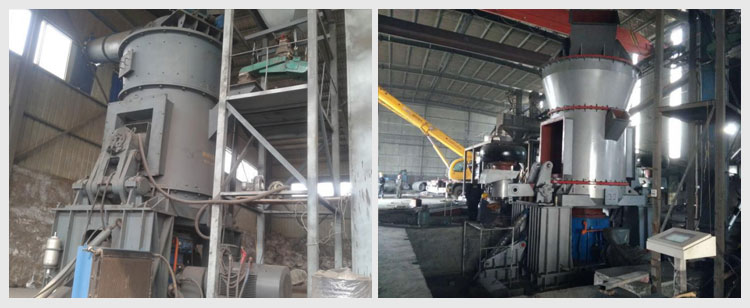

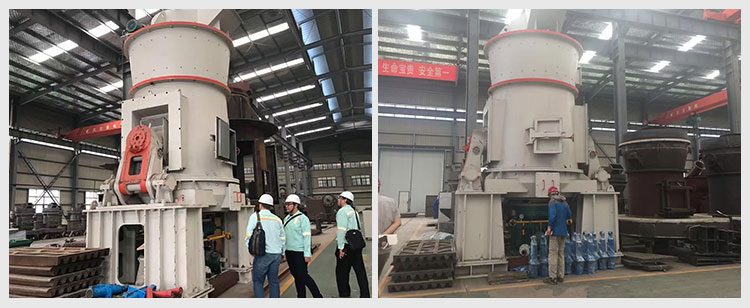

The vertical roller mill integrates crushing, grinding, powder concentration, drying, and conveying. It can be widely used in cement, power, metallurgy, chemical industry, and non-metallic mineral. It is used to grind granular and powdered materials into powder.

Vertiacl roller mill
Name Main Grinder
Model srm1500-3
Grinding Roller Diameter 1100mm
Grinding Roller Center distance 1500mm
Grinding Plate diameter 1900mm
Number of grinding roller 3pc
Maximum feed grain size <40mm
Processing capacity (t / h) 50t/h




A bucket elevator is a piece of straight conveying equipment for upward transporting powder, granular, small granular material. It is suitable for different working conditions and applied in many industrial sectors widely.

Name Bucket elevator
Model TH400
DOO-WIDE 400mm
Doo-distance 560mm
Speed 1.25m/s
Largest size 55mm
Main round of speed 47r/min



Electric-Vibrating Feeder is used to feeding the materials evenly and quantificationally from the hopper or other storage.



Name Vibrating Feeder
Model GZD3
Input size <70mm
Handing capacity

25-50t/h

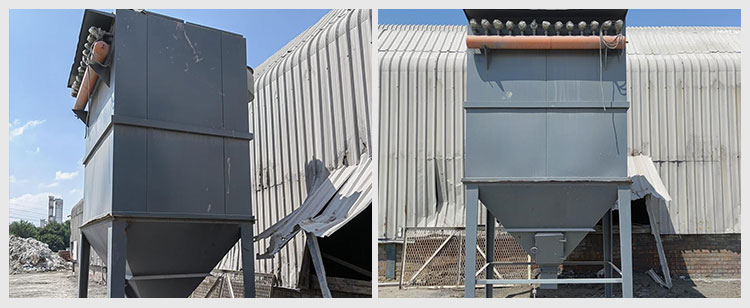

The dust collector is applied in air purification and material recovery in metallurgy, electric power, building materials, mine, cement, chemical engineering, carbon black, asphalt concrete mixing, boiler, and other industries.




Name Dust Collector
Model LQM96-8
Blowing rate Q=53000m³/j
Filter area S=744m²
Exports dust content 0.05g/m³

The Blower is the middle-end blowing equipment of the dust collector.

Name Blower
Model 9-26-12.5D
Air quantity 53000m³/h
Air pressure 12000pa

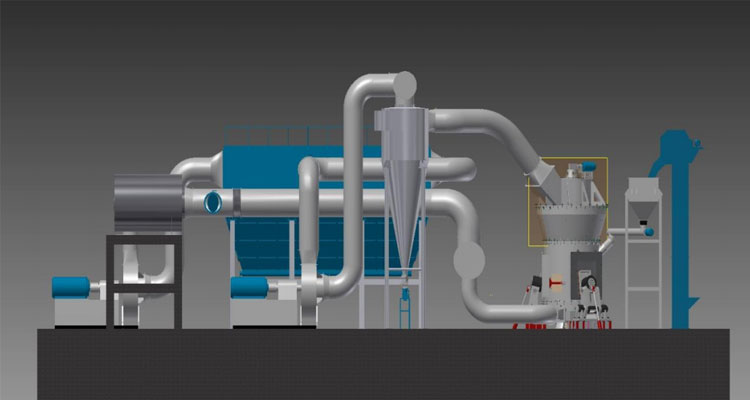

SRM1500 Vertical Rolling Miller Process flow




1.Feeding Parts:

The main motor drives the grinding disc to rotate through the reducer, and at the same time, the hot air enters the vertical mill from the air inlet, and the material falls into the center of the grinding disc through the feeding port.

2.Milling Parts:

When the roller table area is milled, the bulk material is directly crushed by the grinding roller, and the fine-grained material is extruded to form a material bed for inter-particle crushing. The pulverized materials continue to move to the edge of the grinding table until they are taken away by the strong airflow at the air ring. Among the materials carried by the airflow, the larger particles fall back to the grinding table under the action of their gravity and continue to be pulverized.

3.Separating Parts:

Then it enters the high-efficiency dynamic separator with the airflow for powder classification. Under the action of the high-efficiency dynamic separator blades, the materials that do not meet the fineness requirements are returned to the grinding disc for grinding, while the materials that meet the fineness requirements pass through the pipeline with the airflow. It enters the pulse dust collector for collection, and is discharged through the discharge device as the finished powder.

4.Discharging Part:

When the hard-to-grind debris such as iron blocks mixed with the material in the main machine moves to the edge of the grinding table with the material, it cannot be blown up by the wind due to its heavyweight, and falls into the lower chamber of the grinding machine to be scraped by the scraper installed at the bottom of the grinding table to discharge the slag. After opening, discharge it to the outside of the main unit.

5.Drying Parts:

Ideally, the crushed material with a certain humidity is easier to ground and crushed. During the operation of the main mill, the machine itself will generate an upward hot airflow. During this process, the materials with humidity below 10% are dried and achieve a drying effect.

Materials with substandard humidity and size fall back to the grinding table for regrinding and drying. Finally, The finished product is moist is not more than 1%mass.
