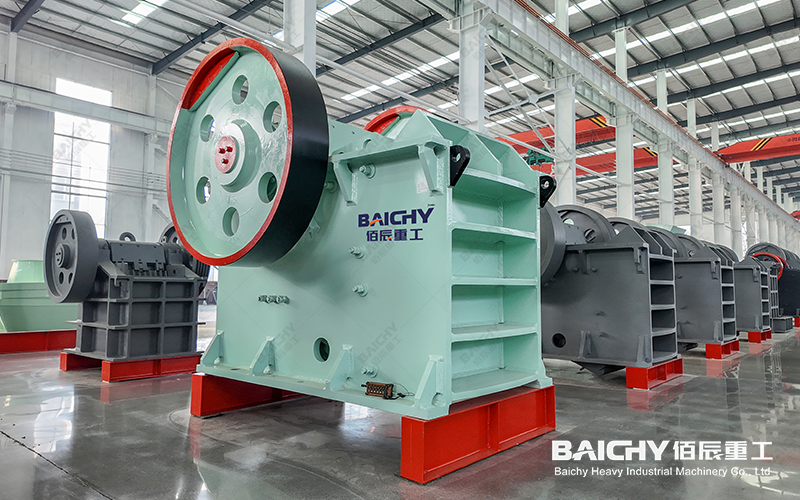

PE600x900 Jaw Crusher
In a sand and aggregate production line, the stability of the primary crushing stage directly determines the overall operational uptime of the entire line. As a flagship model in Baichy’s PE series, the PE600×900 Jaw Crusher—distinguished by its "deep, dead-zone-free chamber" and "exceptional compressive strength"—has become the preferred entry-point equipment for processing hard rocks such as granite, basalt, and river pebbles.
1. Performance Parameters and Application Scenarios
• Feed Size: Accommodates a maximum feed edge length of up to 500mm, providing a seamless interface for raw ore materials following blasting operations.
• Strength Limits: Specifically engineered for materials with a compressive strength of ≤320MPa, covering over 95% of all industrial ores.
• Processing Capacity: Features a robust discharge adjustment range (65–160mm), ensuring optimal load distribution for downstream secondary crushing equipment.
2. Why is the Baichy PE Series More Durable?

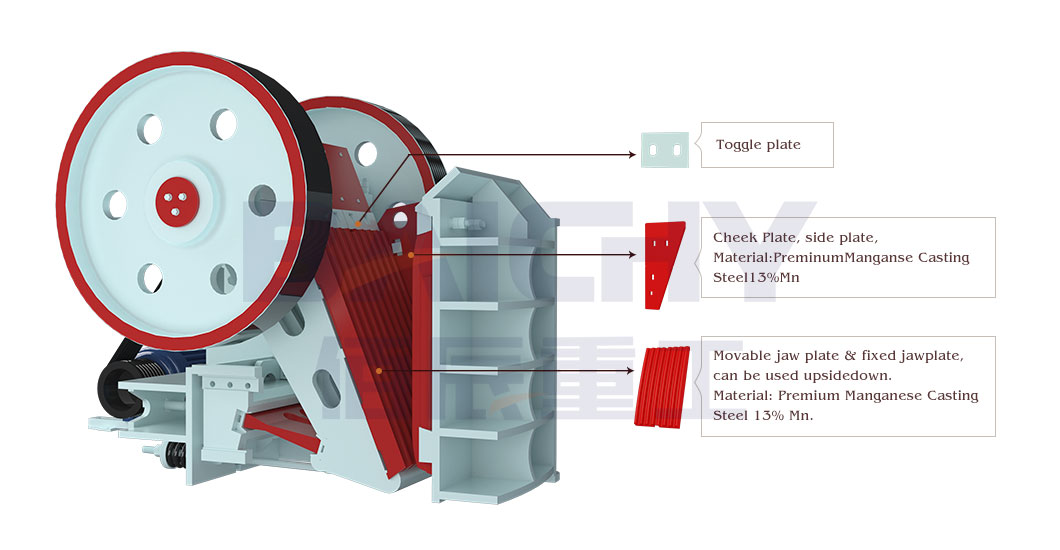

Structural-Diagram-of-the-PE600x900-Jaw-Crusher
• V-Shaped Crushing Chamber Design (Deep Chamber, No Dead Zones): The PE600×900 employs an optimized chamber geometry featuring a wide feed opening and an intelligently angled crushing cavity. This design not only enhances the material's "bite" capability but also ensures "instant crushing upon entry," effectively eliminating the risk of "choking" (material blockage) caused by material accumulation.
• High-Strength Materials and Moving Jaw Assembly: We understand that the critical pain point for jaw crushers is "wear and tear." Baichy utilizes high-manganese steel castings for its liner plates and employs heavy-duty forged alloys for the eccentric shaft assembly, ensuring structural integrity and resistance to deformation under high-frequency impact loads.
• Large-Inertia Flywheel Design: Equipped with a precisely balanced, heavy-duty flywheel, the machine effectively stores kinetic energy during the crushing cycle. This design not only reduces the load on the electric motor but also ensures a smoother operational curve, resulting in an energy-saving efficiency improvement of approximately 12%–15%.
3. The Evolutionary Path: From "Raw Ore" to "Aggregate"
In a typical modern sand and aggregate production line, the PE600×900 plays the role of the "pioneer." It is not merely a crusher; it serves as the fundamental quality assurance for the high-value-added products generated in the downstream processing stages.

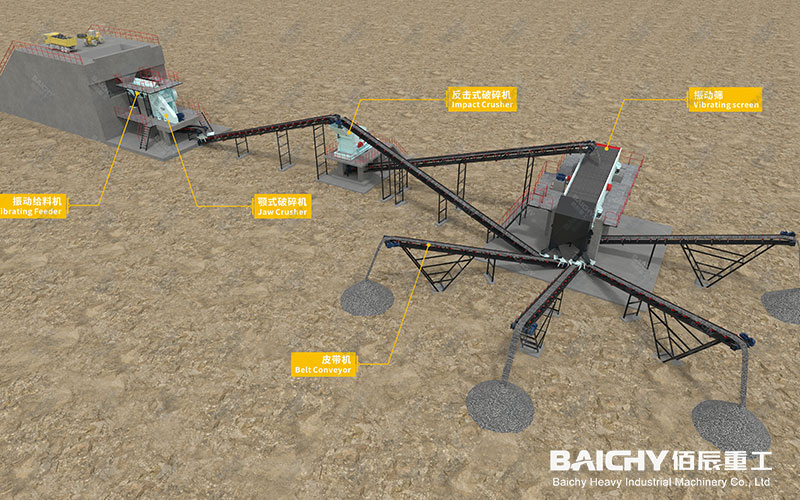

Jaw Crushing Plant
▶ Step 1 (Primary Coarse Crushing): The PE600×900 Jaw Crusher reduces large blocks of ore to a size of 100–150 mm or smaller.
▶ Step 2 (Secondary Medium/Fine Crushing): Materials proceed into either an Impact Crusher (suitable for limestone/soft rock, emphasizing superior particle shape) or a Cone Crusher (suitable for granite/hard rock, emphasizing high throughput).
▶ Step 3 (Screening and Washing): Materials are classified using multi-layer vibrating screens.
▶ Final Output: Production of high-quality sand and aggregate meeting the rigorous standards required for high-grade highways, railways, and water conservancy projects.
4. Regarding the Price of the PE600×900 Jaw Crusher
For mining investors, the "initial purchase cost of a single machine" is merely the tip of the iceberg; the "total lifecycle operating cost per ton" is the true core metric.
Currently, the market price range for the PE600×900 Jaw Crusher is influenced by the following three key variables:
• Motor Configuration: Standard motor vs. high-efficiency, protected motor.
• Configuration Type: Fixed production line vs. integrated tire-mounted mobile crushing station.
• Spare Parts Package: Inclusion of an additional wear-parts kit (jaw plates, side guard plates, etc.).
• Reference Range: Baichy consistently adheres to a "no-premium" pricing strategy. Based on current raw material fluctuations and technical specifications, the standalone price of the PE600×900 offers exceptional value for money, typically ranging from tens of thousands to just over one hundred thousand RMB.
Expert Advice: Do not compare price figures blindly. We recommend contacting our engineers to obtain a comprehensive quotation that includes foundation layout drawings, installation guidance, and a wear-parts plan designed for 2,000 hours of operation.
Contact Baichy Heavy Industry—turning every rock into a source of value.
In-Depth Answers: PE600×900 Jaw Crusher Frequently Asked Questions (FAQ)
Addressing the practical pain points encountered in mining operations and aggregate processing, here are the technical details you may be interested in:
Q1: Can the PE600×900 process high-hardness materials such as granite or basalt?
Answer: Absolutely. The compressive strength of granite typically ranges between 100 and 250 MPa, whereas the Baichy PE600×900 is designed with an upper limit of 320 MPa. It serves as the "standard-issue" primary crushing equipment for hard rock crushing production lines. Its high-manganese steel movable jaw and deep-cavity structure are specifically optimized for hard, highly abrasive materials, effectively preventing structural fatigue during the crushing process.
Q2: Jaw plates (liner plates) are wear parts; how often do they typically need to be replaced?
A: The replacement cycle depends primarily on the material's "hardness" and "silica content."
Standard Hardness (e.g., Limestone): With 8–10 hours of daily operation, high-quality high-manganese steel jaw plates typically have a service life of 4–6 months.
High Hardness/High Silica (e.g., Granite, River Pebbles): The service life may be reduced to 2–3 months.
Baichy Recommendation: Our jaw plates are designed to be reversible; when the upper section becomes heavily worn, the plate can be inverted to continue use, thereby extending its overall service life by 30%–50%.
Q3: What factors influence the actual hourly output of the PE600×900?
A: The theoretical output range for this model is between 50 and 160 tons per hour. The primary variables affecting this range include:
Closed Side Setting (CSS): The smaller the discharge opening (e.g., 65 mm), the lower the output, but the higher the proportion of fine-grained material; conversely, setting it wider (e.g., 160 mm) allows the output to reach its maximum capacity.
Feeding Uniformity: We recommend installing a ZSW series vibrating feeder to ensure a continuous and uniform feed. This prevents "idling" (running empty) or blockages caused by manual feeding methods, thereby boosting overall operational efficiency by approximately 20%.
Q4: What should I do if my raw ore size exceeds 500 mm?
A: Never force oversized material into the crusher. The feed opening dimensions of the PE600×900 are 600 mm × 900 mm; we recommend limiting the maximum feed size to within 500 mm to ensure adequate "bite" clearance and proper engagement with the jaws. If the size of the raw ore generally exceeds 500 mm, we recommend upgrading to the PE750×1060 model or performing secondary blasting/crushing at the mining site to protect the main bearings from damage caused by instantaneous impact loads.
Q5: Does the installation of this equipment require a specialized foundation?
Answer: Yes. The jaw crusher generates massive reciprocating inertial forces during operation. For stationary production lines, Baichy provides standard construction drawings for a concrete foundation. If you require greater flexibility, we recommend integrating the PE600×900 unit into a mobile crushing station; utilizing a steel-structure base, this configuration eliminates the need for foundation construction, allowing for immediate operation and easy relocation.
