The 180–300 tons per hour (tph) mobile crushing production line is a highly efficient and flexible crushing solution that integrates both a mobile jaw crusher and a mobile impact crusher into a single unit. This combination fully leverages the primary crushing capabilities of the jaw crusher alongside the fine shaping functions of the impact crusher. Capable of processing various types of stone—including granite, limestone, and construction waste—with a compressive strength not exceeding 350 MPa, the system produces finished aggregates characterized by excellent particle shape and optimal gradation. Widely utilized in mining, construction waste processing, road construction, and similar fields, this solution is particularly well-suited for job sites requiring frequent relocation.
The total processing capacity is adjustable within the 180–300 tph range. We offer two proven configuration options—the PE600×900 + PF1214 (Economical Model) and the PE750×1060 + PF1320 (High-Efficiency Model)—to accommodate diverse budgetary constraints and production requirements.
The entire production line is integrated onto a mobile chassis, eliminating the need for fixed foundations or piling. This allows for rapid deployment to and withdrawal from job sites, significantly reducing material transport costs and site preparation time.
The combination of a jaw crusher and an impact crusher enables multi-stage crushing and shaping of materials, yielding high-quality aggregates with superior particle shape and controllable gradation (e.g., 0–5 mm, 5–10 mm, 10–20 mm, etc.).
Suitable for processing a broad spectrum of materials, including granite, basalt, limestone, pebbles, construction concrete waste, iron ore, gold ore, and more.
Equipped with a standard electrical control system, the unit offers simple operation and ensures stable, reliable performance.
| Capacity(t/h) | 200-320t/h | |
|---|---|---|
| Mabile 1 | YDPZ116-1242 | |
| Transportation size (mm) | 13000X2550X4150 | |
| Vibrating Feeder | ZSW1242 | |
| Jaw Crusher | CJ116 | |
| Beit convevor | B1000 | |

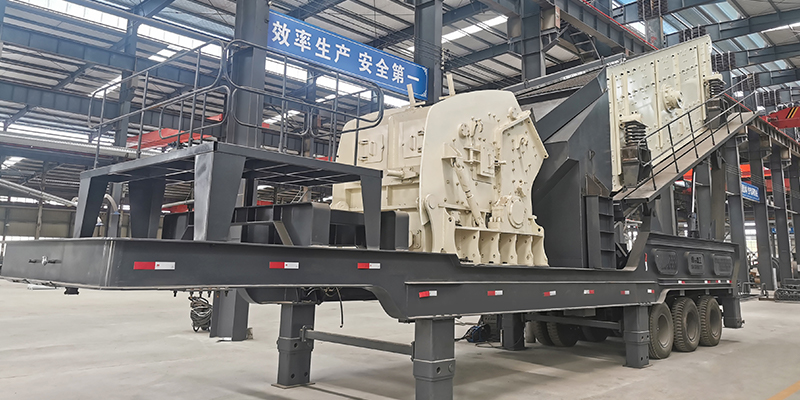

| Mobile 2 | YDPZ1320-2460 | YDPZ400-2460 |
| Transportation size (mm) | 14500x2980x7170 | 16500x2960x7170 |
| Crusher | PFW1320 | HP400 |
| Vibrating Screen | 3YK2460 | |
| Belt conveyor | B1000 | |
| Electric control (standard) | control box + control panel | |
| Support Leg (Standard) | 6 | |
A: This mobile crushing production line is suitable for processing various types of stone materials with a compressive strength not exceeding 350 MPa, including granite, basalt, limestone, pebbles, and more. It is particularly well-suited for projects requiring the production of finished aggregates in multiple size specifications—such as mining operations, construction waste (waste concrete) processing, road construction, and similar fields.
A: Adjustments to the production capacity are primarily achieved through the following methods:
• Adjusting the discharge opening size of the jaw crusher.
• Replacing the blow bars (hammers) of the impact crusher with those of different specifications.
• Adjusting the clearance between the impact plates and the rotor of the impact crusher.
• Varying the feeding speed.
• Configuring motors with different power ratings.
Through these adjustments, the total processing capacity of this combined production line can be controlled within the range of 180 to 300 tons per hour.
A: Based on typical energy consumption data provided in the documentation (using a processing capacity of 250 t/h as an example):
• Electrical Energy Consumption:
◦ Jaw Crusher Unit: Approximately 25–35 kWh/ton.
◦ Impact Crusher Unit: Approximately 18–28 kWh/ton.
• Fuel Consumption (when operating without an external power supply, utilizing a diesel generator):
◦ Diesel Generator Fuel Consumption: Approximately 12–18 liters/ton.
• Total System Power: The total power requirement for the entire system is approximately 400–600 kW.
A: The quality of the finished products is primarily controlled through the following methods:
• Adjusting the clearance between the blow bars and the impact plates of the impact crusher (typically offering 3–5 adjustable settings).
• Installing screen meshes with different aperture sizes.
• Adjusting the rotational speed of the rotor. Through the aforementioned adjustments, finished aggregates with good gradation can be produced. The document provides a typical example of the finished product gradation: 0–5 mm (30%), 5–10 mm (25%), 10–20 mm (20%), 20–40 mm (15%), and over 40 mm (10%).
