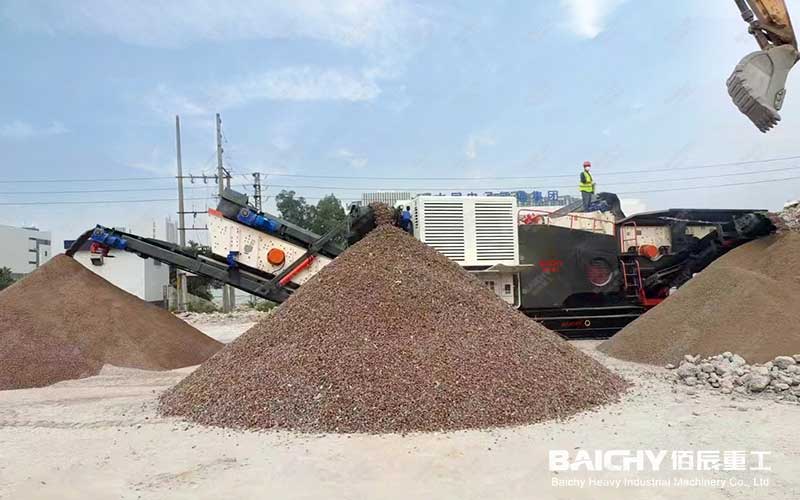

YMC 120 Mobile Jaw Crusher
In mining, construction waste recycling, road construction, and other fields, efficient and reliable crushing equipment is the core of the production line. As a mineral processing equipment manufacturer with 20 years of experience, we deeply understand the unique challenges that different materials pose to crushing processes. Today, we will delve into one of our star products the YMC 120 mobile jaw crusher to explore how its superior adaptability and stability make it an ideal choice for crushing a variety of materials.
Core Advantages: Why can the YMC 120 handle perse materials?
The YMC 120 mobile jaw crusher is not just a simple piece of equipment; it is the culmination of our twenty years of technological accumulation and market insights. Its design was specifically intended to address the core pain points users encounter when crushing materials of varying hardness, viscosity, and moisture content, such as low efficiency, easy clogging, and rapid wear.

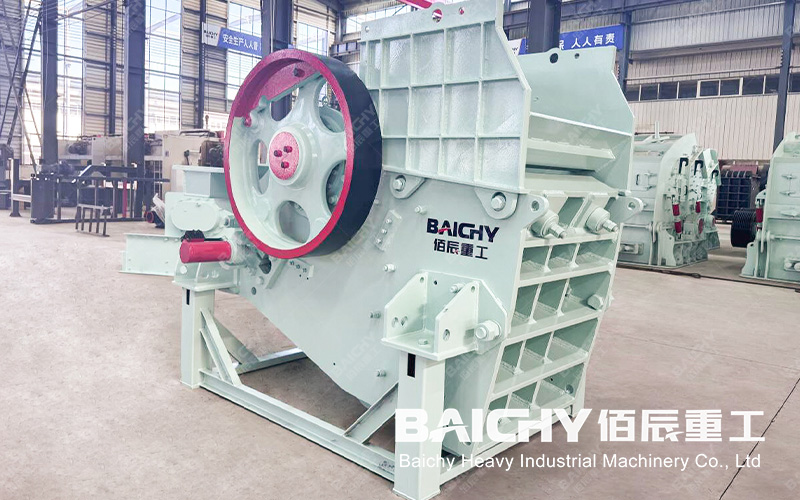

Jaw Crusher Main Unit
1. Powerful Heart: Jaw Crusher Main Unit
The equipment is equipped with a specially optimized deep-cavity jaw crusher. The moving jaw uses high-strength and wear-resistant materials, ensuring strong crushing force and a long service life even when dealing with high-hardness materials (such as granite and basalt).
2. Flexible Mobility: Integrated Vehicle System
The YMC 120 features an integrated unit design, combining feeding, crushing, and conveying. Its tracked or wheeled mobile chassis allows for easy access to work sites, making it particularly suitable for rapid relocation in complex terrains such as mines and construction sites, achieving "crushing on demand, saving time and labor."
3. Intelligent Control System
Equipped with an advanced PLC control system and touchscreen, operators can easily adjust the discharge port size and monitor the equipment's operating status (such as speed, temperature, and pressure) in real time, ensuring the equipment always operates under optimal conditions and allowing for rapid adjustments to crushing strategies for different materials.
Practical Performance: YMC 120's Crushing Capacity for Different Materials
Below, we present a detailed table to visually demonstrate the superior performance of the YMC 120 in processing several common materials.
YMC 120 Crusher Performance Overview for Different Materials
| Material Type | Typical Representative | Compressive Strength (MPa) | Crushing Challenges | YMC 120 Solutions and Performance |
| High Hardness Rock | Granite, Basalt, Quartzite | 150-350 | Severe wear, high energy consumption | High-strength jaw plates and optimized cavity shape increase wear-resistant part life by over 30%, resulting in high crushing efficiency. |
| Medium Hardness Ore | Limestone, Dolomite, Iron Ore | 80-150 | Prone to powder production, cavity easily sticks. | Adjusting speed and stroke, optimizing discharge, effectively controlling over-crushing, and ensuring stable output. |
| Construction Waste | Concrete blocks, waste bricks and tiles, asphalt material | Uneven, contains impurities | Complex composition, may contain foreign objects such as reinforcing bars. | Heavy-duty feeder and pre-screening device separate impurities; the jaw crusher has strong overload protection and can handle instantaneously uncrushable materials. |
| River pebbles/cobblestones | Natural river pebbles | High abrasiveness | Extremely wear-prone to equipment | Key components throughout the line utilize ultra-wear-resistant materials, especially the jaw plates, significantly reducing maintenance costs while ensuring crushing force. |
| Industrial waste | Slag, steel slag | High abrasiveness, tough | May contain slight stickiness | High-power motor provides continuous power; the cavity design facilitates discharge, prevents adhesion and blockage, and ensures uniform output particle size. |
Note: Actual output and output particle size can be adjusted according to specific material characteristics and discharge port settings.
Beyond the equipment itself: The value we provide
Choosing our YMC 120 means you get more than just a machine:
• Full lifecycle service: Based on 20 years of experience, we provide comprehensive support from site planning, infrastructure advice, equipment installation and commissioning, to operation training, regular inspections, and rapid spare parts supply.
• Customized solutions: We understand that no two projects are exactly alike. Our engineers can provide you with the optimal configuration based on your specific material sample, target capacity, and final product specifications. • Continuous Technological Upgrades: We constantly apply the latest wear-resistant materials, energy-saving technologies, and intelligent control technologies to equipment iterations, ensuring your investment maintains its value and operates efficiently in the long term.
In a rapidly changing market, reliability and adaptability are the cornerstones of productivity. The YMC 120 mobile jaw crusher, embodying our 20 years of professional manufacturing commitment, is becoming a trusted partner for numerous customers worldwide in perse crushing operations, thanks to its powerful crushing capacity, excellent material adaptability, and unparalleled mobility. No matter the challenges you face, it is a solid support for improving production efficiency and reducing total operating costs.
Contact us today to obtain a customized material crushing solution and let the YMC 120 create greater value for your business!
