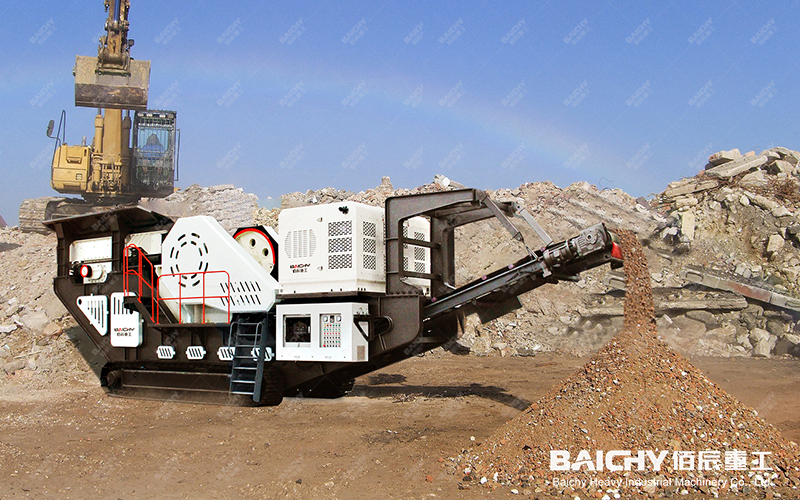

YMC 120 track-mounted crawler mobile jaw crusher working actively on an open-pit crushing site
In the global mining and mineral processing industry, maximizing production efficiency while containing operational and logistical expenses is the cornerstone of a project's financial success. For medium to large-scale quarries and mineral processing lines with demanding hourly throughput targets of 300 - 520 tons, securing a robust, highly stable primary crushing stage is absolutely essential.
As a prominent, premium heavy machinery manufacturer with over 20 years of manufacturing experience, Baichy Heavy Industry deeply understands the challenges our global clients face: severe machine downtime, strict environmental policies, high transportation costs of raw materials, and poor mobility in harsh terrains.
Today, we present an in-depth, professional evaluation of our flagship aggregate equipment: the YMC 120 track-mounted mobile jaw crusher plant, and explore why it stands as the peerless pioneer for high-efficiency primary crushing operations.
Why Choose the YMC 120 Track Mobile Jaw Crusher Plant?
The YMC 120 is not merely a conventional stationary jaw crusher placed on a vehicle chassis. Instead, it is an advanced, fully integrated mobile crushing solution meticulously engineered by Baichy Heavy Industry. It harmoniously combines a heavy-duty hydraulic jaw crusher, an automatic vibrating grizzly feeder with pre-screening capabilities, a high-rigidity heavy vehicle chassis, and an intelligent centralized PLC control system.
Core Engineering Advantages:
- Outstanding High Capacity: Safely delivers a stable throughput of 300-520 TPH, effortlessly satisfying the aggregate supply demands of large-scale open-pit mining operations and high-speed infrastructure constructions.
- Unparalleled Mobility and Crawler Adaptability: Equipped with a heavy-duty crawler track chassis, the plant moves seamlessly alongside the blasting face. This eliminates the need for expensive mining truck transportation, reducing haulage costs.
- Optimized Crushing Chamber Geometry: Features a massive 1200mm × 800mm feed opening and an aggressive crushing angle, achieving high reduction ratios and excellent output grain shape.
- Dual Power Drive System: Configured to run on external industrial AC power grids or onboard heavy-duty diesel generators, optimizing energy costs under changing fuel availability.
- Rapid Deployment & Ready-to-Use: No concrete foundation or heavy anchoring is required. The plant can be fully commissioned within hours of arrival at the site.

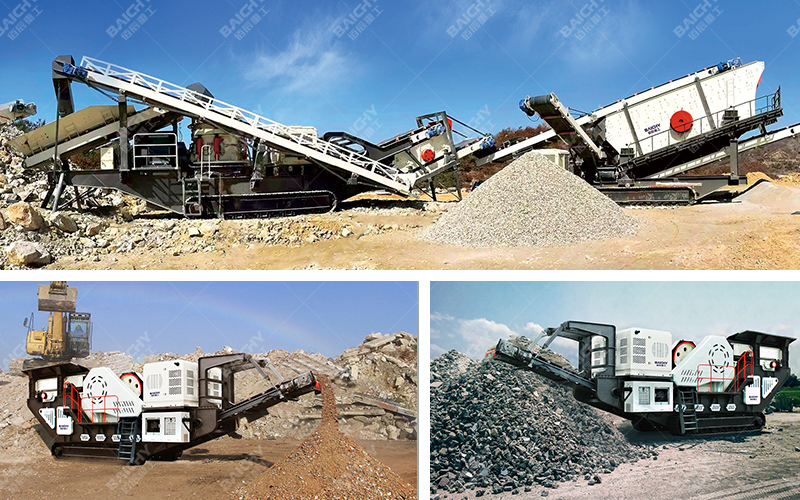

Crawler-mounted jaw crushing plant processing high-hardness granite for aggregates production
In-Depth Technical Parameters & Specifications Table
To assist quarry owners and mining engineers in assessing compatibility with their current operations, the technical department of Baichy Heavy Industry has compiled the official engineering specifications for the YMC 120 plant:
| Specification Parameter | YMC 120 Technical Details & Capabilities |
|---|---|
| Manufacturer Brand | Baichy Heavy Industry (20+ Years Global Export Experience) |
| Core Primary Crusher Model | Heavy-duty C Series European-type Jaw Crusher |
| Feed Opening Size | 1200 mm × 800 mm |
| Maximum Feed Size | ≤ 750 mm (raw rock aggregates) |
| Rated Processing Capacity | 300 - 520 TPH (Tons Per Hour depending on stone hardness and setting) |
| Discharge Opening Range | 75 mm - 200 mm (hydraulically adjustable via remote control) |
| Chassis Structure | High-torque crawler/track-mounted chassis for superior off-road maneuverability |
| Power Configuration | Diesel-electric dual power drive (standard Cummins diesel generator or grid electricity) |
| Transport Dimensions (L × W × H) | Approximately 16.5m × 3.0m × 4.2m (compact design for rapid relocation) |
| Standard Auxiliary Equipment | Vibrating grizzly feeder with integrated pre-screening, folding discharge belt, overload protection |
High-Performance Application Scenarios
The YMC 120 crawler-mounted mobile jaw crusher delivers excellent productivity across multiple heavy industries:
| Industry Sector | Specific Application & Customer Value |
|---|---|
| Metal & Non-Metal Mining | Serves as the primary coarse crushing station in open-pit iron ore, copper ore, and gold mining. Follows the excavators to reduce on-site heavy haulage costs. |
| Stone Quarries & Aggregates | Efficiently crushes hard rocks like granite, basalt, limestone, and river pebbles into clean, sharp-edged aggregate materials for infrastructure building. |
| Infrastructure Construction | Supplies continuous crushed concrete and sub-base aggregates on-site for major highways, high-speed rail lines, and large-scale water conservancy dams. |
| C&D Waste Recycling | Processes massive demolition concrete blocks, masonry, and asphalt on-site, converting construction waste into premium recycled gravel products. |
Baichy Heavy Industry: 20 Years of Global Mining Engineering
At Baichy Heavy Industry, our relationship with clients extends far beyond standard machinery delivery. With two decades of engineering excellence and hundreds of successful tracking cases in over 80 countries, we provide our partners with:
- Tailored Geological Crushing Solutions: We customize the YMC 120 configurations (such as crushing cavity geometry and feeder spacing) to match the specific compressive strength and moisture profile of your stones.
- End-to-End Field Services: From initial site evaluation, equipment layout mapping, to hands-on operator training and complete mechanical commissioning.
- Seamless After-Sales Supply Chain: Our global inventory guarantees that wear-resistant jaw plates, cheek plates, and toggle plates are delivered promptly, minimizing runtime losses.
In modern aggregate operations, investing in high-capacity mobile plants like the Baichy YMC 120 directly translates to lowered operating budgets and increased daily profits. Contact our engineering team today to receive a free layout blueprint and real-world aggregate crushing project cases.
Frequently Asked Questions (FAQ) about Mobile Jaw Crushers
Q1: What is the exact hourly production capacity of the Baichy YMC 120 mobile jaw crusher?
A1: The YMC 120 mobile jaw crusher plant delivers a highly stable production capacity of 300 to 520 TPH (tons per hour). The actual capacity varies depending on the feed stone's compressive strength (e.g., hard granite vs. soft limestone) and your chosen discharge opening settings (ranging from 75mm to 200mm).
Q2: How does the track-mounted crawler chassis reduce overall mining project costs?
A2: The track-mounted crawler design allows the YMC 120 to move dynamically as the mine's blasting face advances. Instead of using heavy mining dump trucks to transport large boulders over long distances to a stationary crusher, the excavator feeds the YMC 120 directly on-site. This significantly cuts diesel costs, truck wear-and-tear, and civil construction fees for permanent foundations.
Q3: What hard minerals can the Baichy YMC 120 primary crushing plant process?
A3: Backed by its premium alloy jaw dies and high-torque mechanical design, the YMC 120 easily processes a wide variety of hard and abrasive rocks. Key materials include basalt, granite, silica sand, quartzite, iron ore, copper ore, gold-bearing rock, river pebbles, limestone, and recycled industrial concrete.
