Display of Finished Marble Powder Products
Marble, a metamorphic rock composed mainly of calcium carbonate (CaCO₃), is one of the most versatile industrial minerals on earth. When processed into fine powder, marble becomes a high-value raw material used across paper, plastics, rubber, paints, coatings, adhesives, and construction industries. The equipment that turns raw marble stone into commercial powder is the marble grinding mill, also known as a marble grinder or marble grinding machine.
Choosing the right marble grinding mill is the single most important decision in any marble powder production line. The wrong marble grinder leads to low capacity, poor fineness, high energy consumption, and frequent downtime. In this guide, we at Baichy Heavy Industry — a professional manufacturer of crushing, grinding, and beneficiation equipment — walk you through everything you need to know about selecting and operating a marble grinding mill.
Why a Dedicated Marble Grinding Mill Matters
Marble has a Mohs hardness of 3–4.5 and is relatively soft and brittle compared to granite or quartz. This makes it ideal for high-efficiency grinding, but it also demands specific engineering in the marble grinder.
- Soft material handling: The marble grinding machine must control feed size and prevent over-grinding that wastes energy.
- Fineness flexibility: Different applications need different mesh sizes, from coarse 80 mesh to ultra-fine 3000 mesh.
- Purity control: Iron contamination from grinding media degrades marble powder whiteness. A quality marble grinding mill minimizes metal wear.
The investment in the right marble grinding mill pays back through lower power cost, longer service life, and consistent product quality.
Main Types of Marble Grinding Mill
Baichy offers several proven marble grinding mill configurations. Understanding each type helps you match the equipment to your capacity and fineness needs.
1. Raymond Mill (R Series)
The Raymond mill is the most economical and widely used marble grinder for medium-fineness powder.
Raymond Mill
- Fineness: 80–325 mesh
- Capacity: 1–60 t/h
- Best for: General-purpose marble powder for construction, fillers, and coatings

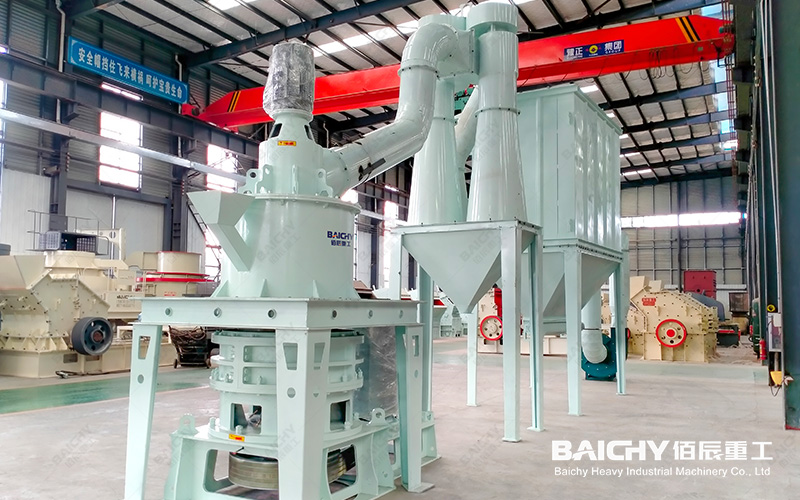

2. HGM Ultrafine Grinding Mill
The HGM series is the premium marble grinding mill for ultra-fine powder production.
HGM Ultrafine Grinding Mill
- Fineness: 325–2500 mesh (up to 3000 mesh)
- Capacity: 0.5–45 t/h
- Best for: High-value marble powder for paper coating, plastics, and advanced fillers

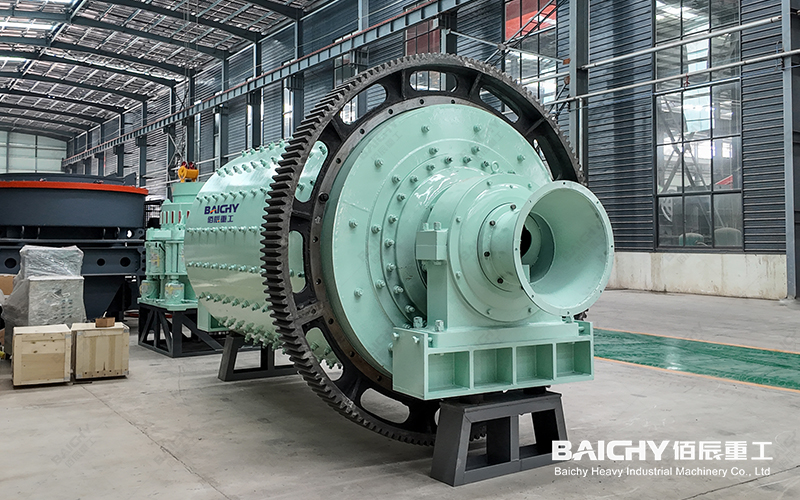

3. Ball Mill
A ball mill is a heavy-duty marble grinding machine for large-capacity, coarser grinding.
Ball Mill
- Fineness: 80–400 mesh (adjustable)
- Capacity: 1–100+ t/h
- Best for: Large industrial projects where throughput matters most

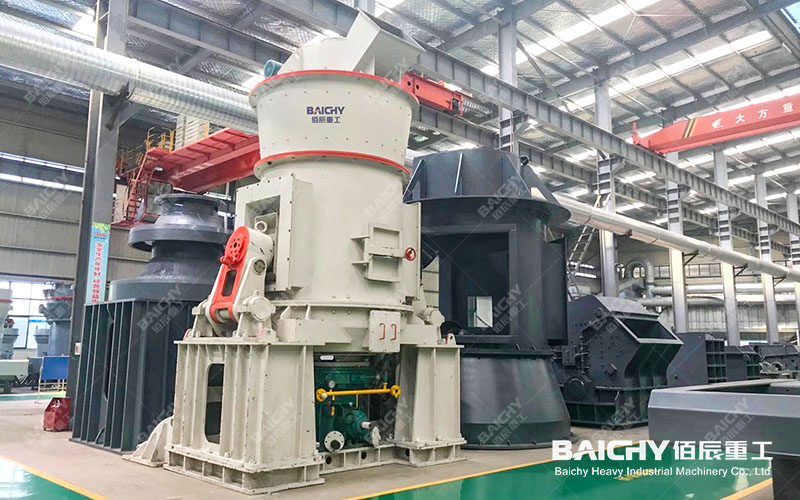

4. Vertical Roller Mill
The vertical roller mill offers excellent energy efficiency for large-scale marble grinding operations.
Vertical Roller Mill
- Fineness: 80–600 mesh
- Capacity: 5–200 t/h
- Best for: High-capacity integrated grinding systems
Marble Grinding Mill Parameter Table
Below is a representative parameter table for Baichy's marble grinding mill models. Actual specifications may vary by configuration; contact us for a customized quotation.
| Parameter | Raymond Mill (R) | HGM Ultrafine Mill | Ball Mill | Vertical Roller Mill |
|---|---|---|---|---|
| Feed size (mm) | ≤20–30 | ≤20 | ≤25 | ≤40 |
| Output fineness (mesh) | 80–325 | 325–2500 | 80–400 | 80–600 |
| Capacity (t/h) | 1–60 | 0.5–45 | 1–100+ | 5–200 |
| Main motor power (kW) | 15–132 | 37–400 | 45–900 | 75–560 |
| Applied material | Marble, limestone, dolomite | Marble, calcium carbonate | Marble, ores | Marble, cement, slag |
| Moisture (%) | ≤6 | ≤6 | ≤4 | ≤6 |
| Typical price range | Lower | Medium–High | Medium–High | High |
How to Choose the Right Marble Grinder
Selection is driven by four factors: capacity, fineness, material moisture, and budget.
Match Capacity to Your Production Target
Calculate your annual marble powder demand first. A marble grinding mill that is too small becomes a bottleneck; one that is too large wastes capital and energy. For example, a project needing 10 t/h of 325-mesh powder will perform best with an HGM or a medium Raymond marble grinder, not an oversized ball mill.
Match Fineness to End Application
- 80–200 mesh: Construction fillers, building materials
- 200–400 mesh: Rubber, plastics, general fillers
- 600–1250 mesh: Paper coating, paints
- 1250–2500 mesh: High-grade paper, advanced coatings, cable materials
The HGM marble grinding mill is the preferred choice when you need fineness above 600 mesh consistently.
Consider Moisture and Feed Size
Marble feed should have moisture below 6% for best grinding efficiency. Pre-crush marble to under 20–30 mm using a jaw crusher before feeding the marble grinding machine, reducing wear and boosting capacity.
Budget and Operating Cost
While the initial marble grinding mill price varies by model, total cost of ownership matters more. The HGM ultrafine marble grinder offers lower specific energy consumption per ton of ultra-fine powder, while the Raymond mill is the lowest-cost entry point.
Operating Tips for Higher Marble Grinding Efficiency
Getting the most from your marble grinding mill requires disciplined operation:
1. Control feed rate — maintain a steady, uniform feed to prevent mill overload.
2. Monitor fineness — use a classifier adjustment to hit your target mesh without over-grinding.
3. Maintain moisture — dry wet marble to below 6% moisture before grinding.
4. Check grinding media — inspect rollers, rings, and hammers regularly on your marble grinder.
5. Clean the air system — ensure the bag filter and blower run smoothly to keep throughput high.
Regular preventive maintenance can extend marble grinding machine service life by 30–50% and cut unplanned downtime significantly.
Why Choose Baichy Heavy Industry for Your Marble Grinding Mill
Baichy Heavy Industry is a professional manufacturer specializing in mining crushing, ore grinding, and beneficiation equipment. We design and supply the complete marble grinding mill solution:
- Full equipment range: Jaw crushers, Raymond mills, HGM ultrafine marble grinders, ball mills, classifiers, and dust collectors.
- Custom engineering: We size the marble grinding machine to your exact capacity, fineness, and site conditions.
- Turnkey service: From plant design and installation to commissioning and after-sales training.
- Global support: Our marble grinding mill solutions serve customers worldwide with responsive spare parts and technical support.
FAQ — Marble Grinding Mill
Q1: What is the difference between a marble grinding mill and a marble grinder?
A: They refer to the same machine. "Marble grinding mill" and "marble grinder" are interchangeable terms for equipment that grinds marble stone into powder. "Marble grinding machine" is also commonly used.
Q2: What fineness can a marble grinding mill achieve?
A: Depending on the model, a marble grinding mill can produce powder from 80 mesh up to 2500–3000 mesh. The HGM ultrafine marble grinder is best for 325–2500 mesh; the Raymond mill covers 80–325 mesh.
Q3: How much does a marble grinding mill cost?
A: The marble grinding mill price depends on model, capacity, and configuration. A small Raymond mill is the most economical option, while HGM ultrafine and vertical roller mills cost more but offer higher efficiency for fine powder.
Q4: What is the capacity range of a typical marble grinding machine?
A: Capacities range from about 0.5 t/h for small ultrafine mills to over 100 t/h for large ball mills and vertical roller mills. Choose a model that matches your annual powder production target.
Q5: Does Baichy provide complete marble powder production line solutions?
A: Yes. Baichy Heavy Industry supplies complete turnkey lines including crushers, marble grinding mill, classifiers, bag filters, and conveying systems, with installation and after-sales support.
