Cone Crusher Hydraulic System
A cone crusher hydraulic system does four jobs: it sets the discharge opening, releases tramp iron, clears a choked chamber and compensates for liner wear. Baichy builds both: one cylinder under the main shaft on the single-cylinder hydraulic cone crusher CH series, and 4 to 8 cylinders around the bowl on the multi-cylinder hydraulic cone crusher HP series.
What Does the Hydraulic System Do in a Cone Crusher?
The hydraulic system replaces the spring pack of a mechanical cone crusher with oil pressure, and it carries four functions: discharge opening adjustment, tramp iron release, cavity clearing and liner wear compensation.
| # | Function | What It Does | Published Figure |
|---|---|---|---|
| 1 | Discharge opening adjustment | Oil pressure positions the moving cone and sets the crushing gap | 3–60 mm on the CH series |
| 2 | Tramp iron release | Vents pressure so the moving cone drops past an uncrushable object | Automatic pressure relief |
| 3 | Cavity clearing | Lifts the moving cone to empty a choked chamber | One-button lift |
| 4 | Liner wear compensation | Closes the gap that worn liners open | Automatic, without stopping production |
Function 1: Discharge Opening Adjustment

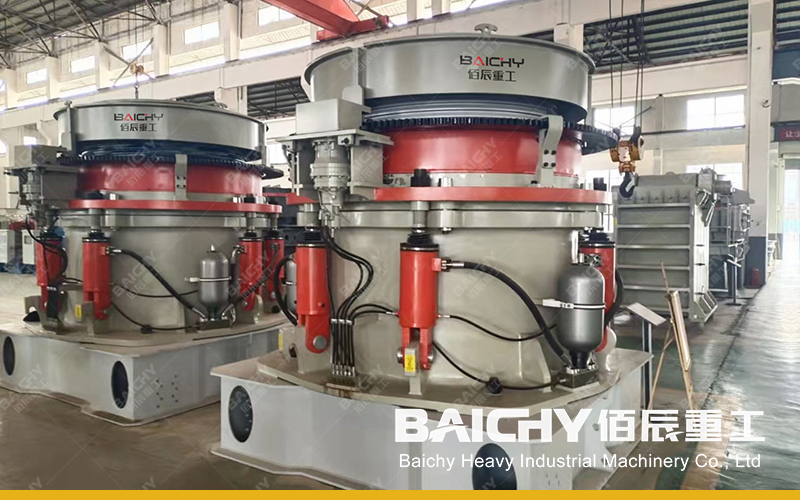

On a single-cylinder cone crusher the cylinder is integrated at the bottom of the main shaft and supports the main shaft and moving cone, so oil pressure sets the crushing gap directly, usually inside a published 3-60 mm range. On a multi-cylinder cone crusher, 4 to 8 cylinders hold the bowl and give one-touch adjustment.

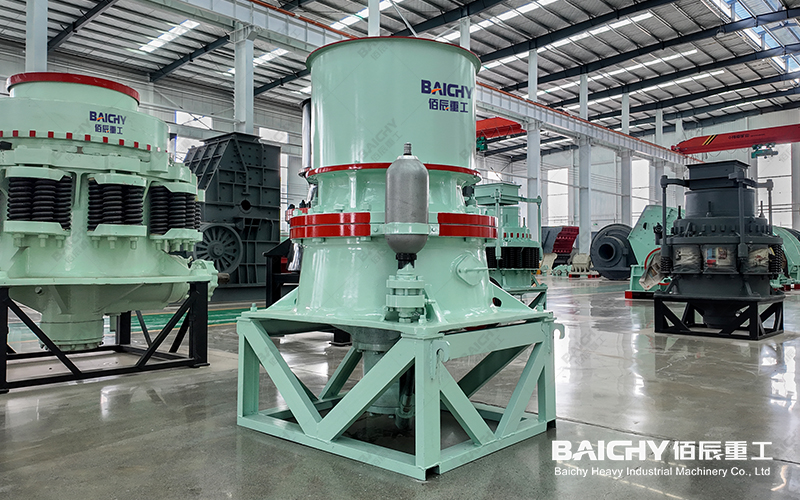

hydraulic cone crusher
• CH430 (DG200) spans 13-38 mm from Extra Coarse to Fine; CH660 (DG500) spans 16-51 mm.
• Discharge opening fluctuation is published within ±2 mm, keeping ball mill feed consistent and cutting grinding energy consumption by 10%-15%.
• A tighter opening costs throughput: HP200 cone crusher Fine at a 10 mm minimum is published at 90-190 t/h, against 145-250 t/h for HP200 Extra Coarse at 19 mm.
Function 2: Tramp Iron Release and Overload Protection
When an unbreakable object such as an iron block, a drill bit or a bucket tooth enters the chamber, the hydraulic system releases pressure and the moving cone descends to discharge it.
• Rapid tramp iron protection prevents unplanned downtime on feeds carrying mine waste rock.
• The accumulator buffers the impact force, reduces vibration and protects the core components.
• Hydraulics replacing the spring structure simplifies adjustment and cavity cleaning and cuts maintenance time by more than 50%.
Function 3: Cavity Clearing and Liner Wear Compensation
• Cavity clearing is the one-button lift of the moving cone that empties a choked chamber with the crusher stopped; liner wear compensation closes the gap that worn liners open during operation.
• Automatic compensation for liner wear removes the need to stop production for discharge setting adjustments, allowing 24-hour continuous operation on large aggregate lines.
• Published liner life is 8000-12000 hours with high manganese steel or composite alloy liners.
• Optional PLC control monitors main shaft position, hydraulic pressure and motor current.
How Does the Hydraulic System Differ Between Single-Cylinder and Multi-Cylinder Cone Crushers?
The difference is where the oil acts: one cylinder under the main shaft on the CH series, or 4 to 8 cylinders around the bowl on the HP series. Baichy publishes both arrangements as hydraulic cone crusher types.
| Aspect | Single-Cylinder (CH / DG Series) | Multi-Cylinder (HP / HPC Series) |
|---|---|---|
| Cylinders | 1, at the bottom of the main shaft | 4 to 8, coordinated |
| Discharge opening | Pressure positions the main shaft and moving cone | One-touch adjustment |
| Published adjustment | Usually 3–60 mm | Minimum opening 6–38 mm |
| Tramp iron release | Pressure vents, moving cone descends | Automatic pressure relief |
| Liner wear | Compensation not published separately | Automatic compensation, without stopping production |
| Published models | CH420 (DG100) to CH660 (DG500) | HP100 to HP800, five cavity types each |
| Installed power | 90–315 kW | 90–630 kW |
What Maintenance Keeps the Hydraulic System Working?
Oil cleanliness, oil temperature and seals decide whether a cone crusher hydraulic system holds its pressure; the cone crusher hydraulic system maintenance guide lists the targets and troubleshooting steps.
• Oil change interval: every 2,000 operating hours, extendable to 3,000-4,000 hours with a closed-loop oil tank and high-precision filters.
• Oil cleanliness: NAS Class 7 instead of NAS Class 10 cuts the risk of spool valve sticking by 90%.
• Oil temperature: 63°C with air-cooled control instead of 75°C doubles hydraulic oil service life.
• Seals: quarterly preventive replacement, not replacement on failure.
• Tropical sites: HV68 fluid instead of HV46, and fluororubber instead of standard rubber seals.

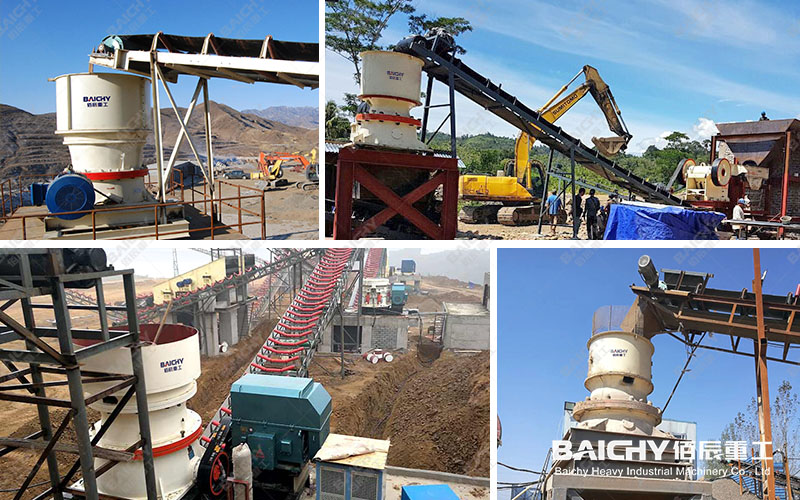

Single-cylinder cone crusher at a customer site
FAQ: Cone Crusher Hydraulic System
1. What does the hydraulic system do on a cone crusher?
It sets the discharge opening, releases tramp iron, clears a choked chamber and compensates for liner wear. One cylinder under the main shaft carries all four functions on the CH series; 4 to 8 cylinders do the same on the HP series.
2. How is the discharge opening adjusted on a hydraulic cone crusher?
By oil pressure. On a single-cylinder cone crusher the cylinder sets the position of the main shaft and moving cone, usually inside a published 3-60 mm range. On a multi-cylinder cone crusher, 4 to 8 cylinders adjust the bowl in one operation.
3. How often does the hydraulic oil in a cone crusher need changing?
Every 2,000 operating hours is the published interval; with a closed-loop oil tank and high-precision filter elements it extends to 3,000-4,000 hours.
4. Why is tramp iron protection important on a cone crusher?
Feeds carry uncrushable material - drill bits, bucket teeth, iron blocks. The hydraulic system vents pressure so the moving cone descends and passes the object, which prevents unplanned downtime and protects the crushing chamber.
