Continuous Feed Ball Mill 1500x5700 Manufacturer
The Continuous Feed Ball Mill 1500x5700 is a classic model in mining grinding operations. The 1500x5700 in the model number represents its cylinder diameter (1500mm) and length (5700mm), a specification that balances processing capacity and footprint in small and medium-sized mineral processing lines, making it widely used. As a mining crushing equipment manufacturer with 20 years of experience, we understand that continuous feed ball mills are key equipment for achieving continuous ore grinding and improving the automation and efficiency of the entire production line. Compared to intermittent ball mills, its core advantage lies in the continuous feeding of materials from one end, with powder meeting the required particle size continuously discharged from the other end, achieving 24-hour uninterrupted continuous operation.
Detailed Explanation of Core Advantages
The Continuous Feed Ball Mill 1500x5700 is highly favored by the market due to its numerous outstanding advantages:
1. Efficient Continuous Production: Eliminates the need for frequent shutdowns for loading and unloading, greatly improving equipment utilization and overall output, making it particularly suitable for integration with upstream crushing and downstream classification equipment to form an automated production line.
2. Uniform Grinding Particle Size: Thanks to the reasonable cylinder length-to-diameter ratio design, the material has sufficient residence time and movement path within the cylinder, ensuring thorough grinding and a more concentrated and uniform finished product particle size distribution.
3. Simple Operation and Maintenance: The structure is mature and reliable, employing advanced lubrication and transmission systems, reducing the complexity and frequency of daily maintenance. The optimized design of the feeding and discharge ends effectively prevents blockages and backflow.
4. Significant Energy Saving: The continuous working mode results in a relatively stable motor load, and combined with our energy-saving transmission design, the energy consumption per unit of product is effectively reduced compared to traditional equipment.
5. Strong Adaptability: It can process various hardness ore materials, and by adjusting parameters such as steel ball ratio and feeding speed, it can flexibly meet different grinding fineness requirements.

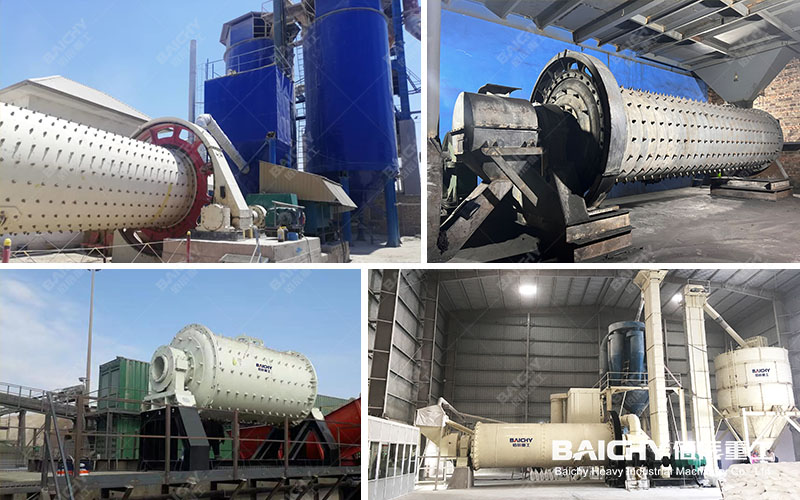

Ball mill customer site
Practical Application Case
In a renovation project of a medium-sized lead-zinc mine processing plant in Jiangxi, we equipped its core grinding section with a Continuous Feed Ball Mill 1500x5700. This equipment successfully replaced the two existing old intermittent ball mills. With the same installed power, the daily processing capacity increased by approximately 40%, and the product fineness remained stable at over 85% passing -200 mesh, fully meeting the flotation process requirements. The equipment seamlessly integrates with the upstream jaw crusher and downstream spiral classifier, achieving fully continuous automated operation in this section. The customer highly praised its stability and energy-saving performance.
Related Equipment Recommendations
To maximize the efficiency of the 1500x5700 continuous feed ball mill, we usually recommend integrating it into a complete crushing and grinding system. Recommended related equipment includes:
GZD series vibrating feeder: Provides stable, uniform, and controllable continuous feeding to the ball mill.
PE series jaw crusher: Performs efficient primary crushing, providing appropriately sized feed for the ball mill, achieving more crushing, less grinding, and reducing overall energy consumption.
Spiral classifier or hydrocyclone: Forms a closed-circuit system with the ball mill, promptly separating qualified fine particles from coarse return sand, improving the efficiency of the grinding system.
Frequently Asked Questions (FAQ)
Q1: What is the typical processing capacity of this 1500x5700 continuous feed ball mill?
A1: The processing capacity varies depending on factors such as material hardness, feed size, and required product fineness. Typically, for medium-hard ores, the processing capacity ranges from approximately 30-50 tons per day. Our engineers can test your specific material samples and provide more accurate capacity data.
Q2: Does the equipment delivery include installation, commissioning, and technical training?
A2: Yes. We provide a complete after-sales service package, including basic equipment instruction drawings, on-site engineer guidance for installation and commissioning until the equipment is in normal operation. We also provide comprehensive training for the customer's on-site operators and maintenance personnel on equipment operation, daily maintenance, and basic troubleshooting.
Q3: How should the grinding media (steel balls) in the cylinder be configured and replenished?
A3: When the new machine is delivered, we will provide an initial steel ball grading scheme (the proportion of steel balls of different diameters) based on your material characteristics. During operation, the steel balls will experience normal wear and tear, requiring regular shutdowns for inspection and replenishment. We will provide detailed estimates of steel ball consumption and recommended replenishment cycles in the operation manual. Customers can also determine whether adjustments to the steel ball ratio are needed by regularly sampling and analyzing the product particle size.
