Pebbles, these natural stones sculpted by rivers, lakes, and seas over millions of years, are hard, highly resistant to pressure, and low in impurities, making them ideal raw materials for producing manufactured sand and high-quality aggregates.
However, their high hardness and high silica content also pose significant challenges to processing equipment.
Choosing the right pebble crushing and processing equipment is crucial to production efficiency, finished product quality, and operating costs.

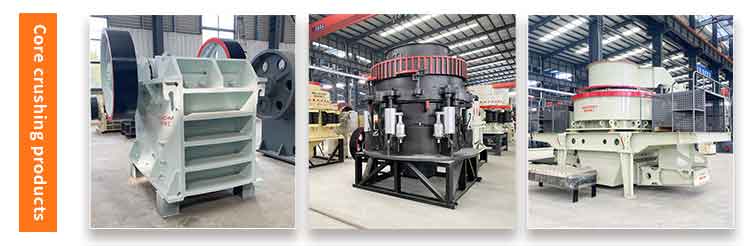

I. Core Equipment Analysis
An efficient pebble crushing production line typically consists of coarse-medium-fine crushing and shaping stages, with each stage's equipment performing its specific function.

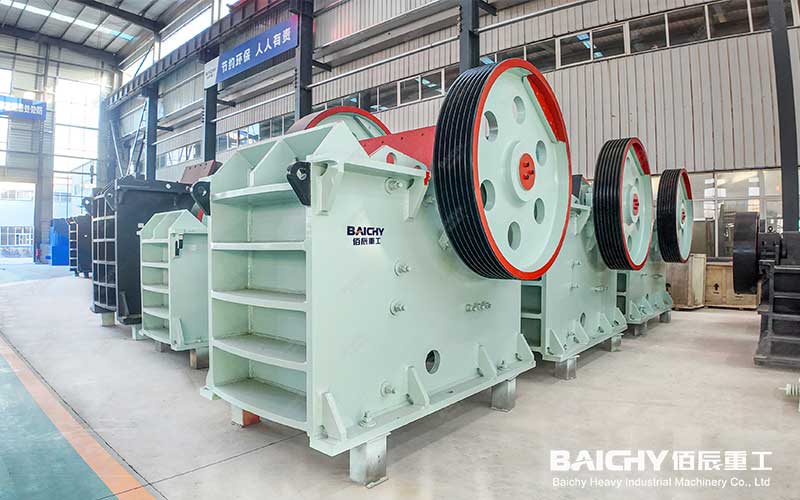

1. Coarse Crushing: Jaw Crusher
◦ Role: The "vanguard" of the production line, responsible for the first crushing stage.
◦ Working Principle: Utilizing two jaw plates, a moving jaw and a fixed jaw, mimics the chewing motion of an animal, powerfully crushing large pebbles.
◦ Advantages: Simple structure, reliable operation, large feed opening, easily handling pebbles with a diameter exceeding 1 meter, and extremely strong crushing force.

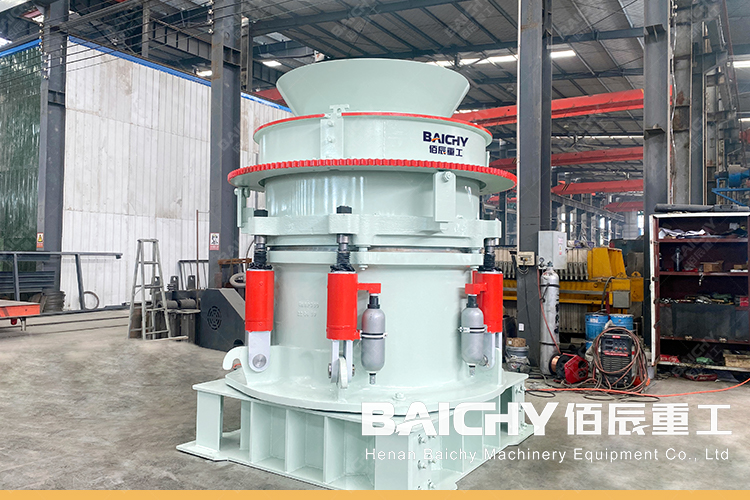

2. Core of Medium and Fine Crushing: Cone Crusher
◦ Role: The "backbone" of the production line, receiving stones from the jaw crusher for secondary crushing.
◦ Working Principle: Through the interlayer crushing between the moving and fixed cones, stones are continuously squeezed, impacted, and broken, ultimately forming small to medium-sized stones with uniform particle size.
◦ Advantages: Particularly suitable for crushing high-hardness materials such as pebbles; long wear-resistant parts life; stable operation; high efficiency; good finished product particle shape.

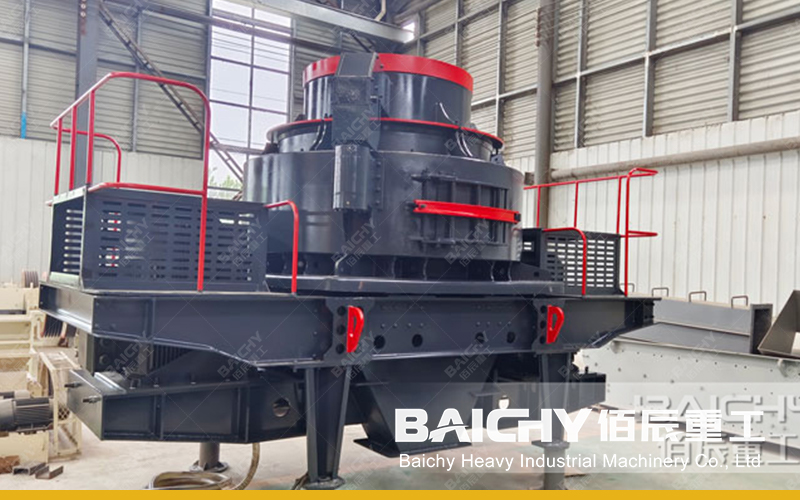

3. Sand Making and Shaping Tool: Impact Crusher (Vertical Shaft Impact Crusher)
◦ Role: The "finishing engineer" of the production line, responsible for turning small stones into manufactured sand.
◦ Working Principle: Utilizing the "stone-on-stone" or "stone-on-iron" principle, the high-speed rotating impeller accelerates and throws the material, causing it to collide and rub violently with surrounding materials or wear-resistant liners, thereby achieving fine crushing and shaping.
◦ Advantages: The finished sand particles are rounded and have a reasonable gradation, effectively improving concrete strength, making it the preferred equipment for producing high-quality manufactured sand.

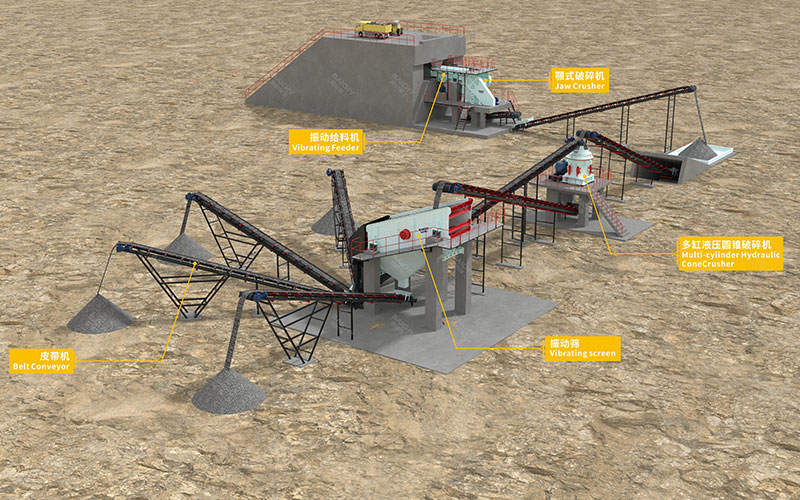

II. How to Configure an Efficient Gravel Crushing Production Line?

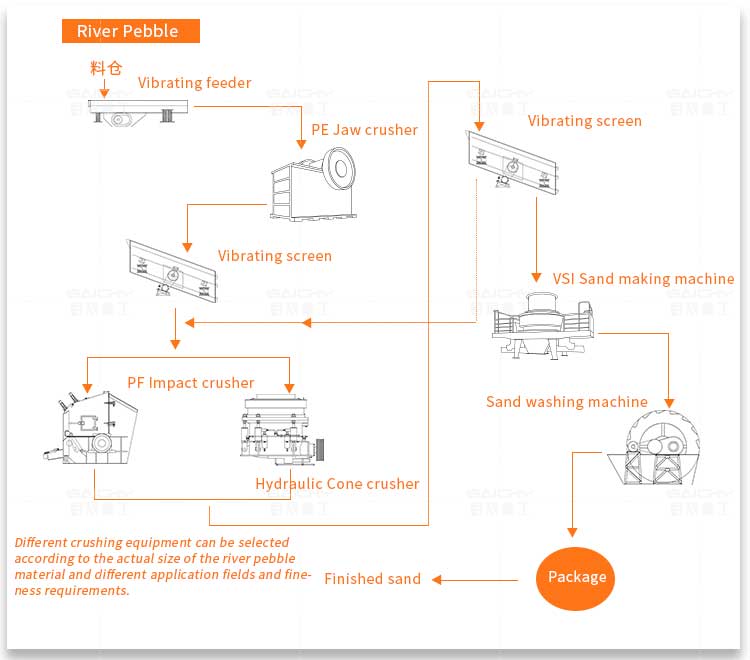

A typical gravel crushing production line process is as follows: Feeding → (Jaw Crusher) Coarse Crushing → (Cone Crusher) Medium and Fine Crushing → (Sand Making Machine) Sand Making and Shaping → (Vibrating Screen) Screening → Finished Product Bin
• Feeder: Evenly feeds gravel into the jaw crusher.
• Vibrating Screen: Classifies the crushed material according to different particle sizes; unqualified material is returned to the previous stage equipment for further crushing (closed-loop cycle).
• Belt Conveyor: Connects all equipment to form a complete production line.
III. Four Key Considerations for Purchasing Gravel Crushing Equipment
Faced with a dazzling array of equipment on the market, how to make an informed choice?
1. Consider Material Characteristics: Clearly define the hardness, particle size, and mud content of the gravel; this is the basis for equipment selection.
2. Consider production capacity requirements: Determine the equipment model and scale based on your production scale (100 tons per hour or 500 tons per hour?).
3. Consider finished product requirements: Is the final product high-grade aggregate for high-strength concrete or ordinary roadbed material? This determines whether a sand making machine and a strict screening system are needed.
4. Consider overall costs: Consider not only the initial purchase price of the equipment, but also its long-term energy consumption, wear resistance of vulnerable parts, and maintenance costs. A reliable and efficient piece of equipment yields higher overall benefits in the long run.
To do a good job, one must first have the right tools. Choosing the right gravel crushing and processing equipment is the cornerstone of a successful sand and gravel aggregate project. A thorough understanding of the working principles and applicable scenarios of various equipment, combined with scientific configuration based on your actual needs, is essential to maximizing the value of this high-quality resource and creating substantial economic benefits.
If you have plans for a gravel crushing project, please feel free to contact us. Our technical engineers will provide you with free material analysis, solution design, and equipment selection advice!
