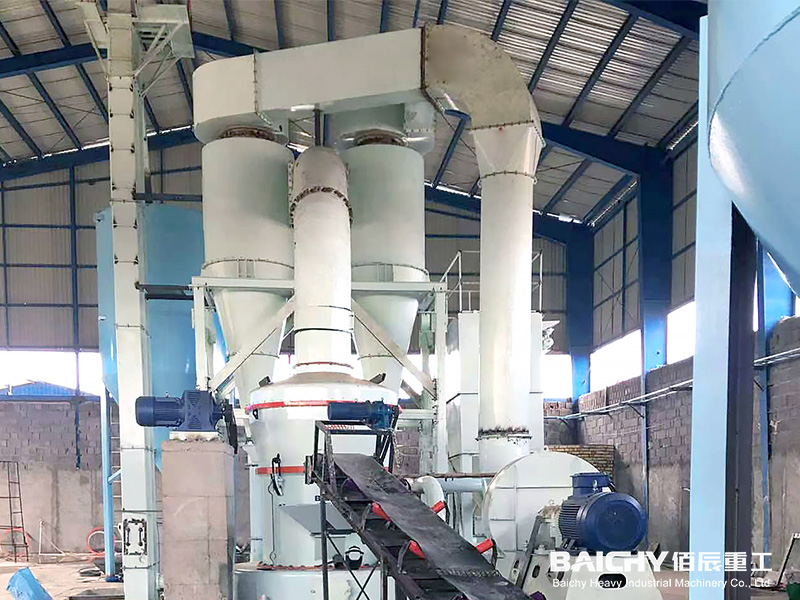

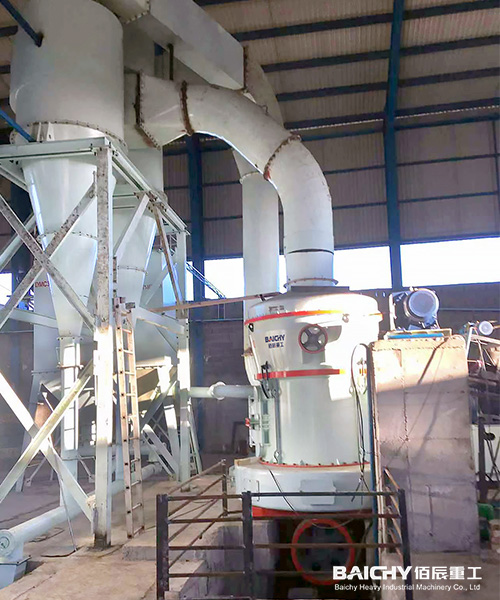

8-15t/h Manganese Ore Grinding Plant In Iran Share

The MTW138 is a new type of trapezium mill developed by Baichy Machinery through the introduction of European technology. It features high efficiency, energy conservation, environmental friendliness, and intelligent operation. It is particularly suitable for processing non-flammable and non-explosive mineral materials with a Mohs hardness of less than 9 and a moisture content of less than 6%.

• Client Requirements: Process manganese ore with a feed size of 200 mm; required finished product fineness of 200 mesh; output capacity of 5–8 tons/hour; the equipment must be energy-efficient, environmentally friendly, and operate stably.

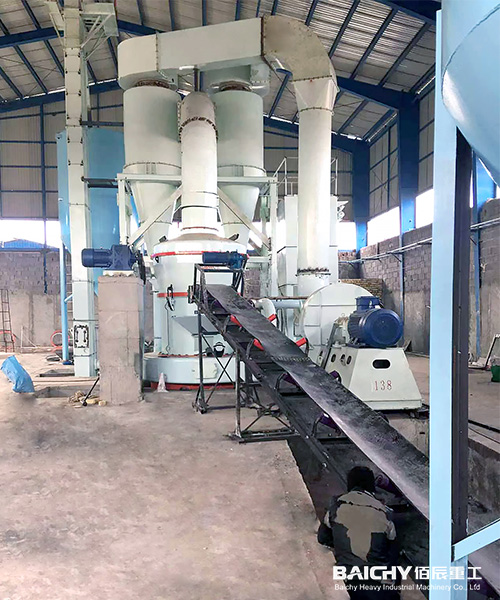

• Solution: A complete grinding production line centered around the MTW138 Trapezium Mill.

• Core Value: High efficiency, stability, and environmental compliance, meeting local production requirements in Iran.

Core Equipment Configuration List:

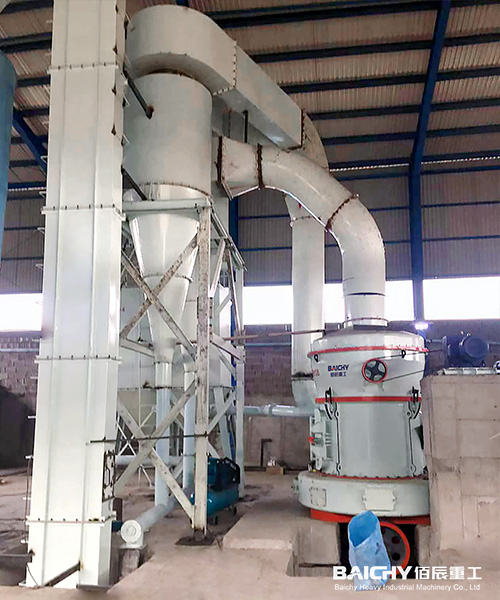

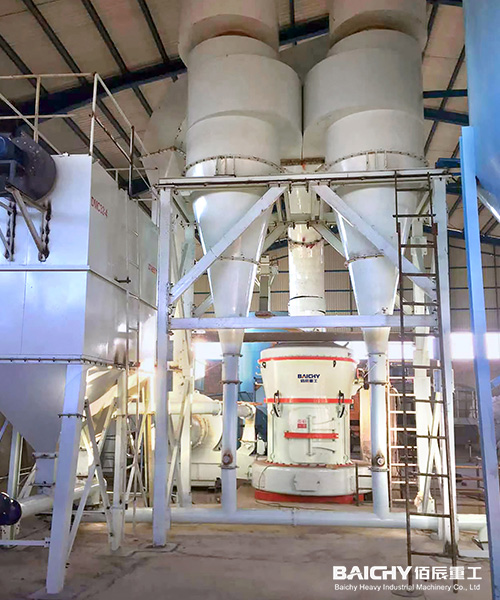

Core Grinding Unit: MTW138 Trapezium Mill

• Crushing Equipment: Jaw Crusher

• Feeding & Conveying: Electromagnetic Vibrating Feeder, Bucket Elevator

• Product Collection & Dust Removal: Pulse Bag Filter, Cyclone Collector, Piping System

Equipment Advantages

1. High Efficiency and High Output: Single-unit output capacity ranges from 3 to 55 tons per hour—a significant improvement compared to traditional Raymond mills.

2. Intelligent and Eco-friendly: Features a fully automated PLC intelligent control system, enabling centralized operation from a control room to minimize labor requirements; the integrated pulse dust removal system ensures emissions meet regulatory standards, fully complying with Iran's environmental protection policies.

3. Stable and Durable: Boasts a unique design featuring trapezoidal grinding rollers and rings; this configuration minimizes wear when processing medium-hardness materials—such as manganese ore—and ensures highly stable operation.

4. High Adaptability: Suitable for a wide variety of non-metallic minerals with a Mohs hardness of less than 9 and a moisture content of less than 6%; it is particularly effective for the efficient grinding of coarse-grained manganese ore found in Iran.
