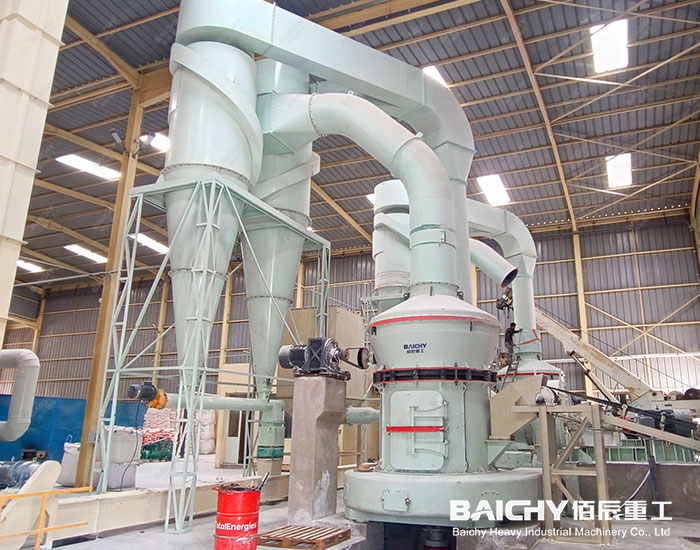

MTW175 Grinding Mill

MTW175 Grinding Mill

Capacity : 20-35t/h
Applied materials : It can process non-flammable and explosive mineral materials such as quartz, feldspar, calcite, talc, barite, fluorite, and other non-flammable and explosive mineral materials with Mohs's hardness below 9.3 and humidity below 6%.
Application scenario :MTW European Type trapezoidal mill (MTW Grinding Mill) is mainly used in mining, building materials, the chemical industry, metallurgy, coal, and other industries.

MTW European Type trapezoidal mill (MTW Grinding Mill) is a new type of mill. Compared with the traditional mill, it has incomparable advantages. This equipment uses a number of newer mill technologies in the country. The design is novel, the structure is reasonable, the floor area is small, the power consumption is low, the operating life is long, and the cost of wearing parts is low, and the cost performance is high.

  1. The trapezoidal grinding rollers and grinding rings that can improve the crushing efficiency are adopted. The grinding rollers and grinding rings of this machine are designed in a stepped shape, which reduces the sliding speed of materials entering between the grinding rollers and grinding rings, and prolongs the grinding of materials. Time, improve the crushing effect;
  2. Equipped with a high-density powder separator impeller that can improve the precision of powder selection. Practice shows that, under the condition of constant speed, increasing the density of the blades can increase the fineness of the finished product. In other words, when the fineness of the finished product does not need to be changed, the speed of the high-density impeller can be lower than that of the low-density impeller, which reduces the airflow resistance. Under the same power, the output of finished products is increased by more than 100%;
  3. Equipped with a high-efficiency energy-saving centrifugal fan. The traditional old-fashioned mill is equipped with an old-fashioned fan with straight blades, and the impeller and blades are all energy-saving induced draft fans stamped and formed by molds;
  4. The uniquely designed inwardly inclined air duct ensures that the materials entering the air inlet shell can smoothly fall into the mill along the inclined plane;
  5. Convenient and fast impeller adjustment device. The gap between the blade end of the classifier and the shell also affects the fineness of the finished product. The technology of this machine makes it convenient and fast to adjust the gap.

Application Process Diagram

MTW175 Grinding Mill
MTW175 Grinding Mill MTW175 Grinding Mill

Technical Parameters

Name Equipment Name Power(kw) Quantity
MTW175 Hosts Hosts 200 437 1
Fans 200
Analyzers 37
Auxiliary equipment PE250X750 22 1
Bucket elevator TH315 4 1
Vibrating feeder 0.45 1
Silo - 1
Electric control cabinet - 1

Host Parameters

Model MTW175
quantity 5
Grinding rollers Dimension(mm) Ф520x300
Grinding ring Dimension(mm) Ф1750x300
Rotational Speed(rpm) 75
Max feeding size(mm) <40
Finished product size(mm) 1.6-0.038
Capacity(t/h) 20-35
Overall Dimension(mm) 13500x11500x9500
Weight(t) 46
