Micro powder grinder, ultra fine grinding mill From Baichy Machinery

2024-03-13 11:17:36

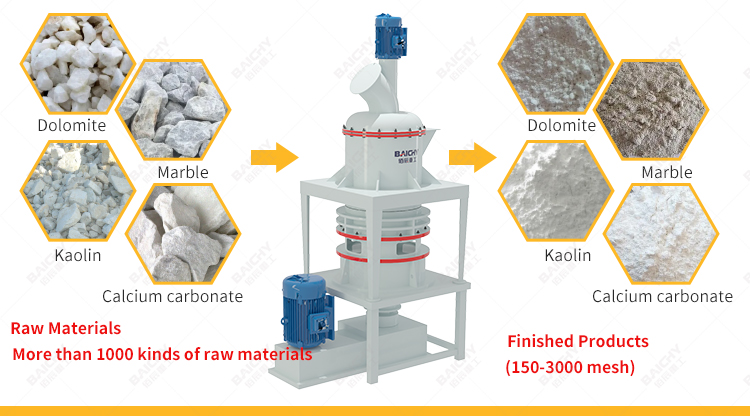

Micro-powder mill is an efficient grinding equipment, mainly suitable for grinding and crushing conventional materials. It can handle a wide variety of materials, including kaolin, limestone, calcite, talc, marble, barite, gypsum, iron oxide red, iron oxide green, aluminum hydroxide, pigments, bentonite, clay, and other non-toxic materials with a certain humidity range. Flammable and explosive materials. Micro-powder mills can process these materials into ultra-fine powder to meet the needs of different fields.

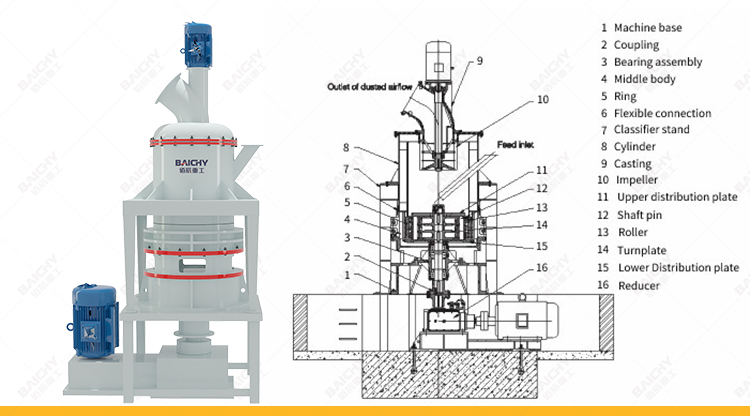

The working principle of the ultra-fine grinding mill is that after the material is crushed, it is sent to the main grinding chamber through a series of equipment, and is crushed and kneaded between the grinding roller and the grinding ring. At the same time, the fan blows the wind into the grinding chamber and blows the powder into the analyzer for air separation. The qualified fine powder enters the finished product cyclone powder collector with the airflow and is discharged from the discharge port after being separated from the air. During the grinding process, the grinding force of the micro-powder mill on the material is significantly increased under the action of the ultra-fine spring, thus improving the grinding efficiency.
Micro powder grinder has many advantages. First of all, compared with other mills, the grinding roller of the micro-powder mill has a greater grinding force on the material, thereby improving the grinding effect. Secondly, the micro-powder mill is energy-saving and efficient. Under the same output and fineness, its system energy consumption is lower. In addition, the micro-powder mill has fewer production links and can directly meet the processing requirements of ultra-fine powder at one time with a smaller feed particle size. At the same time, the dust removal effect of the micro-powder mill fully meets the national dust emission standards, ensuring a clean working environment.

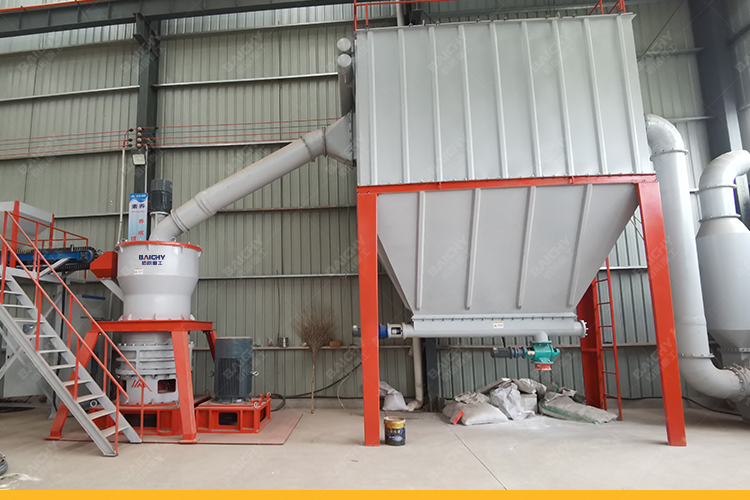

The complete configuration of the micro-powder mill includes a hammer crusher, bucket elevator, storage bin, vibrating feeder, micro-powder mill host, variable frequency classifier, double cyclone powder collector, pulse dust removal system, high-pressure fan, air compressor, Electrical control systems, etc., these devices work together to enable the micro-powder mill to achieve efficient, stable and continuous grinding operations.
In addition, for specific blast furnace slag powder grinding needs, such as 1000-mesh blast furnace slag powder, you can choose to use a three-ring medium-speed micro-powder mill. This equipment has a wide range of processing fineness and has the characteristics of vertical structure, a mature transmission system, good sealing, high environmental protection, and a high degree of intelligent automation. It is very suitable for large-scale, high-efficiency grinding operations.
The application fields of micro-powder mills are very wide, covering many important industrial fields. The following are its main application areas:
1. Ore processing and powdering: Micro-powder mills can process various stones into powder to meet different production needs. Whether it is for brittle ores such as calcite, quartz stone, dolomite, or other ore materials with a hardness below level 6, the micro-powder mill can effectively grind and crush them to achieve comprehensive utilization of resources.
2. Deep processing of coal: In terms of deep processing of coal, a micro-pulverizer uses a physical grinding method to grind coal into powder. It can not only effectively prevent the spontaneous combustion of pulverized coal, achieve the purpose of energy saving and environmental protection, but also meet the user's requirements for the fineness of pulverized coal and avoid Environmental pollution during the production process.
3. Building materials, chemical industry, metallurgy and other industries: Micron powder grinding also plays an important role in building materials, chemical industry, metallurgy, and other industries. It can be used to prepare various non-flammable, explosive, brittle, and low-hardness materials, such as talc, mica, gypsum, etc., providing high-quality raw materials for these industries.
4. Specific fields such as ceramics and pharmaceuticals: Ultrafine micro-powder grinding is a type of micro-powder grinding and its application is more precise. In the ceramic industry, ultrafine grinding can be used to prepare high-performance ceramic materials; in the pharmaceutical industry, it can be used to prepare drug particles to improve the bioavailability of drugs.
In general, the wide range of application fields of micro-powder mills reflects its important position in industrial production. With the continuous development of science and technology, micro-powder grinding technology is also constantly innovating and improving, providing stronger support for the development of various industries. Whether for large-scale production or high-precision grinding, micro-powder mills can provide efficient and reliable solutions.
