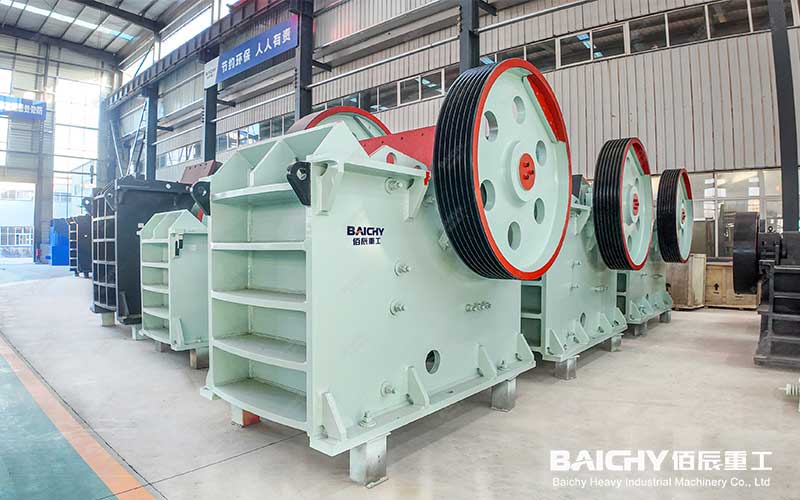

Energy-Saving Jaw Crusher
Why an Energy-Saving Jaw Crusher Matters
Electricity is the largest variable cost in any crushing plant, often reaching 30–40% of total operating expenses, and the primary crusher is one of the most power-hungry machines on site. That is why an energy-saving jaw crusher has become a business necessity for quarry owners, miners, and aggregate producers. A conventional crusher wastes energy through inefficient crushing cavities, oversized motors, and outdated drives. A modern energy-saving jaw crusher converts more input power into useful crushing work and less into heat, vibration, and mechanical loss — cutting kWh per ton and saving thousands of dollars each year.
At Baichy, our CJ-series jaw crusher is built on three promises: lower power consumption, higher throughput, and longer wear life.
What Makes a Jaw Crusher Energy-Saving
True efficiency comes from several design decisions working together, not a single label.
Optimized Crushing Chamber Geometry
A deep, symmetrical "V"-shaped chamber with an optimal nip angle lets the moving jaw grip and crush material effectively on every stroke. The result is more throughput per stroke, fewer idle strokes, and more even wear — extending jaw plate life by up to 30%. A poorly designed chamber forces re-crushing of oversized rock and silently multiplies energy use.
High-Efficiency Motors and Drive Systems
An energy-saving jaw crusher pairs with high-efficiency IE3 or IE4 motors that cut power draw by 15–25% versus older IE2 units. High-inertia flywheels store and release rotational energy to smooth peak demand, while optimized toggle speed and angle maximize crushing force with minimal motor load. VFD compatibility lets operators tune motor speed to feed volume and material hardness in real time.
Hydraulic Discharge Adjustment
Adjusting the discharge opening on conventional crushers means stopping the machine and manually shimming — hours of lost time. A hydraulic CSS system on a modern jaw crusher changes the gap in minutes from a control panel, without shutdown. Fewer stops mean more productive work and lower idle energy use.
Technical Parameters of Baichy CJ-Series Energy-Saving Jaw Crusher
Energy-Saving Jaw Crusher for Mining
Use the table below to compare models on feed size, capacity, and motor power. Exact values can be tuned to your material and required product size.
| Model | Feed Opening (mm) | Max Feed Size (mm) | Discharge Range (mm) | Capacity (t/h) | Motor Power (kW) | Weight (t) |
|---|---|---|---|---|---|---|
| CJ80 | 800 × 1060 | 680 | 80–180 | 160–350 | 110 | 28 |
| CJ96 | 930 × 1060 | 750 | 100–200 | 250–400 | 132 | 33 |
| CJ106 | 1060 × 1300 | 850 | 120–230 | 300–450 | 160 | 45 |
| CJ120 | 870 × 1200 | 780 | 70–200 | 400–500 | 160 | 52 |
| CJ125 | 1250 × 1400 | 1000 | 120–260 | 450–650 | 220 | 78 |
Choose a model whose capacity sits comfortably inside the range, keep your maximum feed below the stated limit, and consider a larger motor or slower speed for hard rock such as granite or basalt.
The Real Cost Savings
Consider a 250 t/h plant running 20 hours per day, 300 days per year — roughly 1.5 million tons annually. If a conventional primary draws 1.8 kWh/t and an energy-saving model cuts consumption by 18%:
Conventional power: 1.8 kWh/t × 1.5M t = 2,700,000 kWh/year
Energy-saving power: 1.47 kWh/t × 1.5M t = 2,205,000 kWh/year
Annual saving: ~495,000 kWh
At $0.10/kWh, that is $49,500 saved every year — before counting reduced downtime, lower wear-part costs, and a smaller carbon footprint. Most energy-saving models pay back their higher initial price within two years.
How to Choose the Right Energy-Saving Jaw Crusher
Match Capacity to Your Circuit
Do not oversize — a crusher below 50% rated capacity wastes energy per ton; an undersized unit chokes and draws excess current. Define your peak feed rate and select a model with 10–20% headroom.
Check Hardness and Feed Size
Material compressive strength and largest rock dimension decide the required feed opening. For high-hardness granite, basalt, or iron ore, choose a deep-chamber model with high manganese steel jaw plates. For soft limestone or recycled concrete, a lighter configuration may be cheaper.
Evaluate Total Cost of Ownership
Compare on energy cost per ton, wear-part life and price, maintenance simplicity, and after-sales support — not purchase price alone. Wear liners that last 30% longer halve replacement frequency.
Environmental and Compliance Benefits
The move toward green mines and lower emissions is reshaping the industry. An energy-saving design delivers a reduced carbon footprint, lower noise (around or below 80 dB(A)), cleaner dust-controlled operation, and easier compliance with energy-efficiency and green-mine standards — helping you win contracts that require certified sustainable suppliers.
Maintenance Best Practices
Monitor wear plates weekly — worn jaws widen the gap and spike energy use.
Check belt tension and alignment — a slipping belt wastes 5–10% of motor power.
Lubricate bearings on schedule to avoid higher current draw.
Keep feed uniform to prevent surge loads and power spikes.
Track kWh per ton monthly; a rising trend is an early warning of trouble.
Conclusion
An energy-saving design is not just greener — it is more profitable. By combining an optimized chamber, high-efficiency motors, hydraulic adjustment, and durable wear parts, Baichy's CJ-series machines cut power use by 15–20%, boost throughput, and extend wear life up to 30%. The result is lower cost per ton, faster payback, and a cleaner operation.
Contact Baichy Heavy Industry with your feed size, material hardness, and target capacity — our engineers will help you size the optimal energy-saving jaw crusher for your crushing circuit.

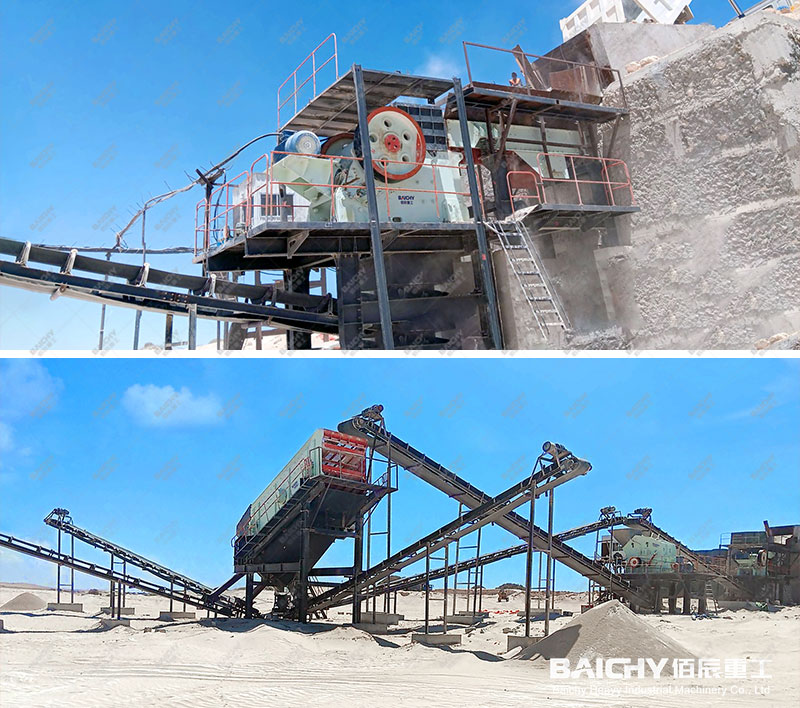

energy-saving jaw crusher
Frequently Asked Questions
1. How much energy does an energy-saving jaw crusher save?
A well-designed energy-saving jaw crusher typically cuts power consumption by 15–20% compared with conventional models. Combined with IE3/IE4 motors and optimized chamber design, this lowers cost per ton with a payback period usually under two years.
2. What materials can a jaw crusher crush?
A jaw crusher is the standard primary crusher for soft and hard ores with compressive strength up to 320 MPa, including granite, basalt, limestone, diabase, andesite, river pebbles, iron ore, ore tailings, and construction waste.
3. How is discharge size adjusted on a modern jaw crusher?
Modern units use hydraulic CSS (closed side setting) adjustment, changing the discharge gap from a control panel without shutdown. This reduces adjustment time from hours to minutes and eliminates idle energy use.
4. How often do jaw plates need replacing?
Jaw plate life depends on material hardness, feed size, and operation. With high-manganese-steel plates and a symmetrical chamber, a jaw crusher typically extends plate life by up to 30%, with many operators reporting six months or longer under normal conditions.
5. How do I select the right energy-saving jaw crusher model?
Match the model to your peak feed rate, maximum feed size, and material hardness using the parameter table, choosing 10–20% capacity headroom. For tailored sizing, contact Baichy's engineers with your feed characteristics and target product size.
