As a leading manufacturer of crushing and mining equipment, we understand that choosing the right crushing equipment for the job is paramount to operational efficiency and profitability. Among the toughest materials to process is basalt, a dense, abrasive, and high-strength volcanic rock. Selecting unsuitable machinery can lead to rapid wear, excessive downtime, and subpar product quality. This comprehensive guide will analyze the most effective basalt crushing solutions, their advantages, and application scenarios to help you make an informed decision.
Analyzing the Basalt Crushing Challenge
Before selecting crushing equipment, it's crucial to understand the material's properties. Basalt is known for its high compressive strength, abrasiveness, and high silica content. These characteristics present several challenges:
-
High Wear: The abrasive nature accelerates wear on crusher parts like mantles, concaves, and jaw plates.
-
High Crushing Force Required: Its density demands robust machinery capable of generating immense pressure.
-
Final Product Shape: Achieving a well-graded, cubical product is essential for high-value applications like concrete aggregate and railway ballast.
Therefore, the ideal basalt crusher must combine durability, high crushing power, and effective particle shaping capabilities.
Overview of Suitable Crushing Equipment for Basalt
A multi-stage crushing circuit is typically employed to process basalt efficiently. The primary stage reduces large raw rock, secondary stages further size the material, and tertiary/quaternary stages refine the product shape.
Primary Crushing: The First Break
The primary crusher handles the largest feed size directly from the quarry face.
-
Jaw Crusher: A robust and reliable choice. Its compressive crushing action is excellent for breaking large, hard basalt boulders. It offers high throughput and is relatively low-maintenance, making it a workhorse for primary basalt crushing.
-
Gyratory Crusher: For very high-capacity primary crushing stations, gyratory crushers are superior. They provide continuous crushing action and are ideal for large-scale mining operations with massive basalt deposits.

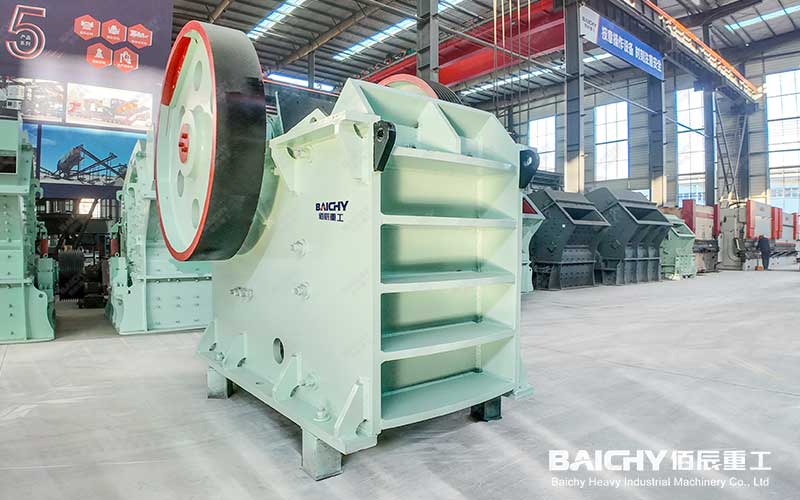

Jaw Crusher
Secondary & Tertiary Crushing: Shaping and Refining
After primary crushing, the material needs further reduction and shaping.
-

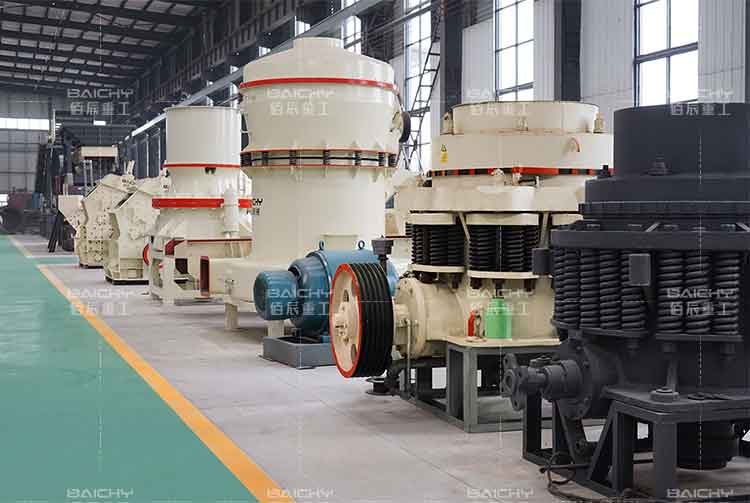

Cone Crusher: The most recommended equipment for secondary and tertiary basalt crushing. Modern cone crushers, especially those with hydraulic adjustment and clearing systems, excel at handling abrasive materials. They provide excellent reduction ratios and, crucially, produce a well-shaped, cubical end product. Their interparticle crushing action minimizes wear.
-

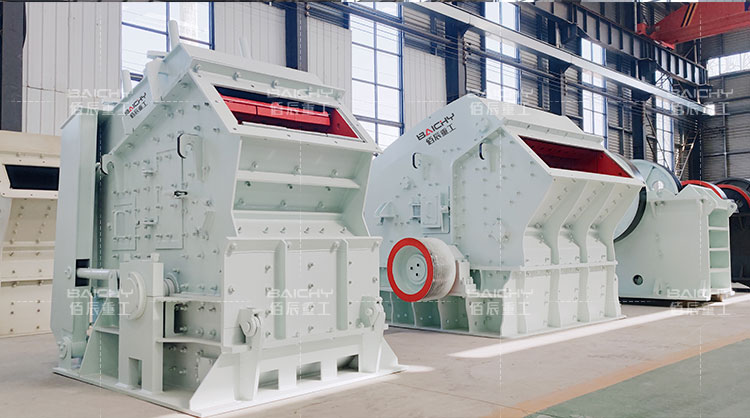

Impact Crusher: While capable, horizontal shaft impact crushers (HSI) may experience higher wear rates when processing highly abrasive basalt. They are better suited for less abrasive rock or for the final shaping stage where their ability to produce a cubicle product is leveraged, provided wear costs are managed.

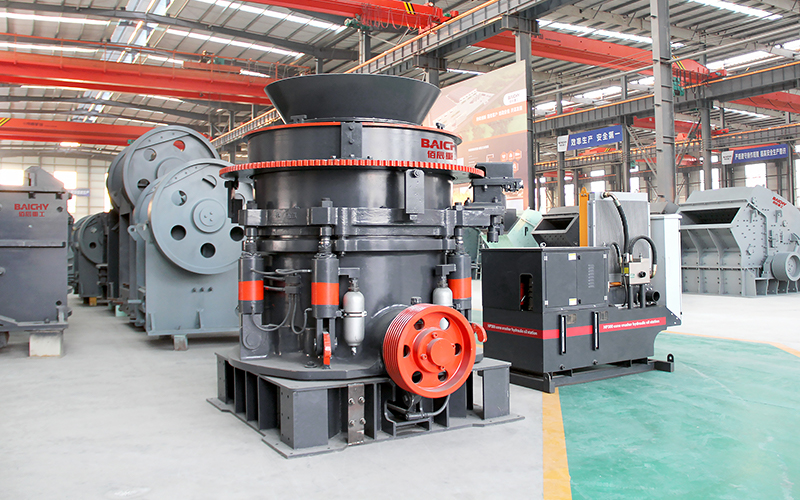

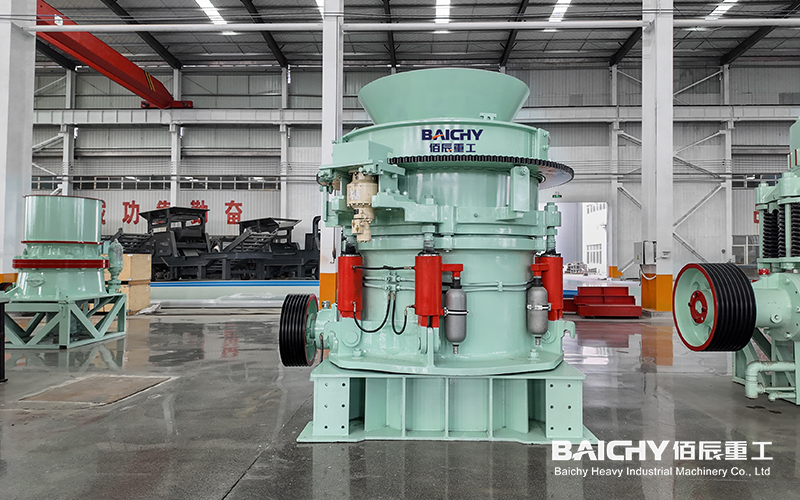

Hydraulic Cone Crusher

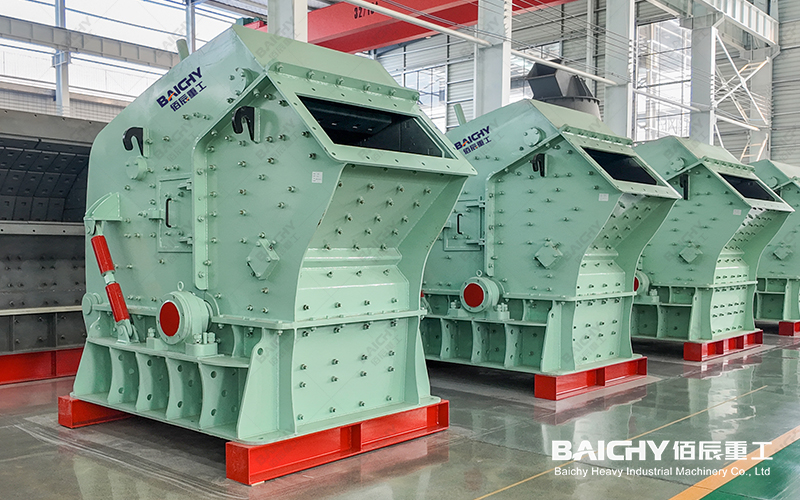

Impact Crusher
Key Advantages of Choosing the Right Basalt Crushing Circuit
Investing in a well-designed circuit with appropriate crushing equipment yields significant benefits:
-
Maximized Wear Life: Matching crusher type to material minimizes premature wear on liners and internal components, reducing operating costs.
-
Optimized Product Yield: Achieving the desired product shape and gradation in fewer stages increases the percentage of high-value, saleable material.
-
Enhanced Operational Efficiency: Reliable equipment with minimal unplanned downtime ensures consistent throughput and meets production targets.
-
Lower Total Cost of Ownership: Although initial investment is crucial, the right machinery reduces long-term costs associated with power consumption, maintenance, and part replacement.
Case Study: 500 TPH Basalt Aggregate Plant
A customer in Southeast Asia needed to produce high-quality aggregate for a major highway project. We recommended and supplied the following basalt crushing circuit:
-
Primary: Heavy-duty Jaw Crusher to handle 0-800mm raw basalt.
-
Secondary: Multi-cylinder Hydraulic Cone Crusher for reduction to 0-100mm.
-
Tertiary: Another Cone Crusher (with finer cavity) for final shaping to 0-31.5mm.
Result: The plant achieved a stable output of over 500 tons per hour. The final product exhibited excellent cubic shape and gradation, fully meeting the stringent project specifications for high-strength concrete. Wear part life on the cone crushers exceeded expectations, validating the equipment selection.
Recommended Equipment Portfolio for Your Basalt Quarry
Based on our expertise, we recommend considering the following types of crushing equipment for your basalt project:
-
C Series Jaw Crushers: For rugged primary duty with high uptime.
-
CH/CS Series Multi-Cylinder Cone Crushers: Our flagship for secondary/tertiary basalt crushing, offering superior particle shape, automation, and wear protection.
-
Complete Crushing & Screening Plants: We provide integrated plant design, ensuring all components from feeder to screen work in harmony for optimal basalt processing.

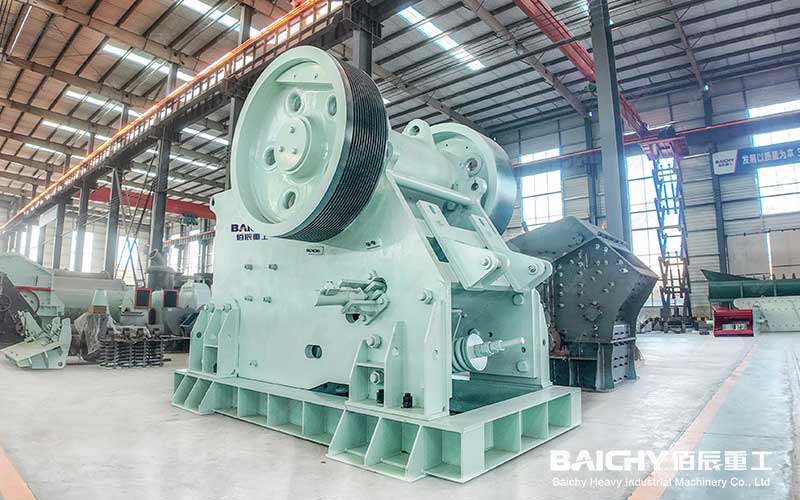

C Series Jaw Crusher
Hydraulic Cone Crusher
FAQ: Crushing Basalt
Q1: Can an impact crusher be used for crushing basalt?
A: While possible, it is not generally the most economical choice for the primary or secondary stage of highly abrasive basalt. Impact crushers experience faster wear on blow bars and aprons. They are sometimes used in the final stage where their excellent shaping capability is needed, but cone crushers are typically preferred for their better wear performance in basalt crushing.
Q2: How can I reduce wear costs when crushing basalt?
A: Key strategies include: 1) Choosing the right crusher type (prioritizing cone crushers), 2) Using modern, abrasion-resistant alloy liners, 3) Implementing proper maintenance and liner change-out schedules, and 4) Ensuring optimal feed distribution and crusher settings to avoid unnecessary wear.
Q3: What is the most important factor in achieving a cubical product from basalt?
A: The tertiary crushing stage with a cone crusher operating in a choke-fed condition is critical. Modern cone crushers utilize interparticle crushing (rock-on-rock) within the chamber, which is the most effective method for producing well-shaped, cubical particles from hard and abrasive materials like basalt.
