Among various industrial drying equipment, the single-drum rotary dryer has become the preferred drying solution for many industries due to its simple structure, convenient operation, and large processing capacity.
This article will provide you with an in-depth understanding of the working principle, performance characteristics, and key selection points of this classic piece of equipment.

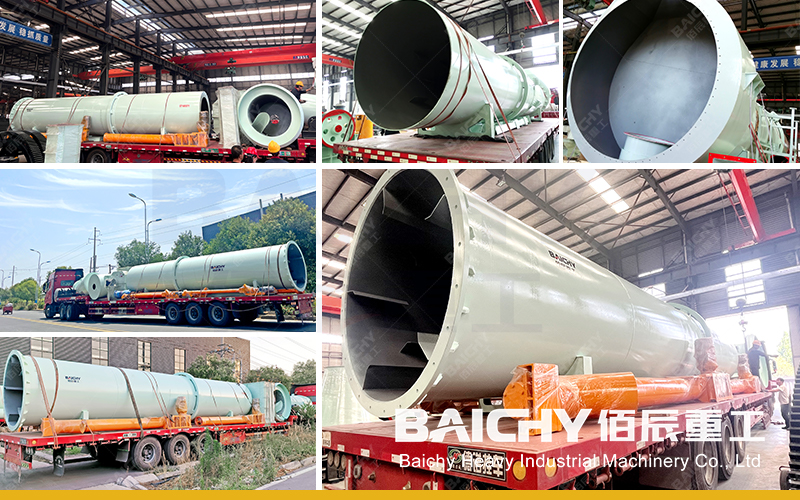

I. Core Structure of a Single-Cylinder Rotary Dryer
The single-cylinder rotary dryer mainly consists of the following components:
• Rotating cylinder: Made of high-quality steel, with lifting plates on the inner wall.
• Transmission device: Includes a motor, reducer, and gear transmission system.
• Support device: A support structure composed of support rollers and thrust rollers.
• Sealing system: Ensures no hot air leakage and improves thermal efficiency.
• Hot air system: Provides the heat source required for drying.
II. Unique Operating Advantages
1. High-efficiency drying:
• Material continuously tumbles inside the cylinder, ensuring full contact with hot air.
• Lifting plate design extends material residence time, improving drying efficiency.
2. Strong adaptability:
• Can handle materials with high moisture content.
• Suitable for various material forms such as granules and lumps.
3. Stable operation:
• Simple structure and low failure rate.
• Can operate continuously for 24 hours.
III. Main Application Industries
• Building materials industry: Drying of raw materials such as sand, slag, and clay.
• Chemical industry: Drying of fertilizers, salts, and chemical intermediates. Metallurgical Industry: Drying of ores, concentrates, and metal powders
• Environmental Protection Industry: Resource-based treatment of sludge and waste residue
IV. Selection Guidelines
1. Selection based on material characteristics:
• Initial and final moisture content requirements
• Material viscosity and heat sensitivity
2. Determining processing capacity:
• Amount of material to be processed per hour
• Drying process requirements (temperature, time, etc.)
3. Heat source selection:
• Selection of natural gas, oil, or steam based on site conditions
• Consideration of energy costs and environmental requirements
4. Equipment configuration:
• Cylinder material and insulation layer thickness
• Requirements for automation control
V. Operation and maintenance recommendations
• Check the transmission system and sealing devices before starting the machine
• Monitor key parameters such as temperature and pressure during operation
• Regularly clean the inner wall of the cylinder and the lifting plates
• Lubricate all moving parts on time Single-cylinder rotary dryers continue to play an important role in the industrial drying field due to their mature technology and reliable performance. Correct selection and standardized operation are key to ensuring efficient equipment operation. For more technical details or to obtain customized solutions, please consult our professional technical team.
