30-60t/h Combined mobile crusher plant

30-60t/h Combined mobile crusher plant

Capacity : 30-60t/h
Applications : Concrete and waste recycling, construction waste disposal, quarries, coal mining.
Materials :construction waste, iron ore, manganese ore, river pebbles, granite, limestone, river stones, aluminum ore, etc.

30-60t/h Combined mobile crusher plant


30-60t/h Combined mobile crusher plant Product advantages

  • The four-combination mobile station is independently combined according to the needs of coarse crushing, medium crushing, and fine crushing. It is economical and applicable, suitable for small and medium production. It is multi-integrated and fully automatic coarse and fine secondary crushing. According to the requirements of the customer's input particle size and output particle size, the jaw crusher is used as the primary crushing, and the secondary crushing is equipped with a cone crusher and an impact crusher. A total of eight models are available to meet the different needs of customer groups.

  • Outstanding advantages:

    1.The whole set of integrated units can be integrated into the whole vehicle to move, and the whole vehicle belt conveyor

    2.The independent unit completes the customer's demand for stone production

    3.Flexible mobility, strong adaptability, and flexible configuration

    4.Reduce material transportation costs

    5.The operation function is direct and effective

    6.Adaptable host device switching to meet the individual needs of customers

    7.Flexible and maneuverable parking function, quickly enter the working mode


Technical Parameters

Model MF1007E46
Transportation Size(mm) 14700x2400x4150
Weight(t) 40
Vibrating Feeder ZSW0725
Crusher1 PE400x600
Crusher2 PF1007
Vibrating Screen 3YK1237
Belt Conveyer Above Screen B500x4.5m
Belt Conveyer Under Screen B500x8m
Main Belt Conveyer B500X15m
Side Belt Conveyer B500X14m
Electric Control (Standard) control box + control panel
Support Leg (Standard) 4
Capacity(t/h) 30-60

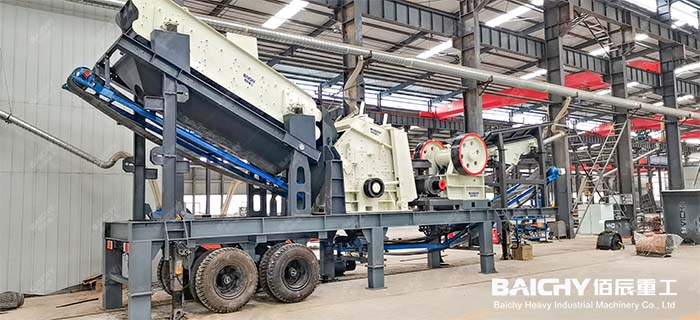

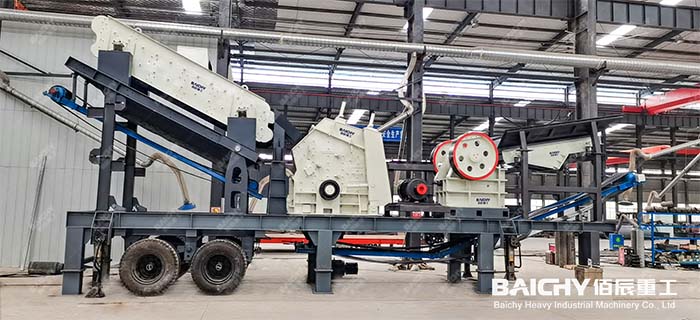

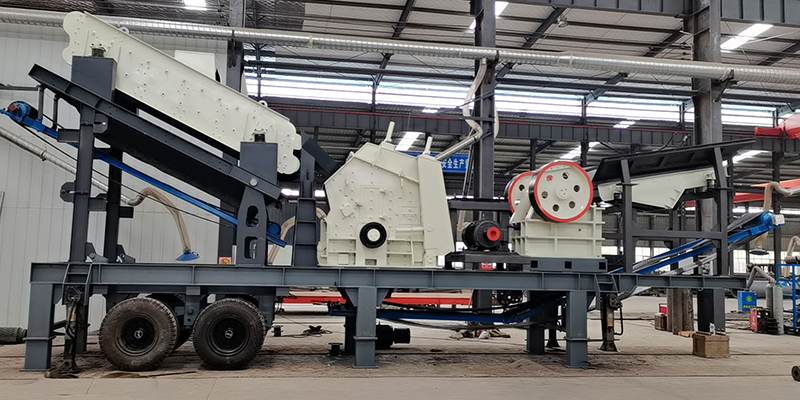

Product Images

30-60t/h Combined mobile crusher plant 30-60t/h Combined mobile crusher plant

Working Principle

Unit Interchange System

One type of body is common to 8 types of models, feeding unit interchange system, crushing unit interchange system, and screening unit interchange system, only need to reinvest the cost of single machine equipment, and in a short time, different types of equipment can be realized on the same body The interchangeable system of feeding unit, crushing unit and screening unit of the model, the matching between the various systems of the whole machine, adapt to a wider range of occasions, and the crushing function is stronger, and the customer's consumer goods are greatly reflected.

The combined mobile plant is on one mobile trailer to do crushing and screening which consists of a vibrating feeder, jaw crusher, cone/impact crusher, and vibrating screen. This four-in-one crushing plant is a reasonable circulation crushing system to crush stones with higher efficiency. When the mobile stone crusher plant works, the material goes evenly to the jaw crusher by vibrating the feeder. After primary crushing by the jaw crusher, the stone goes to the vibrating screen by the main belt conveyor.

During the screening, the first layer of unqualified material goes into a secondary crusher to be re-crushed. The qualified material from other screen layers is discharged to the finished product area. The output from the secondary crusher is discharged to the main belt conveyor for further screening. Thus. all material is in the circulation system of crushing-screening-re-crushing. The finished product could meet the client's demand greatly.
