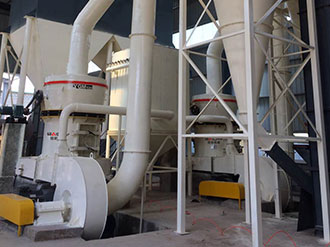

Dolomite grinding mill plant

Dolomite grinding mill plant

Dolomite grinding mill plant

Dolomite can be used in building materials, ceramics, glass and refractory materials, chemical industry and agriculture, environmental protection, energy saving and other fields. It is mainly used as a flux for basic refractories and blast furnace ironmaking; for the production of calcium magnesium phosphate fertilizers and for the production of magnesium sulfate; and as ingredients for the production of glass and ceramics.


Leave Message
If you have any questions,you can ask customer service online!
Process flow diagram

Dolomite grinding mill plant_dolomite powder mill

CRAFT
Parameter introduction
Equipment list PE250x750 Jaw crusher, T310 Bucket elevator, GZ-4 Vibrating feeder, Main shaft,
Air classifier, Pulse dust collector and etc
Raw materials Dolomite
Mohz hardness 2.5-4
Feeding size <210mm
Capacity 8-12tph
Output 200-425mesh
Application building materials, ceramics, glass and refractory materials, chemical industry and agriculture,
environmental protection industries and etc.
Grinding mill plant process introduction

Dolomite grinding mill plant_dolomite powder mill Dolomite grinding mill plant_dolomite powder mill Dolomite grinding mill plant_dolomite powder mill Dolomite grinding mill plant_dolomite powder mill

Grinding mill plant process introduction

The raw material is crushed by a jaw crusher then elevated into a hopper by bucket elevator, through the electromagnetic vibrating feeder evenly and continuously into the grinding chamber for powder processing. Finally, powder enters into an analyzer for separating under the function of the blower, the qualified fine powder goes to a cyclone collector and is discharged from pipes into a storage silo, unqualified powder drop back into the grinding chamber for re-grind.

The whole process is under negative pressure formed closed airflow loop. Cyclone collector bottom equips air valves, isolated outside air from inner air, and increases grinding efficiency heavily. Besides, few dust and air go up to a dust collector for pure, filter, more friendly for the environment.
Leave Message
Energy saving
Ceramic ball mill production line is optimized the matching of drive and grinding energy to maximize energy savings.
Easy to operate
Easy to operate.The whole process is automatically controlled by PLC to reduce labor to save cost.
Quality assurance
Different lining boards and grinding mediums are available for milling different materials, so as to guarantee the purity and whiteness of finished products.
Environmental friendly
Negative pressure production condition gives a good production environment, no dust and less pollution.
