Mobile stone crusher is a multi-functional machine that can crush various stones from large ones to smaller ones. BAICHY offers a wide range of mobile stone crushers, both tracked and wheeled, to help you process rock in the toughest conditions.
A mobile stone crusher is a heavy-duty machine designed to break down large rocks, concrete, and construction waste into smaller, reusable aggregates. Unlike traditional stationary crushers, these units are mounted on wheels or tracks, allowing them to be easily transported between job sites.
Before buying, consider these factors:
✔ Material Hardness: Jaw crushers for hard rocks, impact crushers for softer materials.
✔ Production Capacity: Match the crusher’s output to your project needs.
✔ Mobility Requirements: Tracked for off-road sites, wheeled for easy transport.
✔ Fuel Efficiency: Diesel vs. electric models (hybrid options available).
✔ After-Sales Support: Choose a supplier with reliable maintenance services.

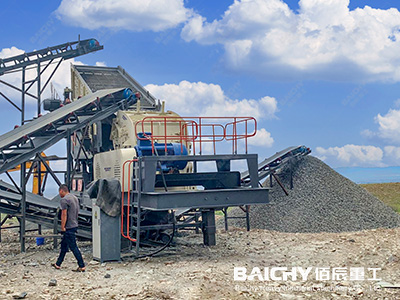

Kyrgyzstan Customer Site
PE600x900 Jaw Crusher
Zimbabwe Customer Site
PE600x900 Jaw Crusher
In today’s fast-paced construction, mining, and demolition industries, efficiency and mobility are key. A mobile stone crusher is a game-changing machine that allows operators to crush rocks, concrete, and other materials directly on-site, eliminating the need for costly transportation and reducing project timelines.
Whether you're a contractor, quarry operator, or recycling specialist, investing in a high-quality portable stone crusher can significantly boost productivity while cutting operational costs. In this blog, we’ll explore:
✔ Mobile Cone Crusher Vs Mobile Jaw Crusher, How To Choose?
✔ How To Choose A Suitable Mining Stone Crusher?
✔ Key Points In Designing Sand And Gravel Aggregate Production Line
Mobile stone crusher can crush granite, limestone, basalt, marble, sandstone, river pebbles, bluestone, iron ore, copper ore, lead-zinc ore, coal gangue, construction waste, etc.; mobile crusher can crush a wide range of stone types, covering almost all common types of rocks and ores, as well as waste such as construction waste.
• Feeding: The stone is evenly fed into the feed port of the crusher through a vibrating feeder or manual assistance.
• Pre-screening (optional): Some equipment is equipped with a pre-screening device to screen out fine particles or impurities in advance to improve crushing efficiency.
• Primary crushing: After the stone enters the crushing chamber, the high-speed rotating rotor drives the hammer (or jaw plate, impact plate, etc.) to impact and squeeze the stone to crush it into smaller particles.
• Secondary crushing (optional): Some equipment uses multi-stage crushing (such as impact + cone combination) to further refine the stone.
• Screening cycle: The crushed material is sorted by a built-in screen (such as a vibrating screen), and the qualified particles are discharged, and the unqualified particles return to the crushing chamber for further crushing (closed-loop circulation system).
• Discharging: Crushed stones that meet the particle size requirements are discharged through the discharging port and transported to the designated stacking area by a belt conveyor or dump truck.
• Dust removal: Some equipment is equipped with a spray system or bag dust collector to reduce dust pollution.
Model | SMC600 | SMC750 | SMC900 | SMC1060 | SMC1200 | SMC1300PEX |
Transport size | ||||||
Length(mm) | 8600 | 9600 | 11097 | 13300 | 15800 | 9460 |
Width(mm) | 2520 | 2520 | 3759 | 2900 | 2900 | 2743 |
Height(mm) | 3770 | 3500 | 3500 | 4440 | 4500 | 3988 |
Alex weight(kg) | 10121 | 14500 | 21380 | 38430 | 64000 | 14730 |
King pin weight(kg) | 5118 | 7500 | 10890 | 19450 | 34000 | 10490 |
Jaw crusher | ||||||
Model | PE | PE | PE | PE | PE | PEX |
Feed opening(mm) | 400X600 | 500X750 | 600X900 | 750X1060 | 900X1200 | 300X1300 |
Discharging hole setting range(mm) | 40-100 | 50-100 | 65-180 | 80-180 | 95-225 | 20-90 |
Capacity(t/h) | 15-60 | 40-110 | 90-180 | 110-380 | 220-450 | 30-105 |
Feeder | ||||||
Feed hopper volume | 3 | 4 | 7 | 10 | 10 | 3 |
Hopper width | 2200 | 2500 | 3000 | 3000 | 3000 | 2200 |
Model | ZSW6520 | ZSW8530 | ZSW9638 | ZSW1142 | ZSW1349 | ZSW8530 |
Belt conveyor | ||||||
Model | B650X6 | B800X7 | B1000X8 | B1000X11 | B1200X13 | B1000X7 |
