SKJ jaw crusher

As high-end product, SKJ series European jaw crusher is generally suitable for primary and secondary crushing stage.

100-1200mm
Feed Size
75-220KW
Motor Power
100-1200 t/h
Capacity
24 hours consultation
+86-15093222637
SKJ jaw crusher
100-1200mm
Feed Size
75-220KW
Moter Power
100-1200 t/h
Capacity
*24 hours consultation
+86-150932226
60S Quick response
30 min Technical reply
24h design proposal
365 days to receive service needs
PRODUCT FEATURES
Product features

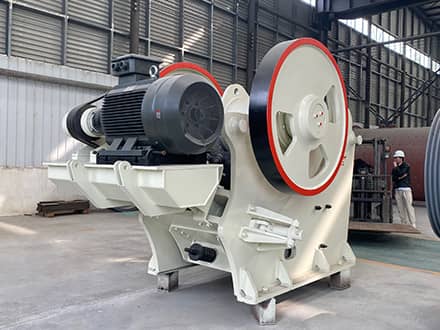

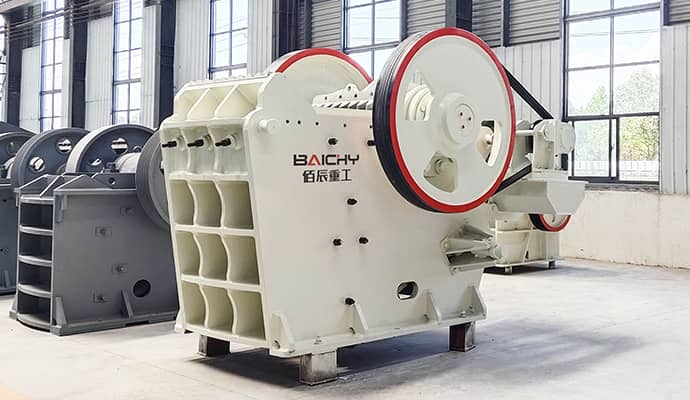

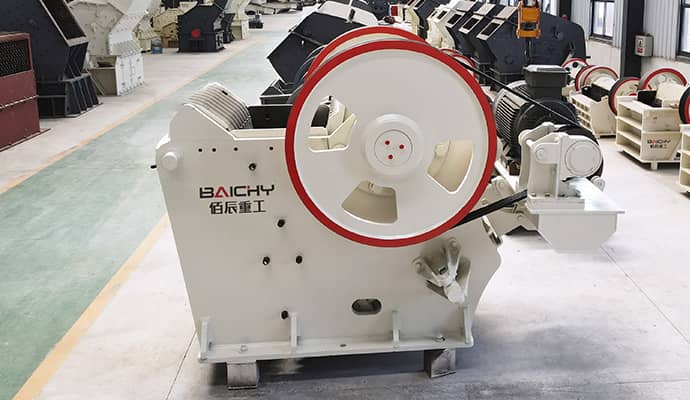

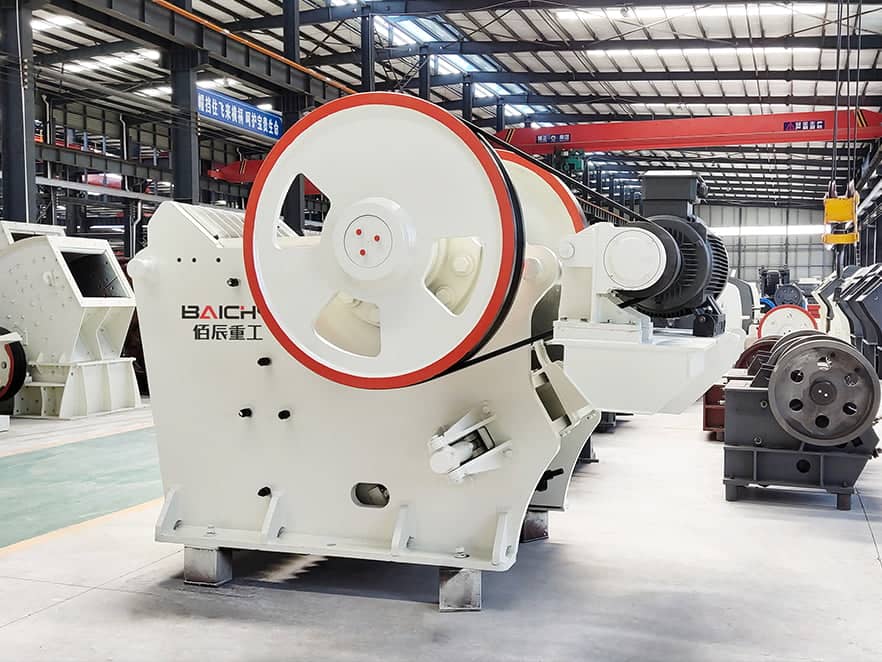

SKJ Series Jaw Crusher is the top choice to crush hard, strong-corrosive materials with unique structural design, working performance, service life, and maintenance. The motor is set on the machine body, which can reduce occupied space effectively.
Stable Performance

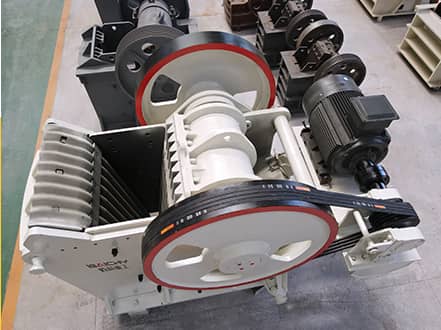

Motor is set on the machine body, which can effectively reduce occupied space, and make it easy to operate and repair.
Quality Assurance

Bearing with larger specifications and higher bearing capacity is used. The perfect seal of the movable jaw’s bearing chamber makes a good performance.

Optimal Design
The Crusher chamber adopts a “V” structure, which ensures the actual feeding complies with the nominal one and the product’s technical parameters reach the upper limit.
Differentiated design

Finite element analysis technology is adopted to make the crusher stronger. Environmental friendly design helps you realize low carbon.

APPLICATION
Application
With high-quality steel casting and overwhelming reliability, the SKJ jaw crusher is wide as a primary crusher to crush hard stone, rock, granite, andesite, quartz, limestone in the sand, gravel, aggregates, or mineral processing industry.
Applicable materials
Stone crusher is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate, etc. Different final output sizes could meet your different needs.
Messages
Leave Message
Working principle
Working principle

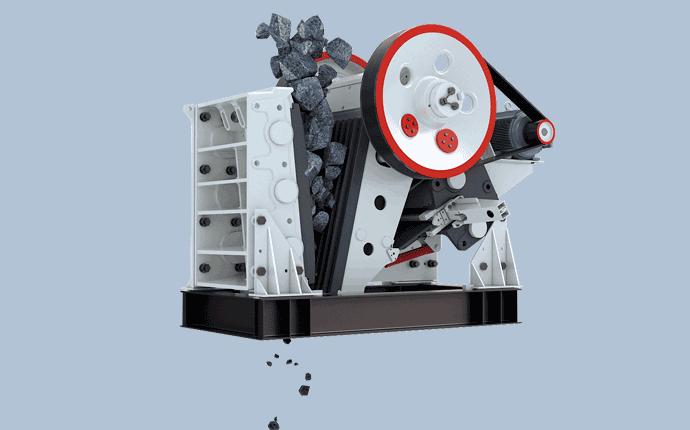

The motor drives movable jaw assembly do reciprocating motion according to the desired trajectory under the action of belt and pulley. The angle between toggle plate and movable jaw increases when movable jaw moves up and the movable jaw closes to the fixed jaw. The materials are crushed in this process. The angle between toggle plate and movable jaw decreases when movable jaw moves down and movable jaw moves away from fixed jaw under the action of the tension rod and spring, then products after being crushed are discharged from the discharge opening.

How does jaw crusher work?
Whatsapp:+86-15093222637
Specification
*The output will vary according to different materials, feed particle size and other factors
Model Feeder Opening Size(mm) Max. Feeding Size (mm) Discharging Opening Size(mm) Capacity (t/h) Motor Power (kw) Overall Dimension (mm)
SKJ6310 630×1000 580 80-180 100-230 75 3763×2280×2644
SKJ8711 870×1100 720 85-220 130-450 110 4124×2480×3020
SKJ1113 1100×1300 960 120-260 260-780 160 4836×2762×3489
SKJ1216 1200×1600 1180 165-320 450-1200 220 6700×4040×4465
