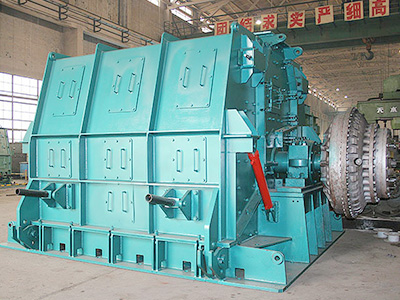

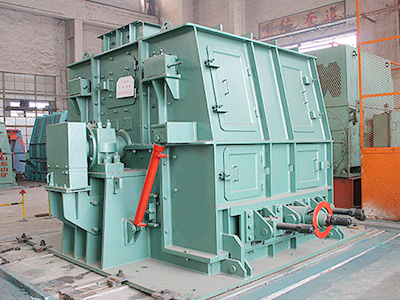

Reversible Hammer Crusher

The reversible hammer crusher is named after the rotor can rotate in both directions. It is one of the crushing equipment for crushing limestone, coal, or other brittle materials below medium hardness in metallurgy, building materials, the chemical industry, hydropower, and other industrial fields.

Feed Size
Motor Power
Reversible Hammer Crusher
Feed Size
Moter Power
*24 hours consultation
60S Quick response
30 min Technical reply
24h design proposal
365 days to receive service needs

Product features

The reversible hammer crusher overcomes the blockage problem caused by the high humidity of the material, improves the utilization rate of the hammer head, reduces the replacement frequency of the hammer head, and ensures the uniformity of the output particle size, high output, and low operating cost.

Easy to use

Product size can be adjusted easily by;

• Changing rotor speed.

• Changing gap setting between hammer and grinding path liner.

• Using always the new face of a hammer by the reversible rotor.

High Grinding Capability

The desired product can be obtained because;

• Coarse particle in the product is reduced by many numbers of grinding path liners.

• Fine particle in the product is reduced by the low fan effect of zigzag hammer alignment.

Easy Maintenance

• Multi-sectional welded housing allows easy access to every partition and quick exchange of worn parts.

• Hammers are always operated with sharp edges. And high utilization of the hammer head with continuous operation is achieved by reversible

Stable Operation

The low fan effect of zigzag hammer alignment achieves stable operation with the;

• Low noise

• Low vibration

• Low de-dusting volume



The reversible hammer crusher is a crushing equipment for crushing limestone, coal, or other brittle materials below medium hardness in metallurgy, building materials, the chemical industry, hydropower, and other industrial fields.
Applicable materials
Coking coal, small limestone, gypsum, alum, bricks, and tiles, etc. Therefore, the compressive strength and surface moisture content of crushed materials are prohibited to exceed 150MPa and 15% respectively.
Leave Message
Working principle

Working principle

Reversible hammer crusher is a new type of crushing equipment, general configuration by crusher main engine, motor, torque limiting hydraulic coupling, liquid opening device. The spindle and hammer handle are forged with 42CrMo alloy steel. The hammer head and village plate are cast with high wear-resisting alloy. Because it is different from the design concept of ordinary crusher, the structure of the large rotor, short pin shaft, reversible rotary combination hammer, has the advantages of large impact, easy operation and maintenance, low operation cost. PCK series reversible hammer crusher, used for crushing brittle materials with medium hardness of ore compressive strength not more than 150Mpa (1500 kg/square cm), such as coal, limestone, gypsum, soft refractory materials, etc.



*The output will vary according to different materials, feed particle size and other factors
Model Rotor Size(mm) Feed Size(mm) Finished Size(mm) Production Capacity(t/h) Power(kw)
PCK0808 φ800×800 ≤60 ≤15mm 25-40 90
PCK1010 φ1000×1000 ≤80 35-70 110
PCK1012 φ1000×1250 ≤80 70-90 132
PCK1212 φ1250×1250 ≤100 90-120 220
PCK1214 φ1250×1400 ≤100 120-150 250
PCK1416 φ1400×1600 ≤120 160-250 355
PCK1418 φ1400×1800 ≤120 250-300 400
PCK1618 φ1600×1800 ≤140 280-350 560
