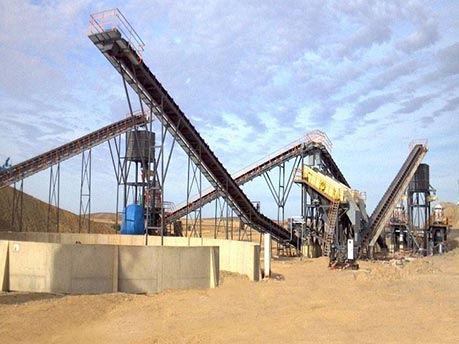

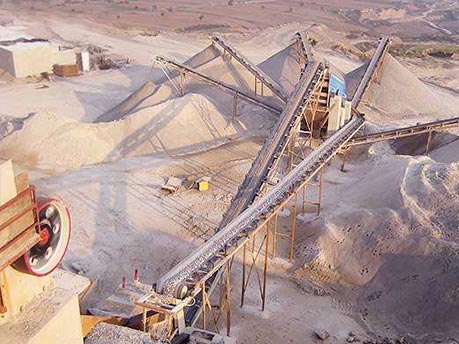

150-220tph Sand making plant

Raw materials: More than 120 kinds of ore materials such as limestone, granite, basalt, Riverstone, and rocks.




Equipment configuration



Hopper, ZSW1100x4200 vibrating feeder, PE750x1060 jaw crusher,HPC300/CS220 cone crusher (or impact crusher), VSI1145 sand making machine, Vibrating screen, Sand recycling machine, Belt conveyor.



Raw materials



Limestone, Granite, Basalt, Quartz, River stone etc.



Feed Size



Less than 630mm



Capacity



150-220t/h



Finished product



Fine sand 0.25-0.35mm, medium sand 0.35-0.5mm, coarse sand 0.5mm



Application



In sand quarry, mine, construction site, highway, road and bridge construction, concrete mixing station, water conservancy and hydropower, chemical industry and other industries.



Advantages



High production efficiency and low operating cost; Multi-functions and Flexible application; Good shape of finished sand and fineness is adjustable.



Production line related products

If you can't find other products, please contact customer service If you can't find other products, please contact customer service

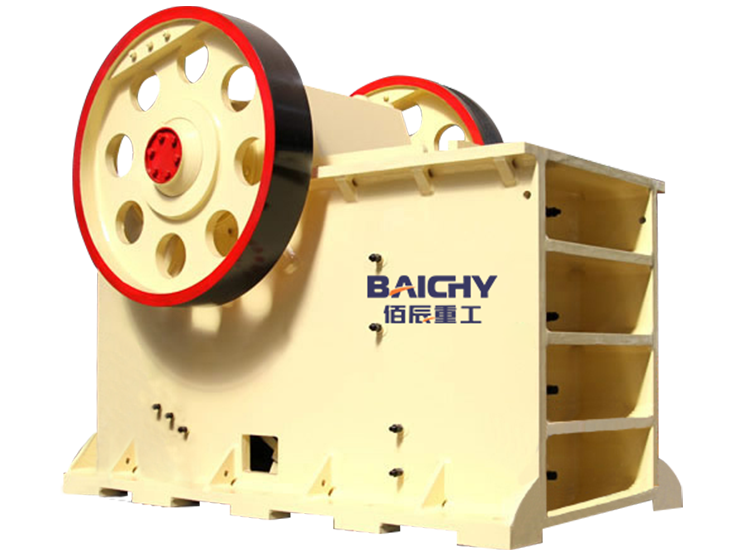

C Series Jaw Crusher
C Series Jaw Crusher
C series jaw crusher is a jaw crusher with excellent performance introduced and developed by Baichen Heavy Industry according to the market demand. Compared with traditional jaw crushers, it has significant improvements in motion parameters, structural forms, and adjustment methods.
Symons Cone Crusher
Symons Cone Crusher

Symons Cone Crusher is widely used in the metallurgical industry, construction materials industry, road building industry, chemical industry, and silicate industry. It is suitable to crush ores and rocks with medium hardness and medium hardness above. It has features of strong crushing force, reliable structure, high efficiency, high capacity, low operating cost, easy adjustment, economical to use, and so on.

Spring Cone Crusher
Spring Cone Crusher

Spring cone crushers are generally used in the medium and fine crushing links of mine crushing, and are mainly used in the secondary crushing and tertiary crushing links in metal mines and construction sandstone processing. Because of their strong crushing capacity and large output, they are more used in the Crushing of hard materials.

Riverstone Crusher_Sand Gavel Crusher_Sand Making Machine Riverstone Crusher_Sand Gavel Crusher_Sand Making Machine Riverstone Crusher_Sand Gavel Crusher_Sand Making Machine

150-220tph Sand making plant introduction:
The sand and gravel production line are generally called the sand-making production line, which is a production line equipment for the production of construction sand and gravel. It can make rocks, crushed stones, river pebbles, basalt, granite, and other materials into various particle sizes that meet the requirements of construction sand.

The finished sand has uniform grains and high compressive strength, which is far superior to natural sand and ordinary hammer sand. The finished sand of this production line is more in line with the construction requirements and can improve the construction quality.

The sand and gravel production line are defined according to the type of output. The finished products include stone production and artificial sand production, so it is also called the sand and gravel production line. It is equivalent to a combination of a stone production line and a gravel production line. In raw material factories such as road construction and construction, a sand and gravel production line are often needed. The sand and gravel production line equipment can meet the requirements of producing stone and artificial sand at the same time.

The primary crushing used in the 150-200tph gravel production line is a PE750x1060 jaw crusher

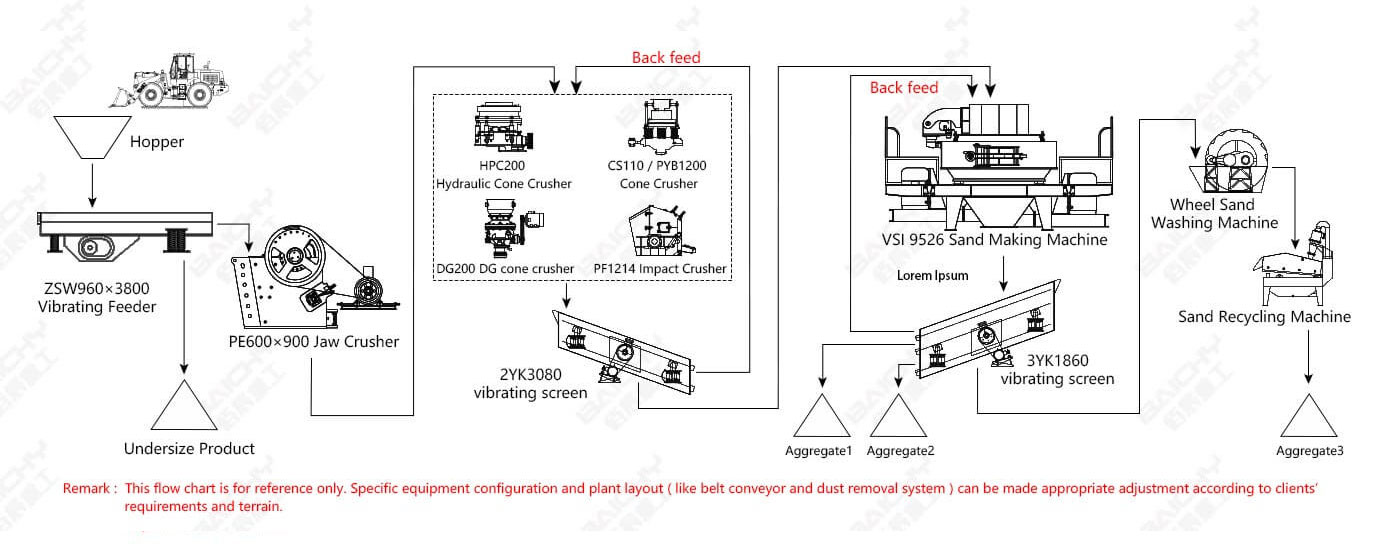

Jaw crusher, the jaw crusher crushes the stone in sections, the stone coming out of the jaw crusher is less than 70mm, and then transported to the impact crusher through the belt conveyor for secondary crushing, and the crushed material is sent by the belt conveyor Transport to the sand making machine for fine crushing (note: the raw ore below 40mm can be directly crushed by the sand making machine), and the crushed material is then screened by a circular vibrating screen for coarse sand, medium sand, fine sand, and other specifications.

Hydraulic cone crushers, Simmons cone crushers, DG cone crushers, and impact crushers can all be used as secondary crushing equipment, and we can choose corresponding equipment models according to different outputs.

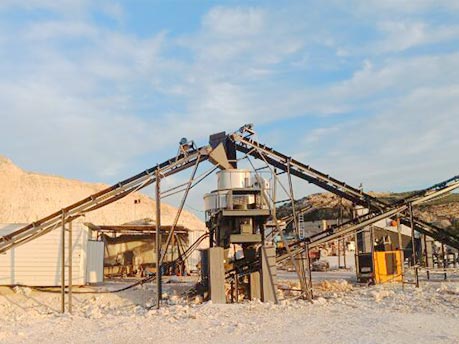

As a sand shaping equipment, VSI sand making machine can adjust the size of the discharge port according to the needs of customers to obtain better quality products, and finally, sieve different discharge particle sizes through sieves to obtain the final product.

For sand with strict powder content requirements, a sand washing machine can be installed behind the fine sand, and the sewage discharged from the sand washing machine can be recycled through a fine sand recycling machine. On the one hand, it reduces environmental pollution, and on the other hand, it increases sand production. quantity.
